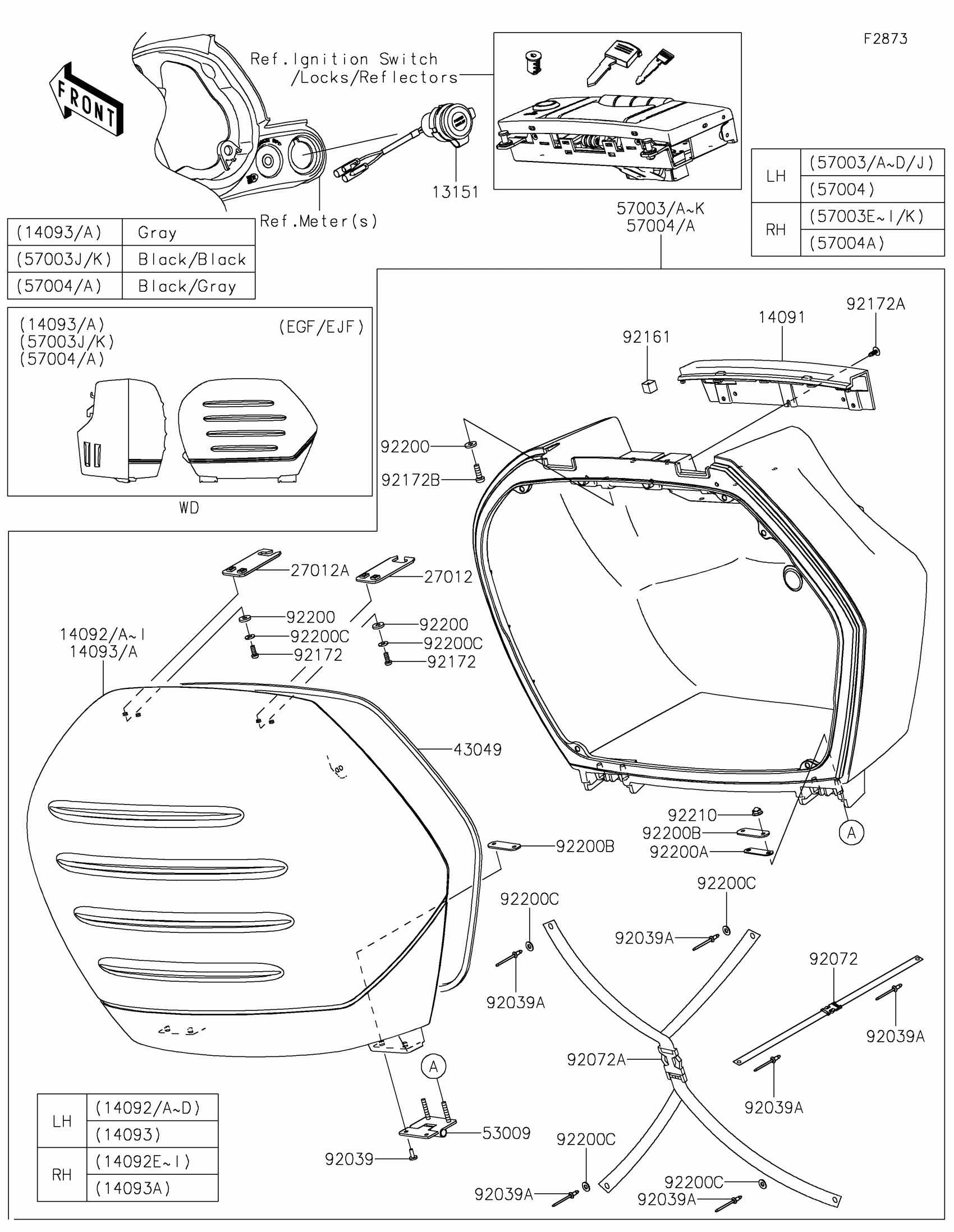

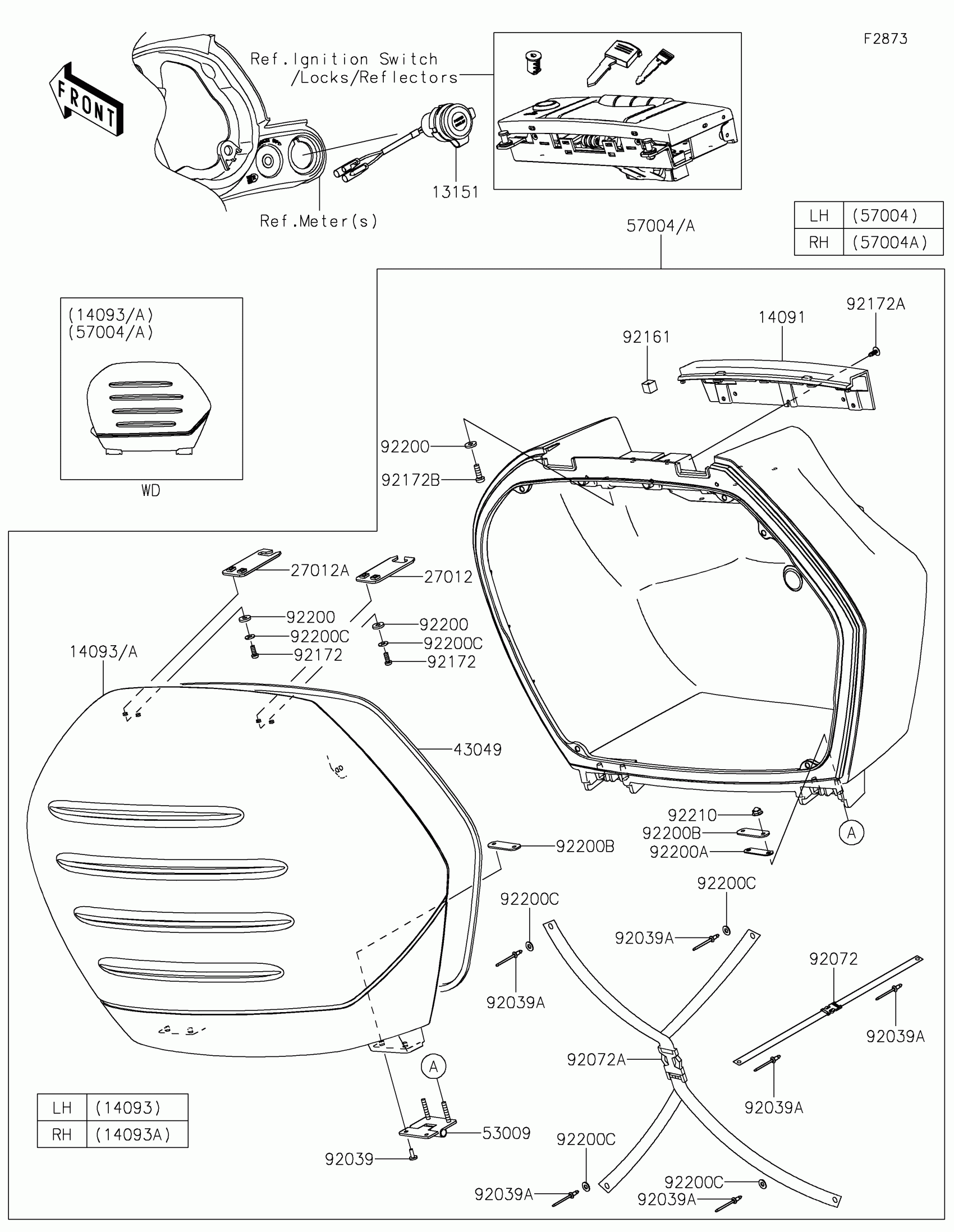

Kawasaki CONCOURS®14 ABS Saddlebags Diagram

Description

Price

13151

SWITCH-COMP

13151-0040

$144.21

14091

COVER,SIDE BAG,LID

14091-1688

$145.88

14092C

COVER,SIDE BAG,LH,M.M.F.SILVER

14092-0122-60S

$530.18

14092H

COVER,SIDE BAG,RH,M.M.F.SILVER

14092-0123-60S

$484.83

27012

HOOK

27012-0110

$21.51

27012A

HOOK

27012-0111

$21.51

43049

PACKING

43049-0010

$16.19

53009

HINGE

53009-0020

$27.61

57003D

BAG-ASSY,LH,F.BLACK+SIL

57003-0101-62R

$729.50

57003I

BAG-ASSY,RH,F.BLACK+SIL

57003-0102-62R

$729.50

92039

RIVET

92039-0063

$2.09

92039A

RIVET

92039-0072

$3.59

92072

BAND

92072-0082

$23.39

92072A

BAND

92072-1368

$50.77

92161

DAMPER

92161-0573

$3.64

92172

SCREW,4X12

92172-0303

$1.88

92172A

SCREW,4X8

92172-0306

$1.88

92172B

SCREW,5X15

92172-0493

$1.49

92200

WASHER,5MM

92200-0373

$1.88

92200A

WASHER

92200-0374

$3.64

92200B

WASHER

92200-0375

$3.64

92200C

WASHER

92200-0416

$1.62

92210

NUT,CAP,4MM

92210-0434

$2.15
