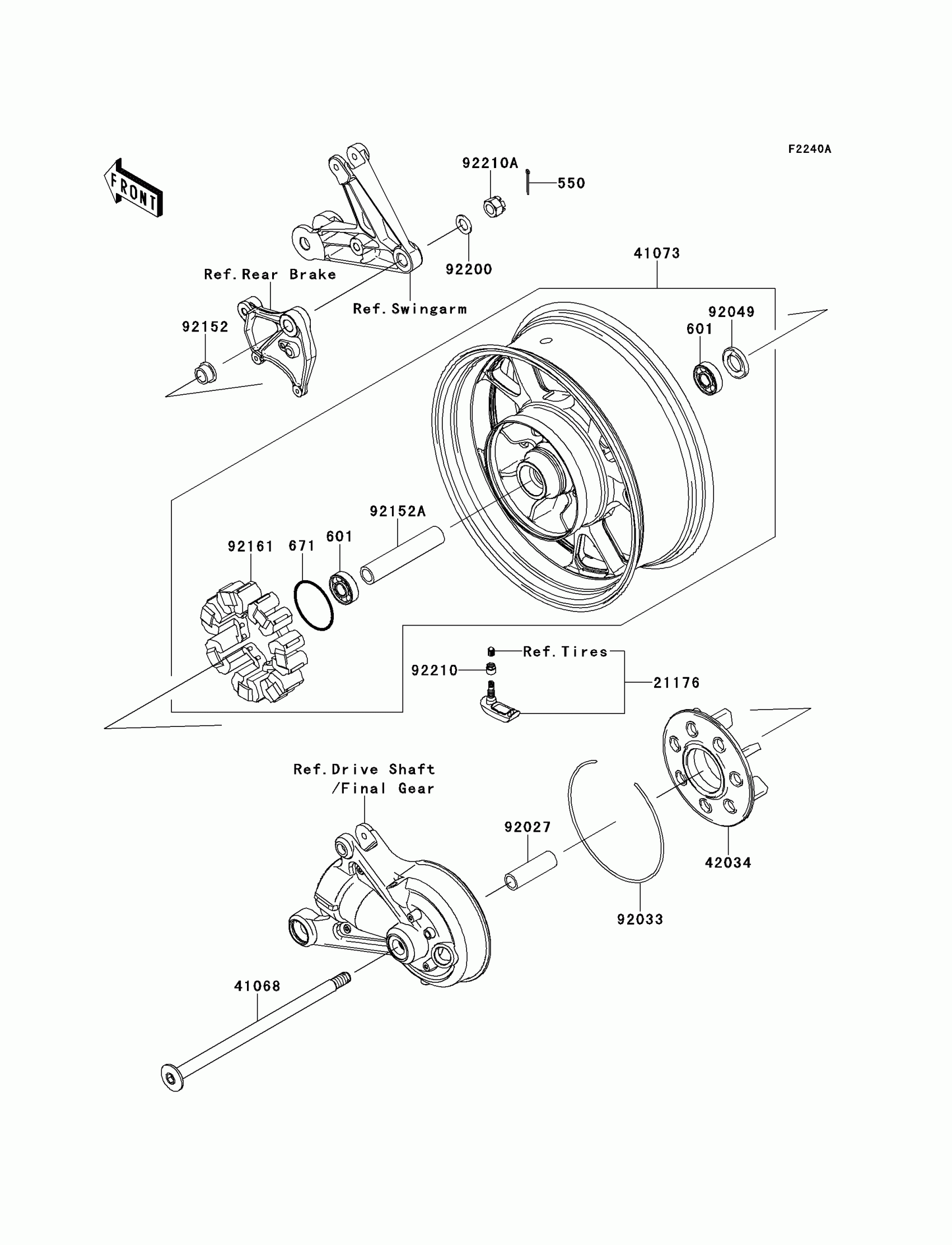

Kawasaki CONCOURS® 14 ABS Rear Wheel/Chain(CEF) Diagram

Description

Price

550

PIN-COTTER,4.0X35

550AA4035

$1.81

601

BEARING-BALL,#6304UUC3

601B6304UU

$31.60

671

O RING,80MM

671B2580

$5.45

21176

SENSOR,TPMS 315MHZ

21176-0748

$270.39

41068

AXLE,RR

41068-0060

$135.61

41073

WHEEL-ASSY,RR,G.BLACK

41073-0594-18F

$1,084.22

42034

COUPLING,RR HUB

42034-0002

$283.07

92027

COLLAR,20.2X28X89

92027-1553

$30.75

92033

RING-SNAP,220MM

92033-0012

$16.81

92049

SEAL-OIL,27X52X5

92049-0723

Unavailable

92152

COLLAR,RR AXLE,RH,L=17

92152-0105

$19.31

92152A

COLLAR,RR HUB,L=151

92152-0494

$39.94

92161

DAMPER,SHOCK,RR HUB

92161-0409

$32.07

92200

WASHER,19X32X2.6

92200-1489

$1.56

92210

NUT

92210-0836

$10.68

92210A

NUT,CASTLE,18MM

92210-1134

$7.49
