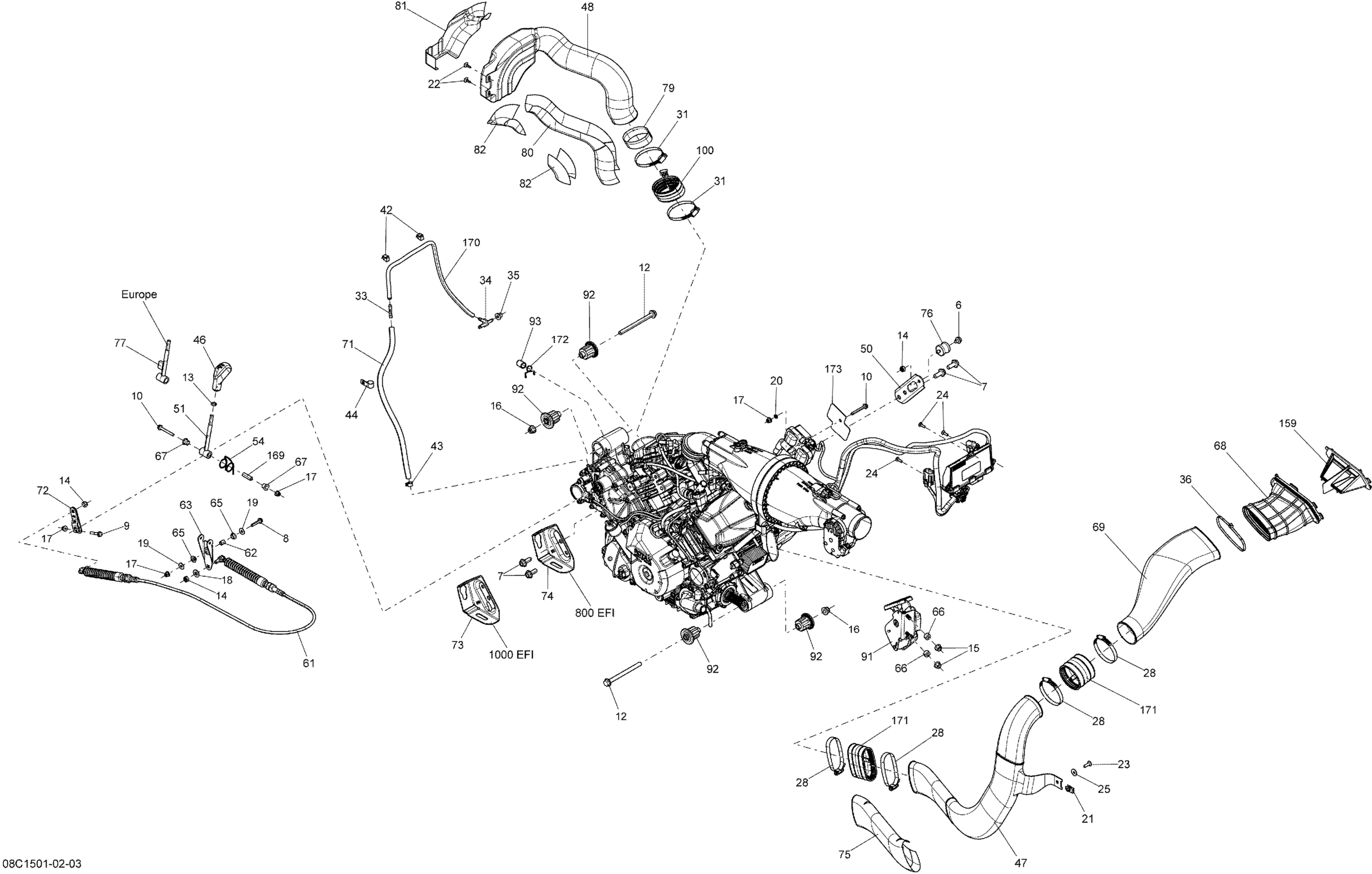

Can-Am Commmander 1000_LTD, 2015 Engine _08C1503 Diagram

#

Description
Price

6

Flange Screw M8 x 10, Scotch Grip

207581046

Unavailable

7

Hex. Flange Screw M10 X 25

207602544

Unavailable

8

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

9

Hex. Flange Screw M6 X 35

207663544

$0.74

10

Hex. Flange Screw M6 X 50

207665044

Unavailable

12

Hex. Flange Screw M10 X 125

230602546

Unavailable

13

Hex. Jam Nut M8

232180491

Unavailable

14

Hex. Elastic Stop Nut M8

232581414

Unavailable

15

Hex. Flange Nut M8

233081416

Unavailable

16

Hex. Flange Elastic Nut M10

233201436

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

18

Flat Washer 10 mm

234001410

Unavailable

19

Flat Washer 6 mm

234062410

$0.64

20

External Serrated Lock Washer 6 mm

234461608

Unavailable

21

Panel Nut M6 X 1.0

250100198

Unavailable

22

Screw M4 X 16

250000725

Unavailable

23

Torx Screw M6 X 20

250000722

Unavailable

24

Torx Screw K50 X 16

250000720

$1.39

25

Flat Washer

250200082

Unavailable

28

Norma Clamp

293650091

Unavailable

31

Norma Gear Clamp

293650118

Unavailable

33

Straight Fitting

293710039

Unavailable

34

Y-Fitting

293710059

Unavailable

35

Grommet

293720029

Unavailable

36

Tie Wrap 368 mm

293750008

$0.85

42

Clip

414227300

$1.45

43

Spring Clamp

414415200

$0.83

44

Open Clamp

518321570

Unavailable

46

Lever Handle

707000284

$18.43

47

Air Inlet

707000639

$18.43

48

CVT Air Outlet

707000640

Unavailable

50

Upper Engine Bracket

707000707

$5.54

51

Upper Lever Arm

707000711

$36.89

54

Lever Arm Spring

707000750

$2.75

61

Shifting Cable

707000775

$64.58

62

Bushing

707000801

$2.48

63

Lower Lever Arm

707000828

$16.89

65

Flanged Bushing

707000847

$1.00

66

Bushing

707000848

$1.08

67

Flanged Bushing

707000869

$2.20

68

Adaptor

707000908

$36.89

69

Primary Air Intake

707000909

$23.05

71

Hose

219704549

Unavailable

72

Lever

707000911

Unavailable

73

Cable Support | Engine 1000

707000919

$15.22

74

Not Available As Spare Parts

XXX

Unavailable

75

Reflective Sheet

707000924

$32.28

76

Rubber Isolator

707000949

Unavailable

77

UPPER LEVER ARM - Call your local BRP dealership | Europe

707000978

$69.97

79

Reflector

707000988

$4.98

80

Reflective Sheet

707000989

$29.97

81

Reflective Sheet

707000990

$15.35

82

Reflective Sheet

707000991

$9.29

91

Accelerator Pedal

707001166

$281.51

92

Vibration Damper

707001169

Unavailable

93

Plug

707001185

Unavailable

100

Adaptor

707001274

Unavailable

159

CVT Filter

707001344

$14.75

169

Bushing

707001376

$4.22

170

Polyurethane Hose 10000Mm Long

219704410

Unavailable

171

Flexibale Adaptor

707002585

Unavailable

172

Retainer Clip

707800506

Unavailable

173

Insulator Pad

710000073

Unavailable
