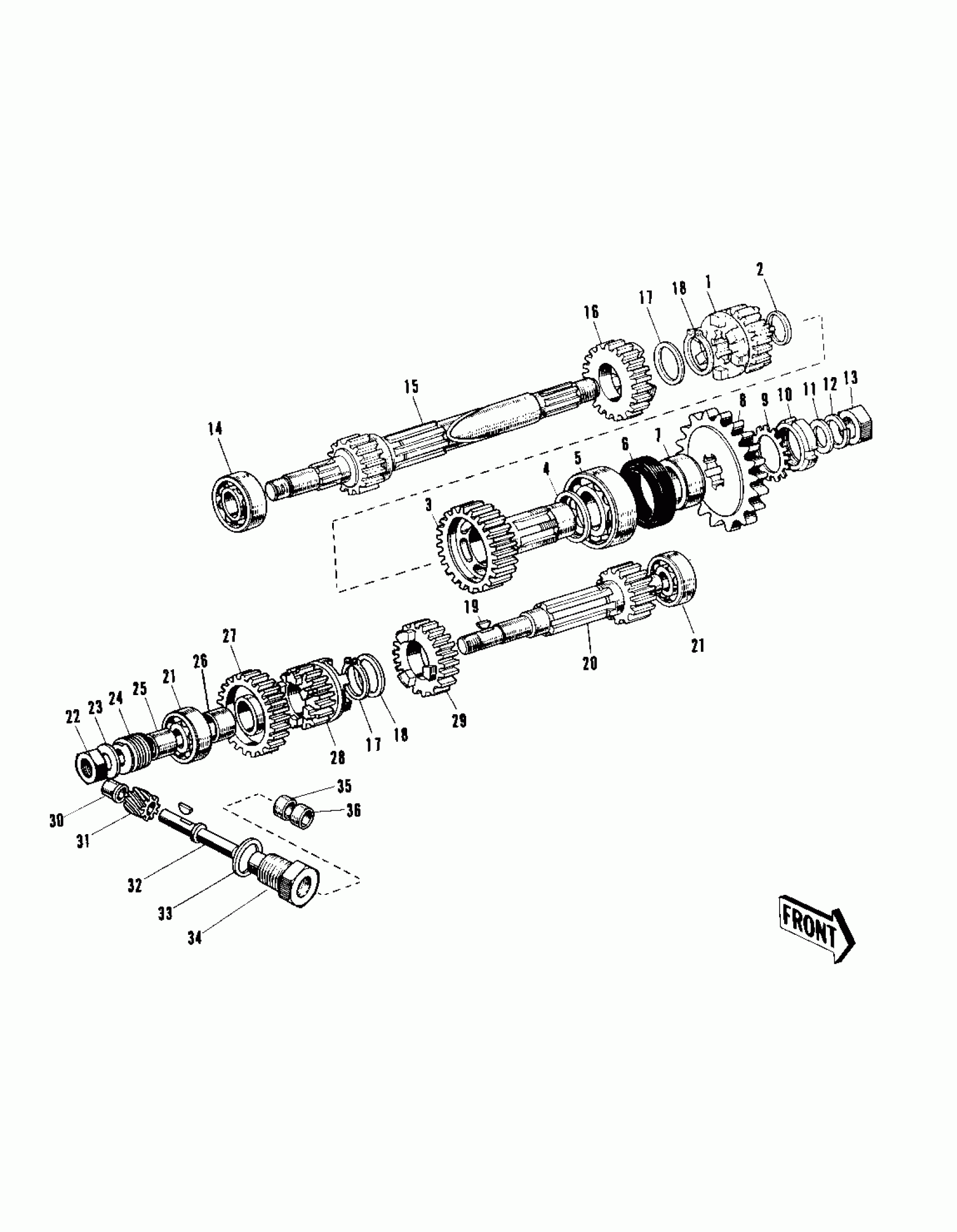

Kawasaki Commander TRANSMISSION (E/NO. W2M 001-) Diagram

#

Description
Price

1

2ND GEAR DRIVE SHAFT

13130-012

Unavailable

2

WASHER TOP GEAR THRST

92026-041

$2.98

3

TOP GEAR DRIVE SHAFT

13136-018

Unavailable

4

SPACER TOP GEAR

92026-039

$3.00

5

BEARING BALL #6206N

92045-006

$10.63

6

OIL SEAL SC405465

92050-018

Unavailable

7

SPACER ENG SPROCKET

92027-042

$6.69

8

ENGINE SPROCKET 19T

13144-021

Unavailable

9

WASHER LOCK 30MM

92032-001

$1.42

10

NUT 30MM

92015-011

$3.44

11

WASHER MAIN SHT THRST

92026-040

$6.71

12

WASHER SPRING 16MM

461E1600

$1.07

13

NUT 16MM

92015-029

$2.88

14

BEARING-BALL,#6204

601A6204

$12.07

15

SHAFT DRIVE

13127-015

Unavailable

16

UNAVAILABLE IN PRICE BOOK

13132-010

$85.13

17

WASHER 28MM

92022-103

$0.58

18

CIRCLIP-TYPE-C,28MM

480J2800

$3.73

19

WOODRUFF KEY SPD GEAR

92038-006

$1.20

20

SHAFT OUTPUT

13128-016

Unavailable

21

BEARING-BALL,#6302C3

601B6302

$8.80

22

NUT-HEX-FINE,14MM

315B1400

Unavailable

23

WASHER SPRING 14MM

461F1400

Unavailable

24

UNAVAILABLE IN PRICE BOOK

13224-002

$28.41

25

SPACER SPEED PINION

92027-043

$2.46

26

WASHER MAIN SHT THRST

92026-017

$3.37

27

LOW GEAR OUTPUT SHAFT

13129-020

Unavailable

28

3RD GEAR OUTPUT SHAFT

13133-010

Unavailable

29

2ND GEAR OUTPUT SHAFT

13131-014

Unavailable

30

BUSH SPEED GEAR SHAFT

92028-084

$6.90

31

GEAR SPEEDOMETER

13225-001

Unavailable

32

SHAFT SPEED GEAR

13226-001

Unavailable

33

GASKET SPD GR HOUSING

92065-032

$0.30

34

HOUSING SPEED GEAR

13227-001

Unavailable

35

OIL SEAL VB8178

92053-005

Unavailable

36

SPACER SPEED GEAR SHT

92027-044

$1.49
