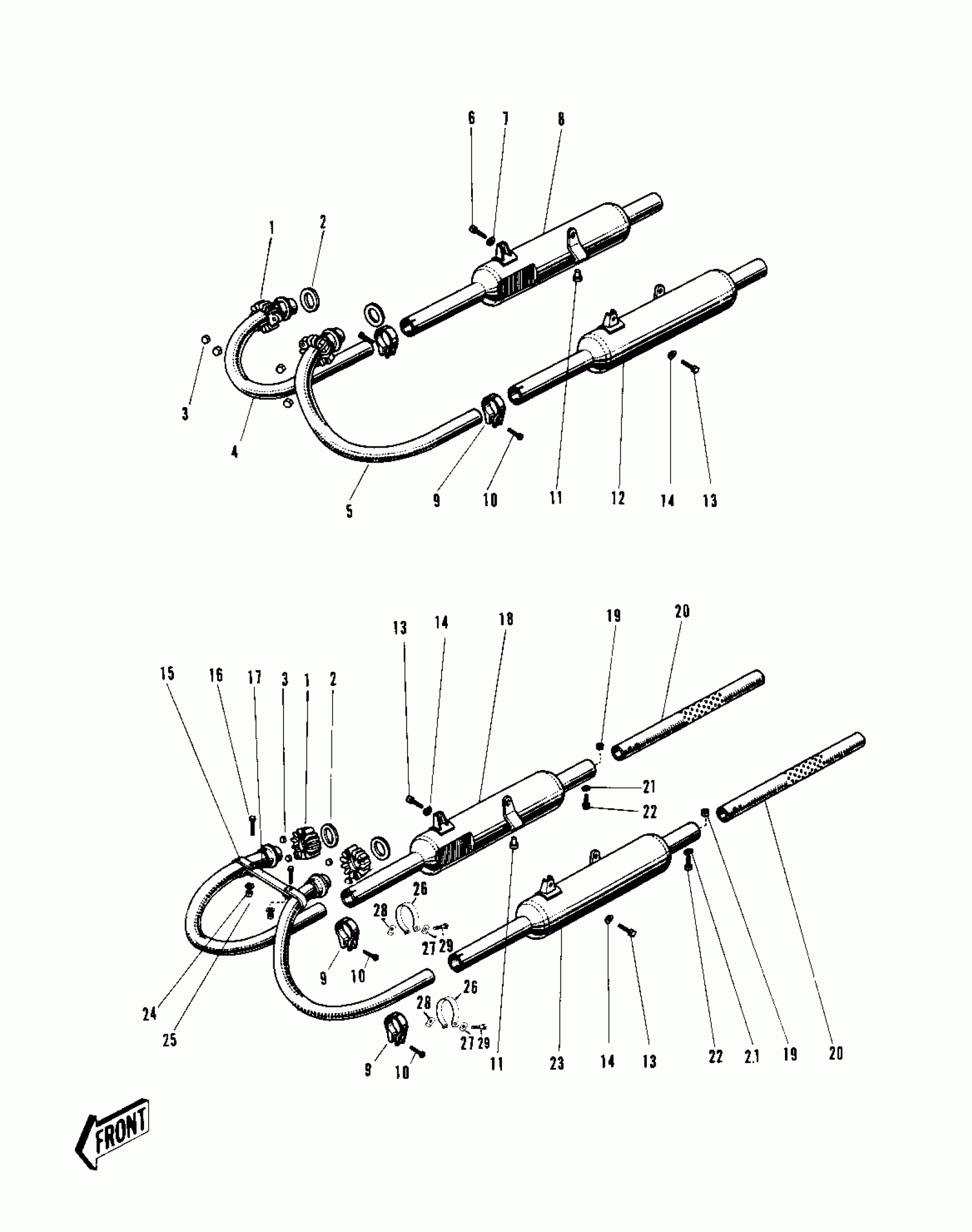

Kawasaki Commander MUFFLERS (W1SS/W2SS) Diagram

#

Description
Price

1

JOINT EXHAUST PIPE

18069-019

Unavailable

2

GASKET,EXHAUST PIPE H

11009-1840

$6.49

3

UNAVAILABLE IN PRICE BOOK

92015-012

Unavailable

4

PIPE-EXHAUST,R.H

18049-073

Unavailable

5

PIPE-EXHAUST,L.H

18049-072

Unavailable

6

BOLT,8X16

92007-003

Unavailable

7

WASHER SPRING 8MM

461F0800

Unavailable

8

MUFFLER SET R.H

18003-013

Unavailable

9

CLAMP

92037-030

Unavailable

10

SCREW FLT FIL HD 6X25

210E0625

Unavailable

10

SCREW PAN HEAD 6X25

220B0625

Unavailable

11

DAMPER

92075-015

$3.97

12

MUFFLER ASSY L.H

18002-032

Unavailable

13

BOLT,8X16

92007-003

Unavailable

14

WASHER SPRING 8MM

461F0800

Unavailable

15

CLAMP EXHAUST PIPE

92037-036

$3.80

16

BOLT-SMALL-UPSET,8X18

115G0818

Unavailable

17

HOLDER EXHAUST PIPE

18072-001

$9.44

18~22

UNAVAILABLE IN PRICE BOOK

18003-014

Unavailable

18~22

MUFFLER ASSY R.H

18001-021

Unavailable

19~23

UNAVAILABLE IN PRICE BOOK

18002-033

Unavailable

19~23

UNAVAILABLE IN PRICE BOOK

18002-034

$42.31

19

NUT 6MM

311B0600

Unavailable

20

BUFFLE TUBE

18034-009

$12.78

20

BAFFLE TUBE

18033-042

$28.69

21

WASHER SPRING 6MM

461F0600

Unavailable

22

BOLT HEX HEAD 6X8

110B0608

Unavailable

24

WASHER SPRING 8MM

461F0800

Unavailable

25

NUT,8MM

311B0800

Unavailable

26

CLAMP

92037-038

$22.80

27

BAND END B

21056-003

$24.88

28

BAND END A

21056-002

$24.88

29

BOLT-SMALL-UPSET

115B0832

Unavailable
