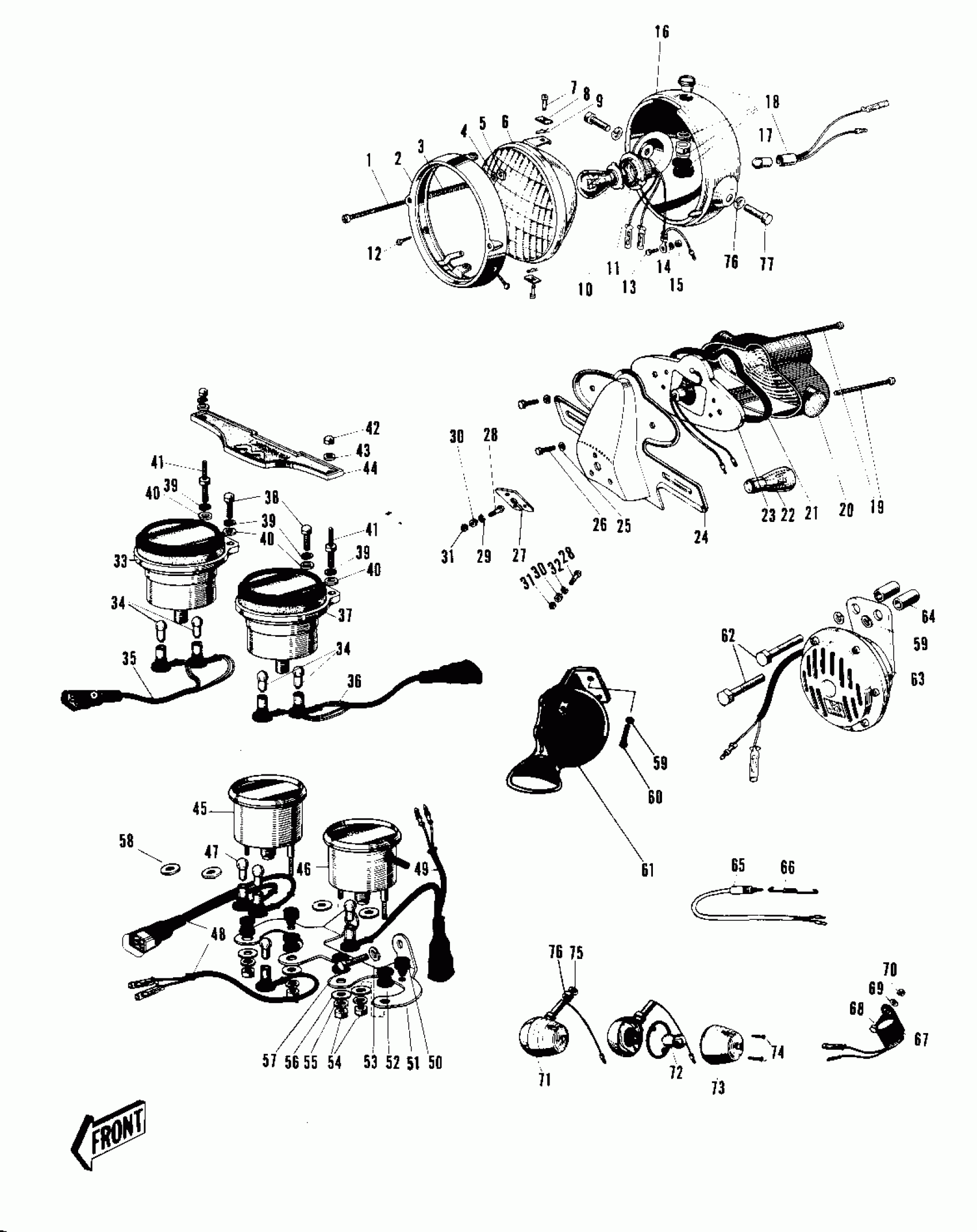

Kawasaki Commander METERS/LIGHTS (LATE PRODUCTION) Diagram

#

Description
Price

1~15

LAMP UNIT HEAD

23004-020

Unavailable

1

SCREW FOCUS ADJUST

23019-017

$1.22

1

SCREW,FOCUS ADJUSTING

23019-021

$4.69

2

RIM HEAD LAMP

23006-017

Unavailable

3

SPRING,FOCUS ADJUSTING

23014-005

$3.62

4

WASHER,4.1X8X0.8

23021-004

$2.91

5

NUT

23020-010

$0.24

5

NUT

23020-016

Unavailable

6

LENS UNIT HEAD LAMP

23007-013

Unavailable

7

SCREW LENS UNIT FITT

23019-018

Unavailable

8

NUT LENS UNIT FITTING

23020-009

Unavailable

9

PIN LENS UNIT FITTING

23022-001

Unavailable

10

BULB 12V 35/25W

92069-037

$13.64

11

SOCKET HEAD LAMP

23008-011

Unavailable

12

SCREW-CSK-RD-CROS

222E0510

Unavailable

12

SCREW-CSK-RD-CROS

222E0510

Unavailable

13

SCREW PAN HEAD 3X6

211B0306

$0.24

13

SCREW-PAN-CROS,3X6

220B0306

Unavailable

14

WASHER SPRING 3MM

461F0300

Unavailable

15

NUT-HEX

311B0300

$0.40

15

NUT-HEX

311B0300

$0.40

16

BODY-HEAD LAMP,F BLK

23005-018-21

Unavailable

16

BODY HEAD LAMP C.RED

23005-018-24

$64.32

16

BODY-HEAD LAMP,F BLK

23005-018-21

Unavailable

17

BULB 12V 1.5W

92069-017

$4.92

18

LAMP ASSY HIGH BEAM

23016-002

Unavailable

19~26

LAMP ASSY TAIL

23025-027

Unavailable

19

SCREW PAN HEAD 4X50

220E0450

Unavailable

19

SCREW PAN HEAD 4X50

220E0450

Unavailable

20

LENS TAIL LAMP

23026-010

Unavailable

21

GASKET TAIL LAMP

23028-008

Unavailable

22

BULB,12V 27/8W

92069-059

$8.12

23

SOCKET TAIL LAMP

23027-009

Unavailable

24

BKT LICENSE PLT

23036-002

Unavailable

25

WASHER SPRING 5MM

461F0500

Unavailable

26

BOLT HEX HEAD 5X10

110N0510

Unavailable

26

.BOLT HEX HEAD 5X10

110N0510A

Unavailable

27

DAMPER-TAIL LAMP SHCK

35039-005

Unavailable

28

BOLT 6X35

110R0635

Unavailable

29

WASHER SPRING 6MM

461F0600

Unavailable

30

NUT 6MM

311B0600

Unavailable

31

NUT 6MM

312B0600

Unavailable

32

DAMPER RUBB SIDE COV

92075-041

Unavailable

45,47,

TACHOMETER ASSY

25015-003

$99.37

46,47,

SPEEDOMETER ASSY MPH

25005-028

$114.67

46,47,

UNAVAILABLE IN PRICE BOOK

25001-007

Unavailable

47

BULB 12V 3W

92069-018

$4.87

48

SOCKET TACHOMETER

25011-005

Unavailable

49

SOCKET SPEEDOMETER

25011-004

$30.47

50

DAMPER

92075-035

$4.60

51

BRACKET SPEEDOMETER

25008-006

$13.34

52

DAMPER RUBB SPEEDMETR

92075-034

Unavailable

53

WASHER SPRING 8MM

461F0800

Unavailable

54

NUT-HEX

311B0500

$0.42

54

NUT-HEX

311B0500

$0.42

55

WASHER SPRING 5MM

461F0500

Unavailable

56

WASHER,5.5X20X1.2

92022-104

$3.28

57

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

58

WASHER PLAIN 8MM

411B0800

Unavailable

59

WASHER SPRING 8MM

461F0800

Unavailable

60

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

61

HORN

27003-011

Unavailable

65

SWITCH BRAKE LAMP

27010-006

$51.93

66

SPRING BRAKE LAMP SW

27011-009

Unavailable

67

RELAY TURN SIGNAL

27002-008

Unavailable

68

BOLT-UPSET,6X16

112G0616

Unavailable

69

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

70

NUT 6MM

311B0600

Unavailable

71

LAMP FRNT TURN SIGNAL

23040-020

$155.42

72

BULB 12V 8W

92069-043

Unavailable

73

LENS TURN SIGNAL LAMP

23048-011

$14.97

74

SCREW OVL CNTSNK 3X15

222B0315A

Unavailable

75

NUT-HEX-FINE,10MM

315B1000

Unavailable

76

WASHER SPRING 10MM

461F1000

Unavailable

77

BOLT,HEX HEAD,10X25

92007-045

$9.75
