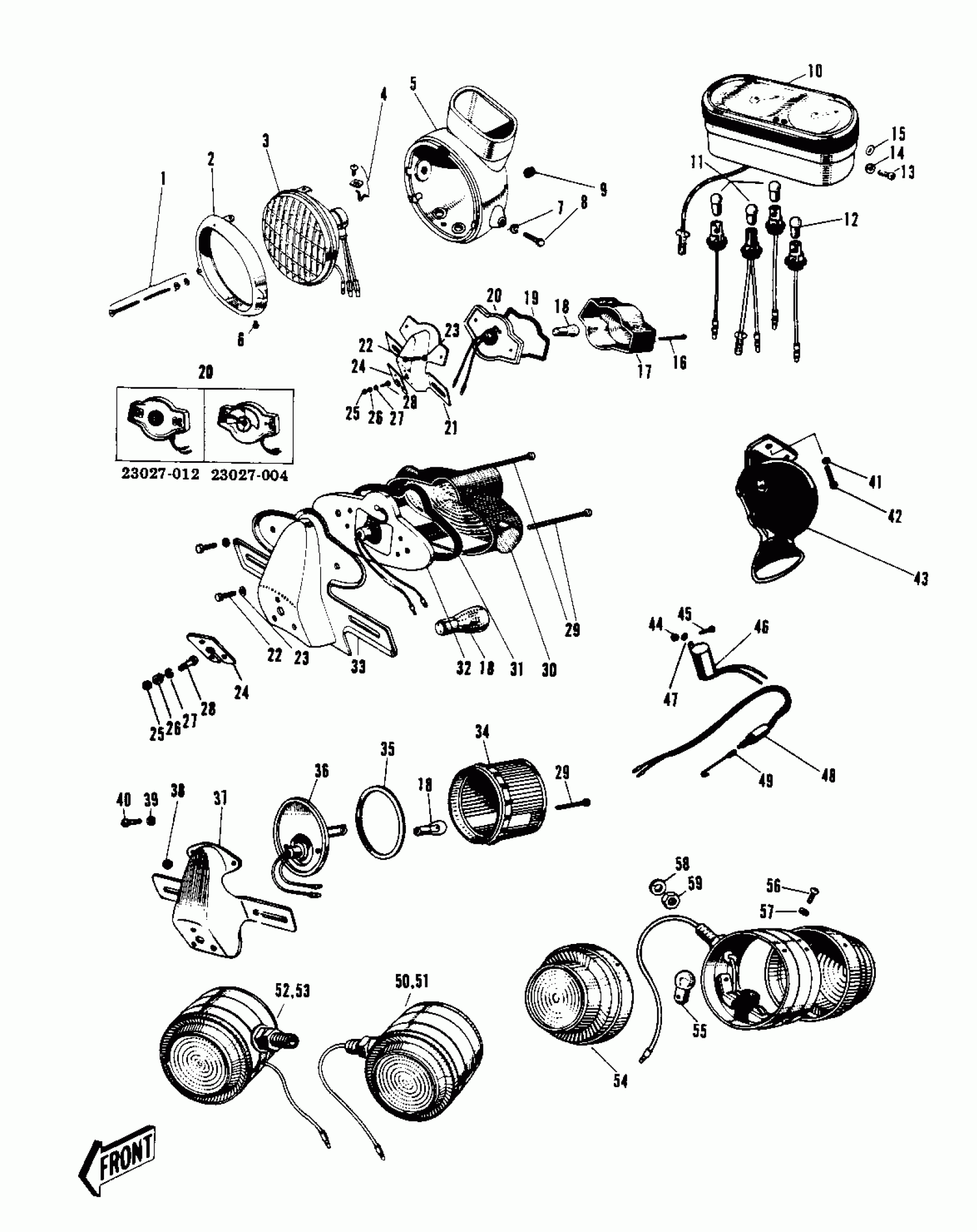

Kawasaki Commander METERS/LIGHTS (EARLY PRODUCTION) Diagram

#

Description
Price

1~6

LAMP ASSY HEAD BLACK

23001-021-10

$89.85

1~6

LAMP ASSY HEAD C.RED

23001-021-24

Unavailable

1~6

UNAVAILABLE IN PRICE BOOK

23001-21-27

Unavailable

1

SCREW SET FOCUS ADJST

23013-002

Unavailable

2

RIM HEAD LAMP

23006-017

Unavailable

3

SEALED BEAM UNIT

23007-025

Unavailable

4

SCREW SET LAMP MOUNT

23015-002

$0.48

5

BODY HEAD LAMP BLACK

23005-017-10

$40.95

5

BODY HEAD LAMP C.RED

23005-017-24

Unavailable

5

BODY HEAD LAMP C.BLUE

23005-017-27

Unavailable

6

SCREW OVL CNTSNK 5X8

222E0508

Unavailable

7

WASHER SPRING 10MM

461F1000

Unavailable

8

BOLT,HEX HEAD,10X25

92007-045

Unavailable

9

GROMMET 13MM

850A1301

$1.08

10~12

SPEEDOMETER ASSY MPH

25003-005

Unavailable

10~12

UNAVAILABLE IN PRICE BOOK

25003-003

Unavailable

11

BULB 12V 3W

92069-018

$3.71

12

BULB 12V 1.5W

92069-017

Unavailable

13

SCREW-PAN-CROS,5X8

220E0508

Unavailable

14

WASHER SPRING 5MM

461F0500

Unavailable

15

WASHER PLAIN 5MM

410B0500

Unavailable

16~23

LAMP ASSY TAIL

23025-019

Unavailable

16

SCREW OVL CNTSNK 3X60

222E0360

$3.12

17

LENS TAIL LAMP

23026-017

Unavailable

18

BULB,12V 27/8W

92069-059

$6.86

19

GASKET TAIL LAMP LENS

23028-007

$4.76

20

SOCKET TAIL LAMP

23027-004

Unavailable

20

SOCKET TAIL LAMP

23027-012

Unavailable

21

BKT LICENSE PLT

23036-003

Unavailable

22

BOLT HEX HEAD 5X10

110N0510

Unavailable

23

WASHER SPRING 5MM

461F0500

Unavailable

24

DAMPER TAIL LAMP SHCK

35039-001

Unavailable

24

DAMPER-TAIL LAMP SHCK

35039-005

Unavailable

25

NUT 6MM

312B0600

Unavailable

26

NUT 6MM

311B0600

Unavailable

27

WASHER SPRING 6MM

461F0600

Unavailable

28

BOLT-UPSET

112G0618

Unavailable

28

BOLT 6X35

110R0635

Unavailable

18,22,

LAMP ASSY TAIL

23025-027

Unavailable

29

SCREW PAN HEAD 4X50

220E0450

Unavailable

30

LENS TAIL LAMP

23026-010

Unavailable

31

GASKET TAIL LAMP

23028-008

Unavailable

32

SOCKET TAIL LAMP

23027-009

Unavailable

33

BKT LICENSE PLT

23036-002

Unavailable

41

WASHER SPRING 8MM

461F0800

Unavailable

42

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

43

HORN

27003-011

$29.90

44

NUT 6MM

310B0600

$0.81

45

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

46

RELAY TURN SIGNAL

27002-004

Unavailable

46

RELAY TURN SIGNAL

27002-008

Unavailable

47

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

48

SWITCH BRAKE LAMP

27010-006

$55.83

49

SPRING BRAKE LAMP SW

27011-009

Unavailable

50

LAMP FRNT TURN SIG RH

23040-013

Unavailable

51

LAMP FRNT TURN SIG LH

23042-012

$22.19

52

LAMP REAR TURN SIG RH

23043-011

Unavailable

53

LAMP REAR TURN SIG LH

23044-009

$16.81

54

LENS TURN SIGNAL LAMP

23048-004

Unavailable

55

BULB 12V 8W

92069-019

Unavailable

56

SCREW-PAN-CROS,3X8

220E0308

$4.10

57

WASHER SPRING 3MM

461F0300

Unavailable

58

WASHER SPRING 10MM

461F1000

Unavailable

59

NUT-HEX-FINE,10MM

315B1000

Unavailable
