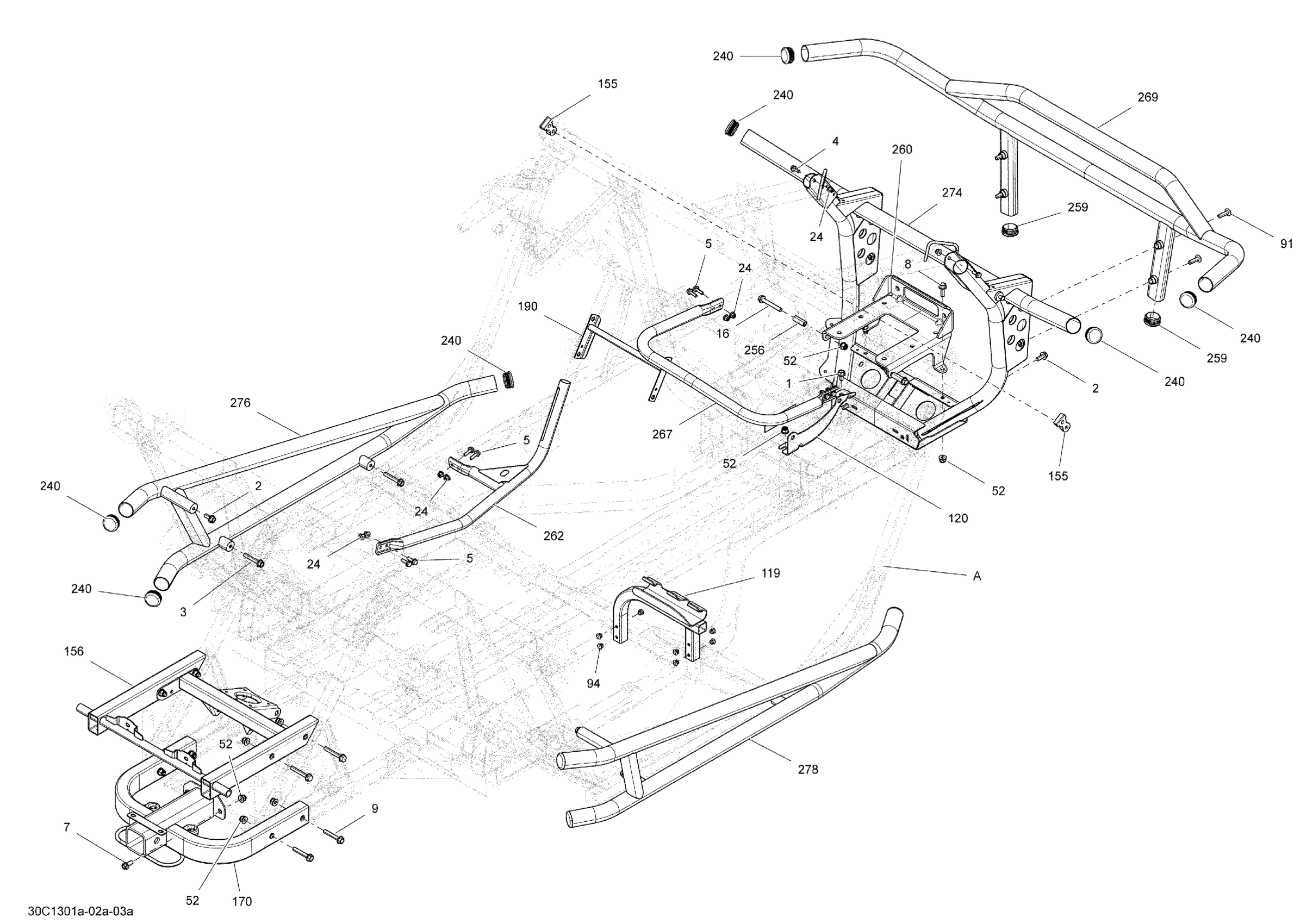

Can-Am Commander LTD 1000, 2013 Frame Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.08

2

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

3

Not Available As Spare Parts

XXX

Unavailable

4

Hex. Flange Screw M6 X 16

207661644

$0.61

5

Hex. Flange Screw M6 X 20

207662044

$1.66

7

Hex. Flange Screw M8 X 20

207682044

$0.92

8

Hex. Flange Screw M8 X 25

207682544

$0.90

9

Hex. Flange Screw M8 X 50

207685044

$1.39

16

Hex. Flange Screw M8 x 60

207686044

$2.56

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

52

Hex. Flange Elastic Nut M8

233281414

$1.14

91

Hex Torx Truss M8 X30

250000745

$3.05

94

Hemlock Rivet, 6.5 mm

293150096

$3.17

119

FRAME - Call your local BRP dealership

715001986

Unavailable

120

Front Differential Support

705201721

$18.43

155

Binding Block

705203415

$16.89

156

BOX HOLDER - Call your local BRP dealership

705203325

Unavailable

170

TRAILER HITCH ASS'Y - Call your local BRP dealership | Includes 47 to 50

715001251

Unavailable

190

Reinforcement Panel

705203330

$147.66

240

Cap

705202455

$4.62

256

Bushing

705202499

$6.45

259

Not Available As Spare Parts

XXX

Unavailable

260

Winch Plate | XT

715000704

$129.97

262

HANDLE - Call your local BRP dealership

705203828

Unavailable

267

Black Handle

705203332

$129.20

269

Black Front Bumper | XT, X

715000958

$308.74

274

Black Front Bumper

705202995

$394.24

276

Not Available As Spare Parts

XXX

Unavailable

278

Not Available As Spare Parts

XXX

Unavailable

A

FRAME - Call your local BRP dealership

715001986

Unavailable
