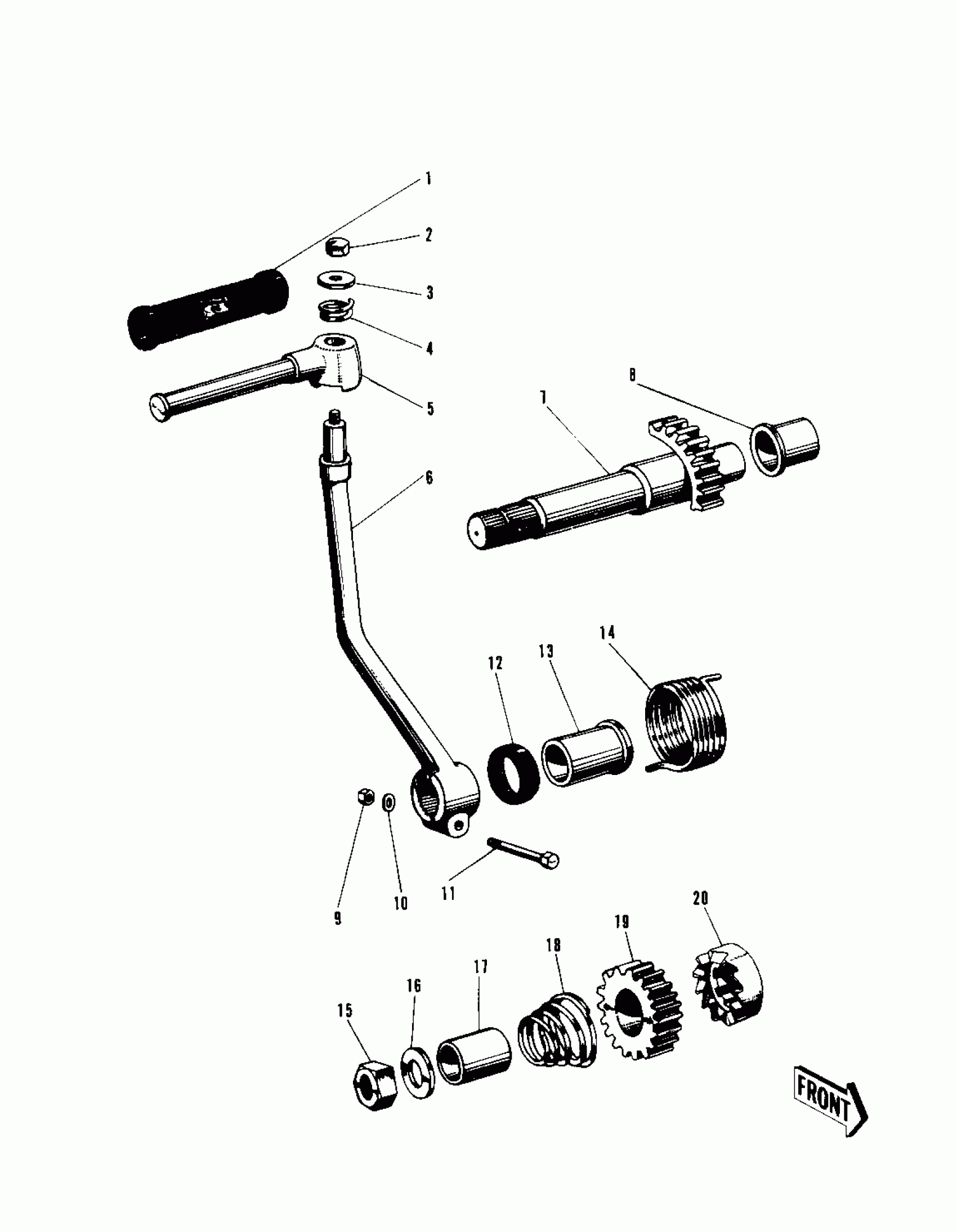

Kawasaki Commander KICKSTARTER MECHANISM Diagram

#

Description
Price

1

DAMPER,KICK PEDAL

13063-004

$8.44

2~6

PEDAL ASSY,KICKSTARTR

13064-004

Unavailable

2

NUT KICK PEDAL

92015-024

$2.75

3

WASHER KICK PEDAL

92022-089

$1.07

4

SPRING KICK PEDAL LEW

92081-060

$1.19

5

LEVER KICK PEDAL

13060-011

Unavailable

7

UNAVAILABLE IN PRICE BOOK

13066-011

Unavailable

7

SHAFT KICKSTARTER

13066-010

Unavailable

8

BUSH L.H KICK SHAFT

92028-061

$5.63

9

NUT-HEX-FINE,10MM

314B1000

Unavailable

10

WASHER SPRING 10MM

461F1000

Unavailable

11

BOLT HEX HEAD 10X35

113N1035

Unavailable

12

OIL SEAL VC22345

92054-003

Unavailable

13

BUSH R.H KICK SHAFT

92028-062

$12.24

14

SPRING KICKSTARTER

92081-032

$29.44

15

NUT-HEX-FINE,16MM

315B1600

Unavailable

16

WASHER MAIN SHT THRST

92026-040

$6.63

17

BUSH RATCHET GEAR

92028-049

$15.73

18

SPRING RATCHET GEAR

92081-030

Unavailable

19

GEAR RATCHET

13079-002

Unavailable

19

GEAR RATCHET

13079-003

Unavailable

20

RATCHET

13078-002

Unavailable
