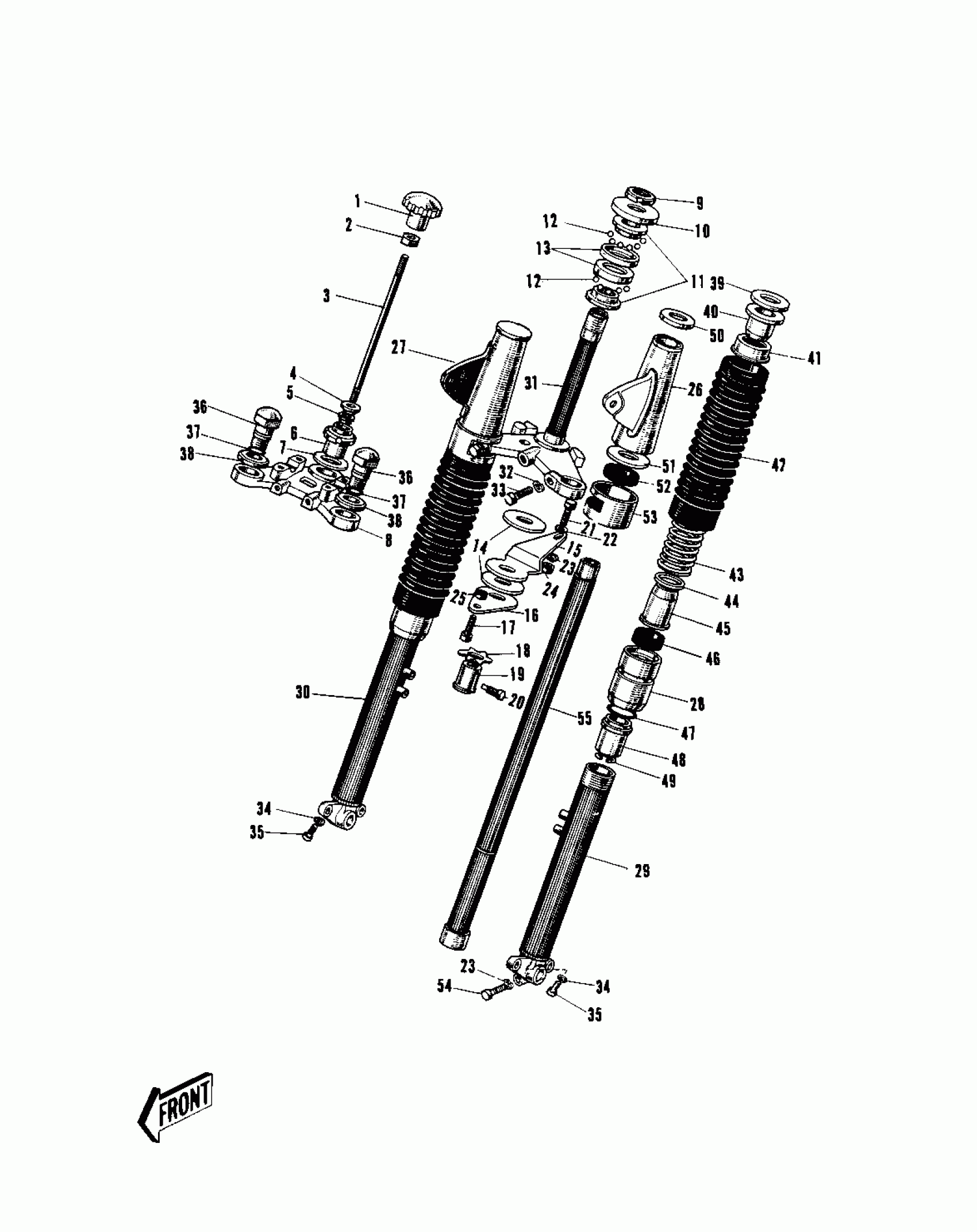

Kawasaki Commander FRONT FORK (W1SS/W2SS/W2TT) (F/NO.6869-) Diagram

#

Description
Price

1

KNOB STEERING DAMPER

46101-001

$6.58

2

NUT STEERING DAMP LCK

92016-001

$1.19

3

ROD STEERING DAMPER

46102-002

$4.58

4

WASHER STRNG DAMP NUT

46108-001

Unavailable

5

BUSH STRNG DAMPER ROD

46103-001

Unavailable

6

NUT STEERING STEM

92090-011

$11.90

7

WASHER STEERING STEM

92097-002

$5.93

8

HEAD STEERING STEM

44039-022

$89.24

9

NUT STEERING STEM LCK

92090-010

Unavailable

10

CAP STEERING STEM

46098-007

Unavailable

11

CONE STRNG STEM BERNG

92047-007

Unavailable

12

BALL-STEEL,1/4

600A0800

$1.49

13

RACE STRNG STEM BERNG

92048-007

Unavailable

14

DISC STRNG DAMP FRCTN

46104-002

$5.37

15

STOPPER STEERING DAMP

46105-002

$10.66

16

DISC STRNG DAMP STEEL

46106-002

$7.24

17

BOLT-UPSET

112G0625

Unavailable

17

BOLT-UPSET

112G0625

Unavailable

18

SPRING-STEERING DAMP

46124-006

Unavailable

19

SLEEVE STRNG DAMPER

46125-002

$18.51

20

BOLT STEERING DAM SLV

92001-042

$1.20

21

BOLT-SMALL-UPSET,8X18

115G0818

Unavailable

22

WASHER PLAIN 8MM

410B0800

Unavailable

23

WASHER SPRING 8MM

461F0800

Unavailable

24

NUT,8MM

311B0800

Unavailable

25

NUT,8MM

311B0800

Unavailable

26~55

FRONT FORK BLACK

44001-035-10

$355.96

26

COVER L.H FORK BLACK

44033-026-10

$40.53

27

COVER R.H FORK BLACK

44034-025-10

$40.53

28

NUT FORK OUTER TUBE

44007-014

$36.93

29

TUBE,LH,FORK OUTER

44005-019

Unavailable

30

TUBE,RH,FORK OUTER

44006-017

Unavailable

31

STEM-STEERING,BLACK

44037-018-10

$145.92

32

WASHER SPRING 10MM

461F1000

Unavailable

33

BOLT,10X28

113G1028

Unavailable

34

GASKET,FORK DRAIN PLUG

44045-002

$5.18

35

SCREW PAN HEAD 4X8

220B0408

Unavailable

35

SCREW PAN HEAD 4X8

220B0408

Unavailable

36

BOLT FORK FIT

44041-025

Unavailable

37

'O' RING FORK FIT BLT

44046-013

Unavailable

38

WASHER FORK FIT BOLT

44043-028

$6.69

39

WASHER FORK COVER

44032-002

$0.98

40

GUIDE SPRING

44028-014

Unavailable

41

HOLDER FORK BOOT UPP

44035-002

Unavailable

42

DUST SHIELD FORK SPRG

44027-009

Unavailable

43

SPRING FORK

44026-017

$22.47

44

WASHER FORK SPRG GUID

44029-008

Unavailable

45

DUST SHIELD FORK

44010-013

$8.66

46

OIL SEAL,FORK

44009-020

$59.73

47

'O' RING INNER TUBE

44046-014

Unavailable

48

GUIDE FORK INNER TUBE

44015-010

$3.59

49

CIRCLIP INN TUBE GUID

44044-007

$1.85

50

CAP FORK COVER

44032-004

Unavailable

51

WASHER FORK COVER

44032-003

Unavailable

52

GASKET FORK COVER

44045-026

Unavailable

53

GUIDE FORK COVER

44030-007

Unavailable

54

BOLT FRNT AXLE PINCH

44041-017

$3.07

55

TUBE FORK INNER

44013-014

$129.53
