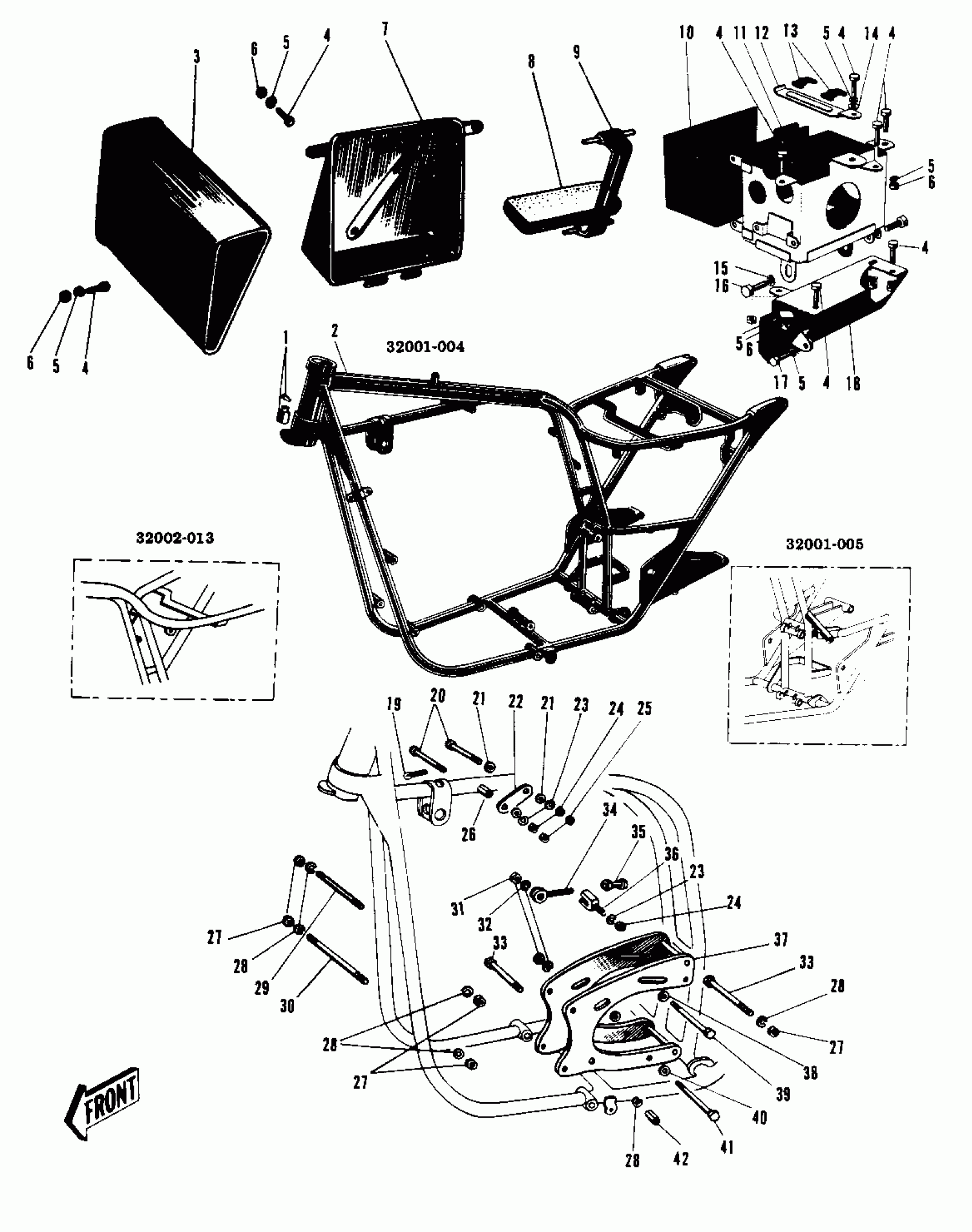

Kawasaki Commander FRAME/FRAME FITTINGS Diagram

#

Description
Price

1

LOCK ASSY STEERING

27016-013

Unavailable

2

FRAME

32001-004

$453.03

2

FRAME

32001-005

$898.52

3

BOX TOOL

32098-003

Unavailable

3

BOX TOOL

32098-005

$40.53

4

BOLT-UPSET,6X12

112G0612

$1.49

5

WASHER SPRING 6MM

461F0600

Unavailable

6

NUT 6MM

311B0600

Unavailable

7

CASE BATTERY

32097-006

$34.63

8

MAT BATTERY

32103-006

Unavailable

9

BAND BATTERY CLAMP

92072-017

Unavailable

19

PIN-COTTER,2.0X20

550D2020

Unavailable

20

BOLT ENG UPPER MOUNT

92091-015

Unavailable

20

BOLT HEX HEAD 8X63

114G0863

Unavailable

21

WASHER PLAIN 8MM

410B0800

Unavailable

22

BRACE CYLINDER HEAD

32030-010

$7.19

23

WASHER SPRING 8MM

461F0800

Unavailable

24

NUT,8MM

311B0800

Unavailable

25

NUT-HEX-SMALL,8MM

318B0800

$0.48

26

PIECE-CYL HEAD BRACE

32030-009

$1.19

27

NUT-HEX-FINE,10MM

314B1000

Unavailable

28

WASHER SPRING 10MM

461F1000

Unavailable

29

BOLT ENGINE MOUNT A

92091-006

$16.76

30

BOLT ENGINE MOUNT B

92091-007

$4.78

31

NUT MISSION CASE LOW

92016-020

$0.78

32

WASHER-SPRING,12MM

461F1200

Unavailable

33

BOLT HEX HEAD 10X95

113B1095

Unavailable

34

SCREW PRMRY CHAIN ADJ

32107-001

$31.10

35

NUT PRIMARY CHAIN ADJ

92016-017

$1.75

36

HOLDER PRI CHAIN ADJ

32108-001

$10.34

37

PLATE MISSION CSE HLD

32031-001

$20.10

38

WSHR MISSION CASE UPP

92022-094

$1.27

39

BOLT MISSION CASE UPP

92003-021

$13.22

40

WASHER PLAIN 12MM

411B1200

Unavailable

40

WASHER PLAIN 12MM

411B1200

Unavailable

41

BOLT MISSION CASE LOW

92003-020

$4.88

42

NUT CHAIN CASE MOUNT

92016-018

$10.80
