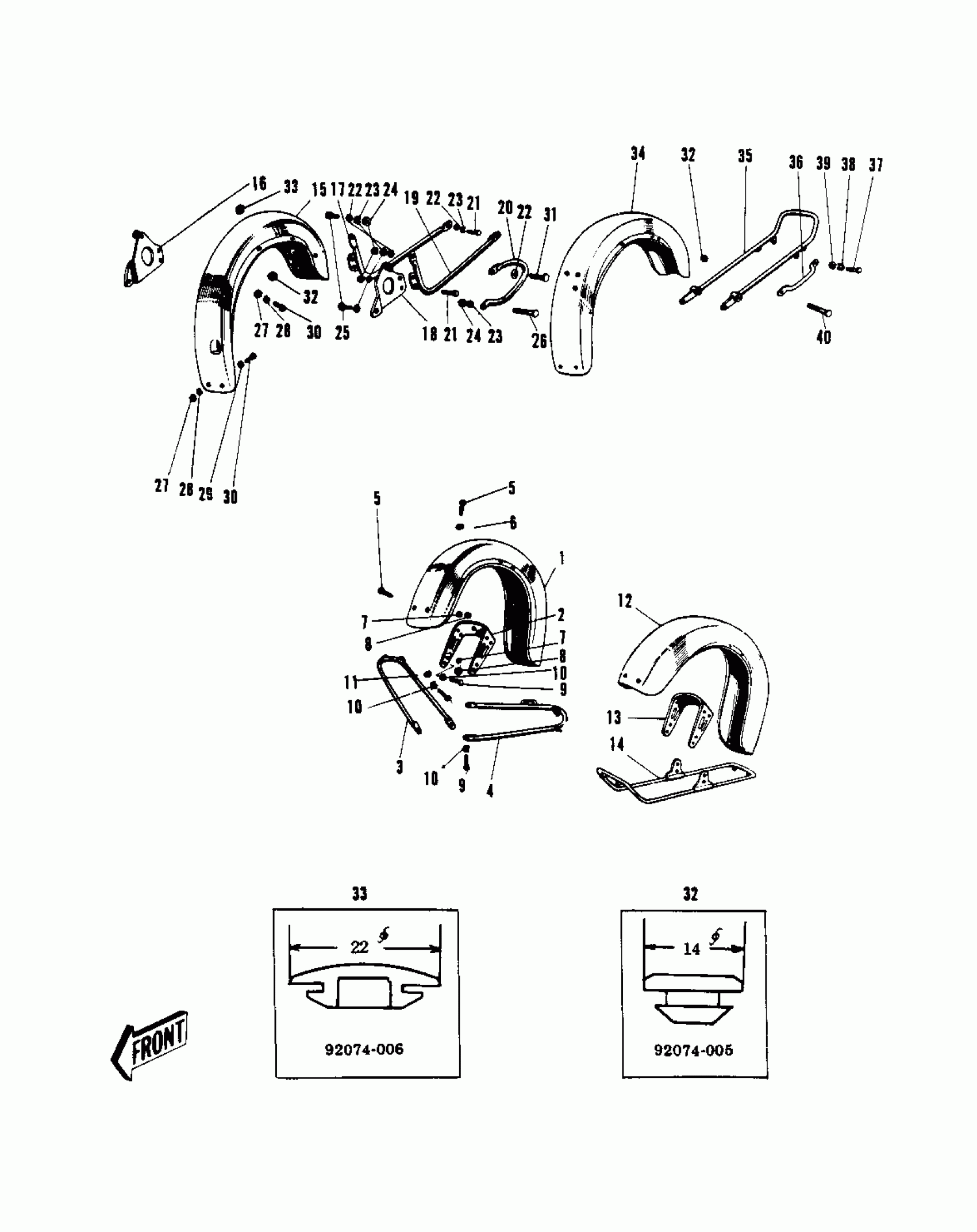

Kawasaki Commander FENDERS Diagram

#

Description
Price

1

FENDER FRONT

35001-008

Unavailable

2

BRACE FRONT FENDER

35009-007

$23.46

3

STAY FRONT FENDER UPP

35010-017

$27.25

4

STAY FRONT FENDER LOW

35010-018

$88.29

5

SCREW PAN HEAD 6X10

220E0610

Unavailable

6

WASHER PLAIN 6MM

411B0600

Unavailable

7

WASHER SPRING 6MM

461F0600

Unavailable

8

NUT 6MM

312B0600

Unavailable

9

BOLT-SMALL-UPSET,8X14

115B0814

Unavailable

10

WASHER SPRING 8MM

461F0800

Unavailable

11

WASHER PLAIN 8MM

411B0800

Unavailable

15

FENDER REAR

35022-030

Unavailable

16

UNAVAILABLE IN PRICE BOOK

35033-004

$57.68

17

STAY R.H REAR FENDER

35032-006

$20.86

18

UNAVAILABLE IN PRICE BOOK

35033-003

$54.64

19

STAY L.H REAR FENDER

35032-007

$24.08

20

UNAVAILABLE IN PRICE BOOK

32109-005

$8.93

21

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

22

WASHER PLAIN 8MM

410B0800

Unavailable

23

WASHER SPRING 8MM

461F0800

Unavailable

24

NUT,8MM

311B0800

Unavailable

25

BOLT-SMALL-UPSET,8X14

115B0814

Unavailable

26

BOLT HEX HEAD 8X50

114G0850

Unavailable

27

NUT 6MM

311B0600

Unavailable

28

WASHER SPRING 6MM

461F0600

Unavailable

29

WASHER PLAIN 6MM

411B0600

Unavailable

30

BOLT-UPSET 6X14

112B0614

Unavailable

31

BOLT-SMALL-UPSET,8X22

115B0822

Unavailable

32

PLUG RUBBER

92074-005

Unavailable

33

PLUG REAR FENDER RUB

92074-006

$5.93
