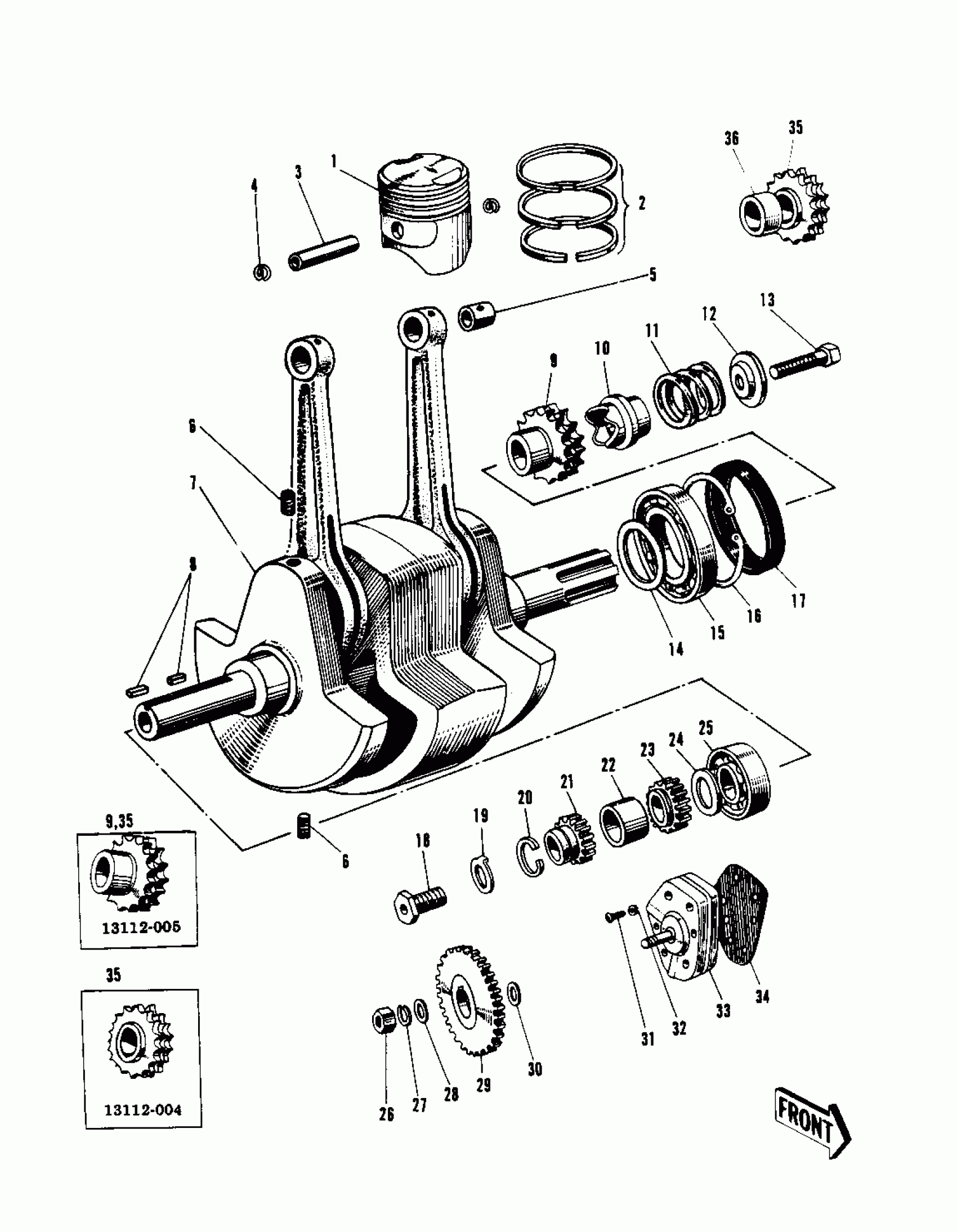

Kawasaki Commander CRANKSHAFT/PISTONS/OIL PUMP Diagram

#

Description
Price

1

PISTON STD

13001-025

Unavailable

2

RING SET STD

13008-018

Unavailable

3

PIN-PISTON

13002-012

Unavailable

4

UNAVAILABLE IN PRICE BOOK

92036-009

Unavailable

4

RING-SNAP,PISTON PIN

92036-008

$1.49

5

BUSH SMALL END

92028-030

$3.88

8

SCREW SLOTTED

291H0816

$1.32

7

CRANK - CONROD ASSY

13036-020

Unavailable

8

WOODRUFF KEY

511A0514

$6.54

9

CRANKSHAFT SPROCKET

13112-003

Unavailable

9

CRANKSHAFT SPROCKET

13112-005

Unavailable

10

ABSORBER CHAIN SHOCK

13049-001

Unavailable

10

ABSORBER CHAIN SHOCK

13049-001

Unavailable

11

SPRING SHOCK ABSORBAR

92081-031

$15.39

12

SEAT SPRING

13047-001

Unavailable

13

BOLT HEX HEAD 16X35

113G1635

Unavailable

14

SHIM MAIN BEARING

92025-018

Unavailable

15

BEARING ROLLER BL307N

92045-015

Unavailable

16

CIRCLIP 80MM

481J8000

$7.10

17

OIL SEAL SC458010

92050-019

$28.10

18

BOLT OIL PUMP PINION

92001-041

$3.61

19

WASHER OIL PUMP LOCK

92030-002

$0.76

20

RING OIL SEAL

16139-001

$14.15

21

PINION OIL PUMP

16084-006

$52.36

22

SPACER OL PUMP PINION

92026-032

$5.88

23

PINION CRANKSHAFT

12062-001

Unavailable

24

UNAVAILABLE IN PRICE BOOK

92027-040

$10.85

25

BEARING ROLLER BL307N

92045-015

Unavailable

25

BEARING ROLLER BL307N

92045-015

Unavailable

28

NUT-HEX-SMALL,8MM

317G0800

Unavailable

27

WASHER SPRING 8MM

461F0800

Unavailable

28

WASHER PLAIN 8MM

410B0800

Unavailable

29

GEAR OIL PUMP

16085-007

Unavailable

29

GEAR OIL PUMP

16085-007

Unavailable

29

GEAR OIL PUMP

16085-007

$100.68

30

WASHER PLAIN

92022-147

$0.78

31

SCREW PAN HEAD 6X55

220B0655

$3.14

32

WASHER SPRING 6MM

461F0600

Unavailable

33

OIL PUMP ASSY

16082-012

$275.56

34

GASKET OIL PUMP

16094-005

$1.07

35

CRANKSHAFT SPROCKET

13112-004

Unavailable

35

CRANKSHAFT SPROCKET

13112-005

Unavailable

36

COLLAR CRANK SPROCKET

92027-047

$10.73
