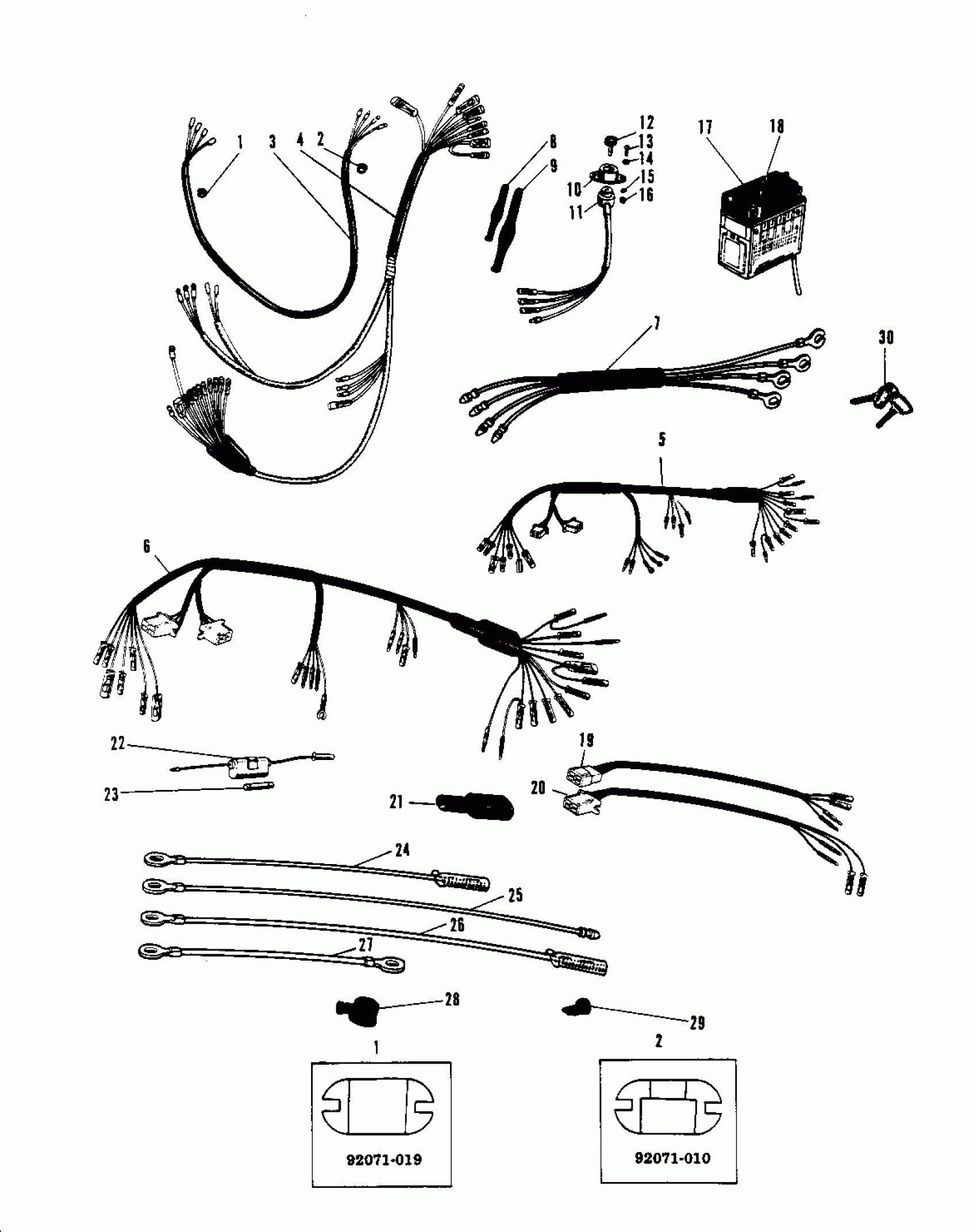

Kawasaki Commander CHASSIS ELECTRICAL EQUIPMENT Diagram

#

Description
Price

1

GROMMET,10MM

92071-019

$3.03

2

GROMMET HARNESS 10MM

92071-010

Unavailable

3

WIRING HARNESS REAR

26002-010

$8.17

4

WIRING HARNESS MAIN

26001-026

$76.42

5

WIRING HARNESS MAIN

26001-027

$74.34

7

WIRE REGURATOR

26002-009

Unavailable

7

WIRE REGULATOR LEAD

26002-013

Unavailable

8

BAND RUBBER

92072-013

$3.12

9

BAND RUBBER

92072-018

Unavailable

10

HOUSING IGNITION SW

27009-002

Unavailable

11,12

SWITCH ASSY IGNITION

27005-016

Unavailable

12

KEY SET IGN NO.651

27008-020-51

$8.42

12

KEY SET IGN NO.652

27008-020-52

$8.49

12

KEY SET IGN.NO.653

27008-020-53

$8.49

12

KEY SET IGN NO.654

27008-020-54

$8.49

12

KEY SET IGN NO.655

27008-020-55

Unavailable

12

KEY SET IGN NO.656

27008-020-56

$8.49

12

KEY SET IGN NO.657

27008-020-57

$8.49

12

KEY SET IGN NO.658

27008-020-58

$8.49

13

SCREW-PAN-CROS,6X16

220B0616

Unavailable

14

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

15

WASHER SPRING 6MM

461F0600

Unavailable

16

NUT 6MM

311B0600

Unavailable

17,18

YUA BAT 12N7-3B

K26012-016

$51.23

18

SCREW BATTERY TERMNAL

26013-002

Unavailable

22,23

FUSE ASSY

26004-026

Unavailable

22,23

FUSE ASSY

26004-005

$11.54

23

FUSE 10A

26006-001

Unavailable

23

FUSE 20A

26006-002

$2.95

24

LEAD WIRE B

26011-016

$1.92

25

LEAD WIRE A

26011-015

$2.46

26

WIRE BATTERY LEAD

26010-016

$1.85

27

WIRE BATTERY GROUND

26010-017

Unavailable

28

CAP BAT TERMINAL RUBB

92073-001

$12.80

29

CAP IGNITION COIL

92073-003

$3.15
