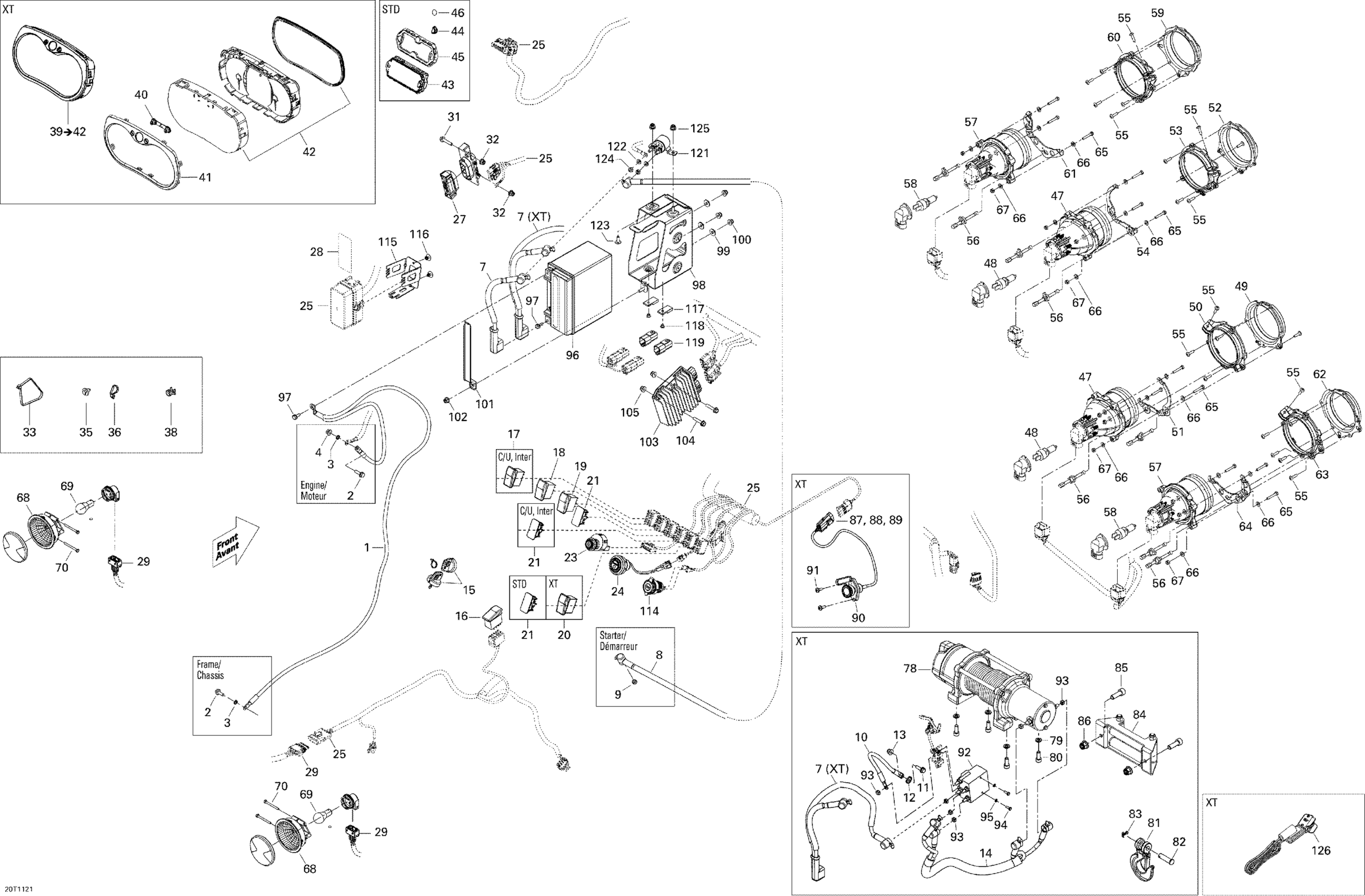

Can-Am Commander 800, 2011 Electrical System Diagram

#

Description
Price

1

GROUND CABLE - Call your local BRP dealership

710002147

Unavailable

2

Hex. Flange Screw M6 X 20

207662044

$1.91

3

Lock Washer Serrated M6

250200041

$1.06

4

Hex. Flange Nut M6

233061414

$1.54

5

Lock Washer Serrated M6

250200041

$1.06

6

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

7

POSITIVE CABLE - Call your local BRP dealership | STD, X

710002148

Unavailable

7

Winch Cable (-/+) | XT

710005123

$82.06

8

Positive Cable

710004383

$38.03

9

Elastic Stop Nut M6

232561414

$1.78

10

NEGATIVE CABLE - Call your local BRP dealership | XT

710004386

Unavailable

11

Hex. Flange Screw M6 X 20

207662044

$1.91

12

Lock Washer Serrated M6

250200041

$1.06

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

14

Electrical Winch Cable | XT

710004387

$44.75

15

Black, Electronic Key

710000817

$53.70

15

Grey, Electronic Key

710002183

$53.70

16

Switch, Over ride

710002053

$19.27

17

Hi/Low Switch | Except Europe

710001725

$21.49

18

4X4 Switch

710001737

$29.82

19

PPS Sport Switch

710002199

$17.88

20

Switch Winch

710002052

$28.18

21

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

21

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

23

Ignition Switch

710008400

$72.36

24

Engine Start Button

710002594

$55.94

25

WIRING HARNESS ASSY - Call your local BRP dealership | Except Europe

710002540

Unavailable

27

Housing

710001996

$44.00

28

Decal

710002218

Unavailable

29

Rear Harness | Except Europe

710003219

$141.76

31

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

33

Tie Wrap 368 mm

293750008

$0.97

35

Mount Dart

293730040

$0.99

36

Tie Wrap 94 mm | 4X4

293750001

$0.96

38

Tie-Rap 173 mm

293750009

$0.97

39

Speedometer Ass'y | XTP

710005075

$344.75

40

Speedometer Button | XTP

415129355

$13.52

41

Gauge Ring

415129348

$11.36

42

Lens | XTP

415129349

$22.36

43

Calibrated Speedometer | Includes 16 to 17

710003288

$314.90

44

Button

710001473

$11.81

45

Trim Ring Ass'y

710001183

$17.88

46

BRP Logo13 mm

704904615

$11.09

47

Low Beam Ass'y | Includes 1 to 2

710002524

$132.81

48

Halogen Bulb

415129249

$38.78

49

RH Low Front Housing

710001081

$16.39

50

RH Low Rear Housing

710001082

$10.55

51

RH Low Light Support

710001094

$8.15

52

LH Low Front Housing

710001083

$16.39

53

LH Low Rear Housing

710001084

$10.55

54

LH Low Light Support

710001037

$8.15

55

Phillips Screw K40 X 16

250000723

$0.93

56

Setting Screw

710001147

$11.81

57

High Beam Ass'y | Includes 11 to 12

710002525

$108.18

58

Halogen Bulb

415129249

$38.78

59

RH High Front Housing

710001085

$16.39

60

RH High Rear Housing

710001086

$10.55

61

RH High Light Support

710001115

$4.76

62

LH High Front Housing

710001087

$16.39

63

LH High Rear Housing

710001088

$10.55

64

LH High Light Support

710001036

$4.76

65

Hex. Screw M4 X 25

207142544

$1.87

66

Flat Washer M5

234051410

$0.51

67

Elastic Stop Nut M4

232541414

$0.55

68

Tail Light Ass'y | Includes 32 to 33

710001645

$79.07

69

Bulb

520000758

$8.60

70

Hex. Screw K50 X 45

241154540

$2.00

78

WINCH - Call your local BRP dealership | XT

705003944

Unavailable

79

Socket Head Screw M8 X 20

205082044

$1.06

80

Lock Washer 8 mm

234181401

$0.87

81

Winch Hook Kit

705014949

$23.10

82

Clevis Pin

250400021

$11.48

83

Cotter Pin

250400022

$8.40

84

WINCH CABLE GUIDE - Call your local BRP dealership | XT

715001119

Unavailable

85

Not Available As Spare Part - Friction Washer

Unavailable

86

Hex. Flange Elastic Nut M10

233201414

$1.45

87

Connector Ass'y | XT, Includes 55 to 57

710001059

$8.42

88

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

89

Clip

710000992

$3.88

90

Winch Connector

710001023

$47.73

91

Torx Screw K50 X 16

250000720

$1.60

92

Solenoid Kit | XT

715007084

$202.49

93

Elastic Stop Nut M6

232561434

$1.78

94

HEX. SCREW M4 X 10 - Call your local BRP dealership | XT

207141044

Unavailable

95

Lock Washer 4 mm

234141601

$1.06

96

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

97

Battery Bolt Kit

250000282

$3.39

98

Battery Support

710003129

$44.00

99

Flat Washer 6 mm

234062410

$0.73

100

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

101

Battery Holder

710001916

$16.39

102

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

103

Voltage Regulator | XT, XTP, LTD

710001191

$180.49

104

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

105

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

114

DC Outlet

710001248

$35.79

115

Fuse Holder

710003335

$8.60

116

Pop Rivet 3/16"

293150103

$0.52

117

Clip

270000141

$9.57

118

Pop Rivet 3/16"

390402400

$0.28

119

Diagnostic Connector

278002704

$17.88

121

Starter Relay

710007777

$45.49

122

Lock Washer Helical M6

234161601

$1.06

123

Torx Screw M6 X 16

250000223

$2.00

124

Hex. Nut M6

232061600

$1.04

125

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

126

REMOTE CONTROL - Call your local BRP dealership | XT

710001002

Unavailable
