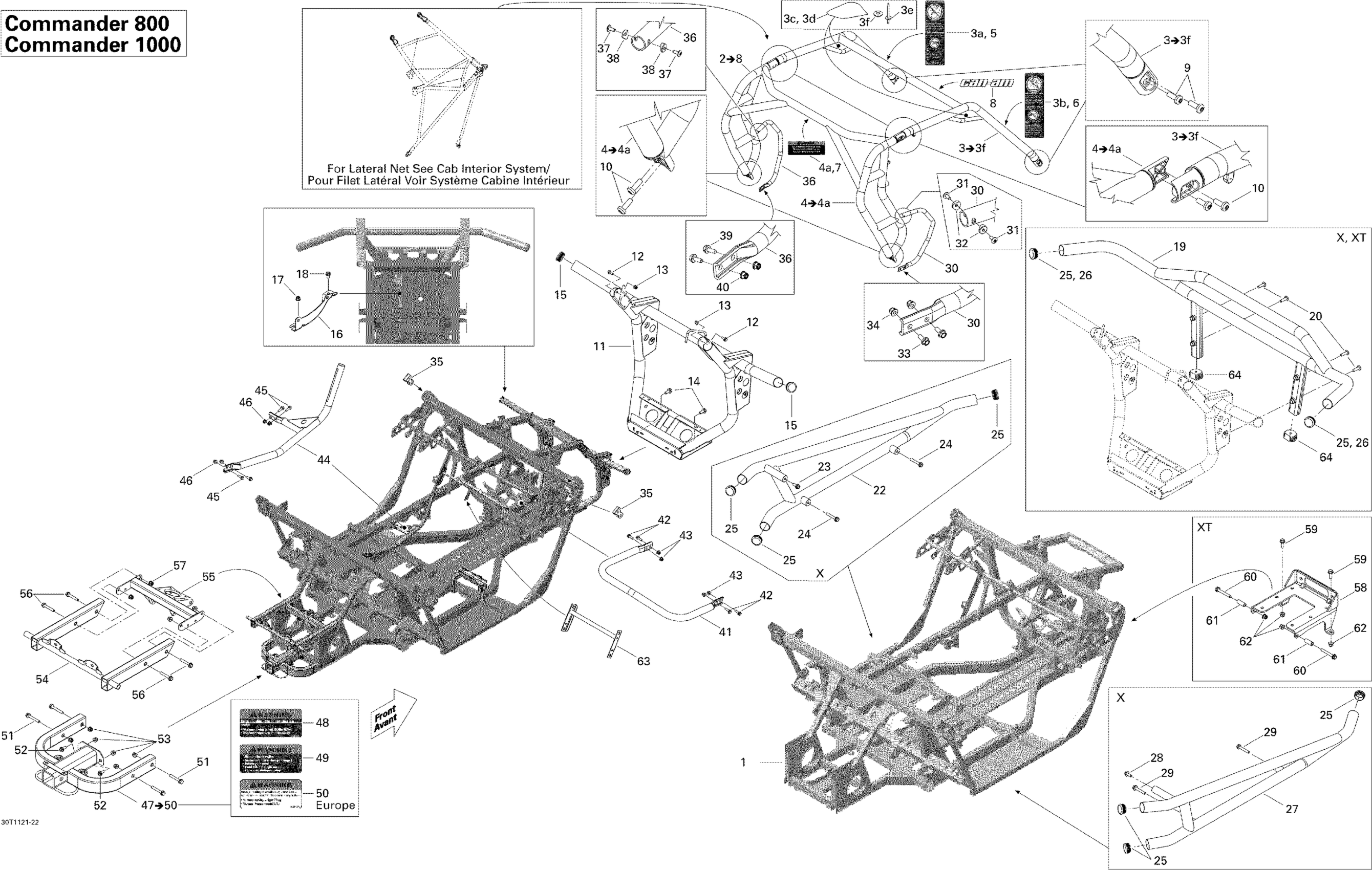

Can-Am Commander 800, 2011 Frame, System STD, XT Diagram

#

Description
Price

1

FRAME - Call your local BRP dealership

715001986

Unavailable

2

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

3

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

3a

WARNING LABEL - Call your local BRP dealership

704902413

Unavailable

3b

WARNING LABEL - Call your local BRP dealership

704902415

Unavailable

3c

LH CAGE CAP MOULDING - Call your local BRP dealership

705004985

$28.43

3d

RH CAGE CAP MOULDING - Call your local BRP dealership

705004986

$28.43

3e

Pop Rivet 3/16”

293150108

$1.23

3f

Flat Washer

250200121

$1.49

4

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

4a

WARNING LABEL - Call your local BRP dealership

704902424

Unavailable

5

WARNING LABEL - Call your local BRP dealership

704902413

Unavailable

6

WARNING LABEL - Call your local BRP dealership

704902415

Unavailable

7

WARNING LABEL - Call your local BRP dealership

704902424

Unavailable

8

Not Available As Spare Parts

XXX

Unavailable

9

Screw Pan M10 X 30

250000848

$1.56

10

Screw Pan M10 X 30

250000848

$1.56

11

Black Front Bumper

705202995

Unavailable

12

Hex. Flange Screw M6 X 16

207661644

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

14

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

15

Cap

705202455

Unavailable

16

Front Differential Support

705201721

Unavailable

17

Hex. Flange Elastic Nut M8

233281414

Unavailable

18

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

Unavailable

19

Black Front Bumper | XT, X

715000958

$321.74

20

Hex Torx Truss M8 X30

250000745

Unavailable

22

Not Available As Spare Parts

XXX

Unavailable

23

Not Available As Spare Parts

XXX

Unavailable

24

Not Available As Spare Parts

XXX

Unavailable

25

Not Available As Spare Parts

XXX

Unavailable

26

Cap

705202455

Unavailable

27

Not Available As Spare Parts

XXX

Unavailable

28

Not Available As Spare Parts

XXX

Unavailable

29

Not Available As Spare Parts

XXX

Unavailable

30

RH SIDE PROTECTOR TUBE - Call your local BRP dealership

705203321

Unavailable

31

Torx Truss M6X14

250000789

$4.41

32

Offset Washer

705202223

Unavailable

33

Hex. Flange Screw M8 X 20

207682044

Unavailable

34

Hex. Flange Elastic Nut M8

233281414

Unavailable

35

Binding Block

705203415

Unavailable

36

LH SIDE PROTECTOR TUBE - Call your local BRP dealership

705203323

Unavailable

37

Torx Truss M6X14

250000789

$4.41

38

Offset Washer

705202223

Unavailable

39

Hex. Flange Screw M8 X 20

207682044

Unavailable

40

Hex. Flange Elastic Nut M8

233281414

Unavailable

41

Black Handle

705203332

Unavailable

42

Hex. Flange Screw M6 X 20

207662044

Unavailable

43

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

44

Console Handle

705202161

Unavailable

45

Hex. Flange Screw M6 X 20

207662044

Unavailable

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

47

TRAILER HITCH ASS'Y - Call your local BRP dealership | Includes 47 to 50

715001251

Unavailable

48

Warning Decal, Towing

704902336

Unavailable

49

Warning Decal, Trailer

704902345

Unavailable

50

Not Available As Spare Parts

XXX

Unavailable

51

Hex. Flange Screw M8 X 50

207685044

Unavailable

52

Hex. Flange Screw M8 X 20

207682044

Unavailable

53

Hex. Flange Elastic Nut M8

233281414

Unavailable

54

BOX HOLDER - Call your local BRP dealership

705203325

Unavailable

55

SUPPORT - Call your local BRP dealership

705203317

Unavailable

56

Hex. Flange Screw M8 X 55

207685544

Unavailable

57

Hex. Flange Elastic Nut M8

233281414

Unavailable

58

Winch Plate | XT

715000704

$129.97

59

Hex. Flange Screw M8 X 25

207682544

$0.90

60

Hex. Flange Screw M8 x 60

207686044

$2.56

61

Bushing

705202499

Unavailable

62

Hex. Flange Elastic Nut M8

233281414

Unavailable

63

Reinforcement Panel

705203330

Unavailable

64

Tube Cap | Europe

705202631

Unavailable
