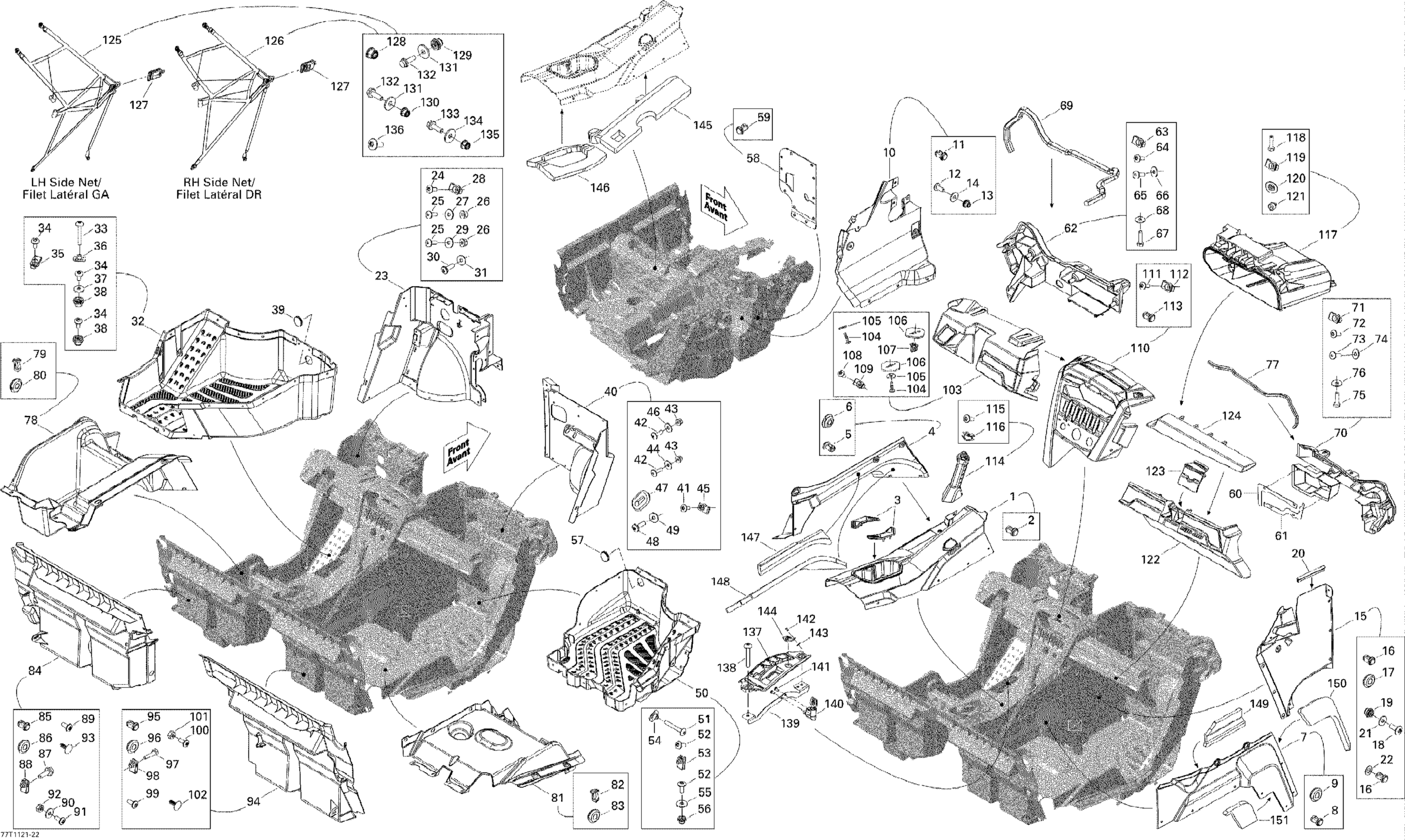

Can-Am Commander 800, 2011 Cab Interior Diagram

#

Description
Price

1

Central Console Ass'y

715001247

$226.12

1

Not Available As Spare Parts

XXX

Unavailable

2

Tuflok Plastic Rivet

293150230

Unavailable

3

Cup Retainer

707900036

Unavailable

4

LH Side Console

707900001

Unavailable

5

Tuflok Plastic Rivet

293150230

Unavailable

6

Grommet

705003264

Unavailable

7

RH Side Console

707900002

Unavailable

8

Tuflok Plastic Rivet

293150230

Unavailable

9

Grommet

705003264

Unavailable

10

Front Side Dash Panel

707900193

Unavailable

11

Tuflok Plastic Rivet

293150230

Unavailable

12

Torx Screw M6 X 20

250000722

Unavailable

13

Threaded Insert M6 X 1.0

250100242

Unavailable

14

Stainless Steel Flat Washer

234062670

$1.74

15

RH Fixe Side Console

707900021

Unavailable

16

Tuflok Plastic Rivet

293150230

Unavailable

17

Grommet

705003264

Unavailable

18

Torx Screw M6 X 20

250000722

Unavailable

19

Threaded Insert M6 X 1.0

250100242

Unavailable

20

Was 293250240 Neoprene Seal

219704451

Unavailable

21

Stainless Steel Flat Washer

234062670

$1.74

22

Washer

506151252

Unavailable

23

LH Front Floor

707900181

Unavailable

24

Torx Screw M6 X 20

250000722

Unavailable

25

Hex. Socket Screw M6 X 20

250000770

Unavailable

26

Hex. Flange Elastic Nut M6

233261494

$1.26

27

Stainless Steel Flat Washer

234062670

$1.74

28

Panel Nut M6 X 1.0

250100198

Unavailable

29

Stainless Steel Flat Washer

234062670

$1.74

30

Torx Screw K50 X 16

250000720

$1.39

31

Flat Washer 6 mm

234062410

$0.64

32

LH Lower Floor

707900022

Unavailable

33

Torx Screw M6 X 45

250000215

Unavailable

34

Torx Screw M6 X 20

250000722

Unavailable

35

Panel Nut M6 X 1.0

250100198

Unavailable

36

Nut Welded, M6

293100003

Unavailable

37

Stainless Steel Flat Washer

234062670

$1.74

38

Threaded Insert M6 X 1.0

250100242

Unavailable

39

Rubber Cover

293250242

Unavailable

40

RH Front Floor

707900004

Unavailable

41

Torx Screw M6 X 20

250000722

Unavailable

42

Hex. Socket Screw M6 X 20

250000770

Unavailable

43

Hex. Flange Elastic Nut M6

233261494

$1.26

44

Stainless Steel Flat Washer

234062670

$1.74

45

Panel Nut M6 X 1.0

250100198

Unavailable

46

Stainless Steel Flat Washer

234062670

$1.74

47

Oblong Grommet

705003668

Unavailable

48

Torx Screw K50 X 16

250000720

$1.39

49

Flat Washer 6 mm

234062410

$0.64

50

RH Lower Floor

707900023

Unavailable

51

Torx Screw M6 X 45

250000215

Unavailable

52

Torx Screw M6 X 20

250000722

Unavailable

53

Panel Nut M6 X 1.0

250100198

Unavailable

54

Nut Welded, M6

293100003

Unavailable

55

Stainless Steel Flat Washer

234062670

$1.74

56

Threaded Insert M6 X 1.0

250100242

Unavailable

57

Rubber Cover

293250242

Unavailable

58

Deflector

707900108

Unavailable

59

Tuflok Plastic Rivet

293150230

Unavailable

60

Upper Seal

293250252

$2.75

61

Bottom Seal

293250253

$2.99

62

SUPPORT_PANEL LH - Call your local BRP dealership

707900029

Unavailable

63

Panel Nut M6 X 1.0

250100198

Unavailable

64

Torx Screw M6 X 20

250000722

Unavailable

65

Torx Screw K50 X 16

250000720

$1.39

66

Flat Washer

224060201

Unavailable

67

Hex. Screw M6 X 25

207162544

Unavailable

68

Flat Washer

224061201

Unavailable

69

Was 293200017 Neoprene Seal

219704365

Unavailable

70

SUPPORT_PANEL RH - Call your local BRP dealership

707900030

Unavailable

71

Panel Nut M6 X 1.0

250100198

Unavailable

72

Torx Screw M6 X 20

250000722

Unavailable

73

Torx Screw K50 X 16

250000720

$1.39

74

Flat Washer

224060201

Unavailable

75

Hex. Screw M6 X 25

207162544

Unavailable

76

Flat Washer

224061201

Unavailable

77

Was 293200017 Neoprene Seal

219704365

Unavailable

78

LH Under Seat Plate Kit

715002356

Unavailable

79

Tuflok Plastic Rivet

293150230

Unavailable

80

Grommet

705003264

Unavailable

81

RH Under Seat Plate

707900006

Unavailable

82

Tuflok Plastic Rivet

293150230

Unavailable

83

Grommet

705003264

Unavailable

84

LH Rear Deflector

707900164

Unavailable

85

Tuflok Plastic Rivet

293150230

Unavailable

86

Grommet

705003264

Unavailable

87

Hex. Flange Screw M6 X 20

207662034

Unavailable

88

Panel Nut M6 X 1.0

250100198

Unavailable

89

Torx Screw K50 X 16

250000720

$1.39

90

Flat Washer 8 mm

234082410

$1.11

91

Torx Truss Screw M6 X 16

250000721

Unavailable

92

Hex. Nut M6

232061600

Unavailable

93

Black, Dart

293730011

Unavailable

94

DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership

707900166

Unavailable

95

Tuflok Plastic Rivet

293150230

Unavailable

96

Grommet

705003264

Unavailable

97

Hex. Flange Screw M6 X 20

207662034

Unavailable

98

Panel Nut M6 X 1.0

250100198

Unavailable

99

Torx Screw K50 X 16

250000720

$1.39

100

Torx Screw M6 X 16

250000755

Unavailable

101

Hex. Flange Elastic Nut M6

233261494

$1.26

102

Black, Dart

293730011

Unavailable

103

Dashboard Ass'y

715001250

$78.43

104

Truss Head Torx Screw K50 X 20

250000297

$1.74

105

Stainless Steel Flat Washer

234062670

$1.74

106

Support Plate

705003841

$0.91

107

Edge Clip

517302785

Unavailable

108

Torx Screw M6 X 20

250000722

Unavailable

109

Panel Nut M6 X 1.0

250100198

Unavailable

110

Central Dashboard Ass'y

715001265

$59.97

110

Not Available As Spare Parts

XXX

Unavailable

111

Torx Screw M5 X 20

250000724

Unavailable

112

Panel Nut M5 X 0.8

250000958

Unavailable

113

Tuflok Plastic Rivet

293150230

Unavailable

114

Passenger Handle

707900011

Unavailable

115

Torx Screw M6 X 20

250000722

Unavailable

116

Connector Tube

707900048

Unavailable

117

Storage Bin

707900009

Unavailable

117

Storage Bin | XT

707900046

Unavailable

118

Hex. Flange Screw M6 X 20

207662034

Unavailable

119

Panel Nut M6 X 1.0

250100198

Unavailable

120

CAP - Call your local BRP dealership

414859400

$2.78

121

Rubber Bumper

293830005

$5.33

122

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

Unavailable

123

Latch

707900031

Unavailable

124

Trim Glove Box

707900062

Unavailable

125

LH Lateral Net | Upper Link 707900049

707900127

Unavailable

126

RH Lateral Net | Upper Link 707900049

707900128

Unavailable

127

Buckle

707900035

Unavailable

128

Hex. Flange Elastic Nut M8

233281414

Unavailable

129

Threaded Insert M6 X 1.0

250100242

Unavailable

130

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

131

Flat Washer 6 mm

234062410

$0.64

132

Hex. Flange Screw M6 X 20

207662044

Unavailable

133

Hex. Flange Screw M8 X 25

207682544

$0.90

134

Flat Washer 8 mm

234082410

$1.11

135

Hex. Flange Elastic Nut M8

233281414

Unavailable

136

Torx Screw M5 X 14

250000742

$1.20

137

Lever Indicator

707900070

Unavailable

137

Not Available As Spare Parts

XXX

Unavailable

138

Torx Screw M6 X 25 | XT Models

250000728

Unavailable

139

Not Available As Spare Parts

XXX

Unavailable

140

Not Available As Spare Parts

XXX

Unavailable

141

Not Available As Spare Parts

XXX

Unavailable

142

Not Available As Spare Parts

XXX

Unavailable

143

Not Available As Spare Parts

XXX

Unavailable

144

Not Available As Spare Parts

XXX

Unavailable

145

Front Central Console Foam

707900619

Unavailable

146

REAR CENTRAL CONSOLE FOAM - Call your local BRP dealership

707900042

Unavailable

147

Left Upper Lateral Console Foam

707900620

Unavailable

148

LH Lower Lateral Console Foam

707900621

Unavailable

149

RH Lateral Console Foam

707900622

Unavailable

150

RH Lateral Console Foam

707900623

Unavailable

151

RH Lateral Console Foam

707900624

Unavailable
