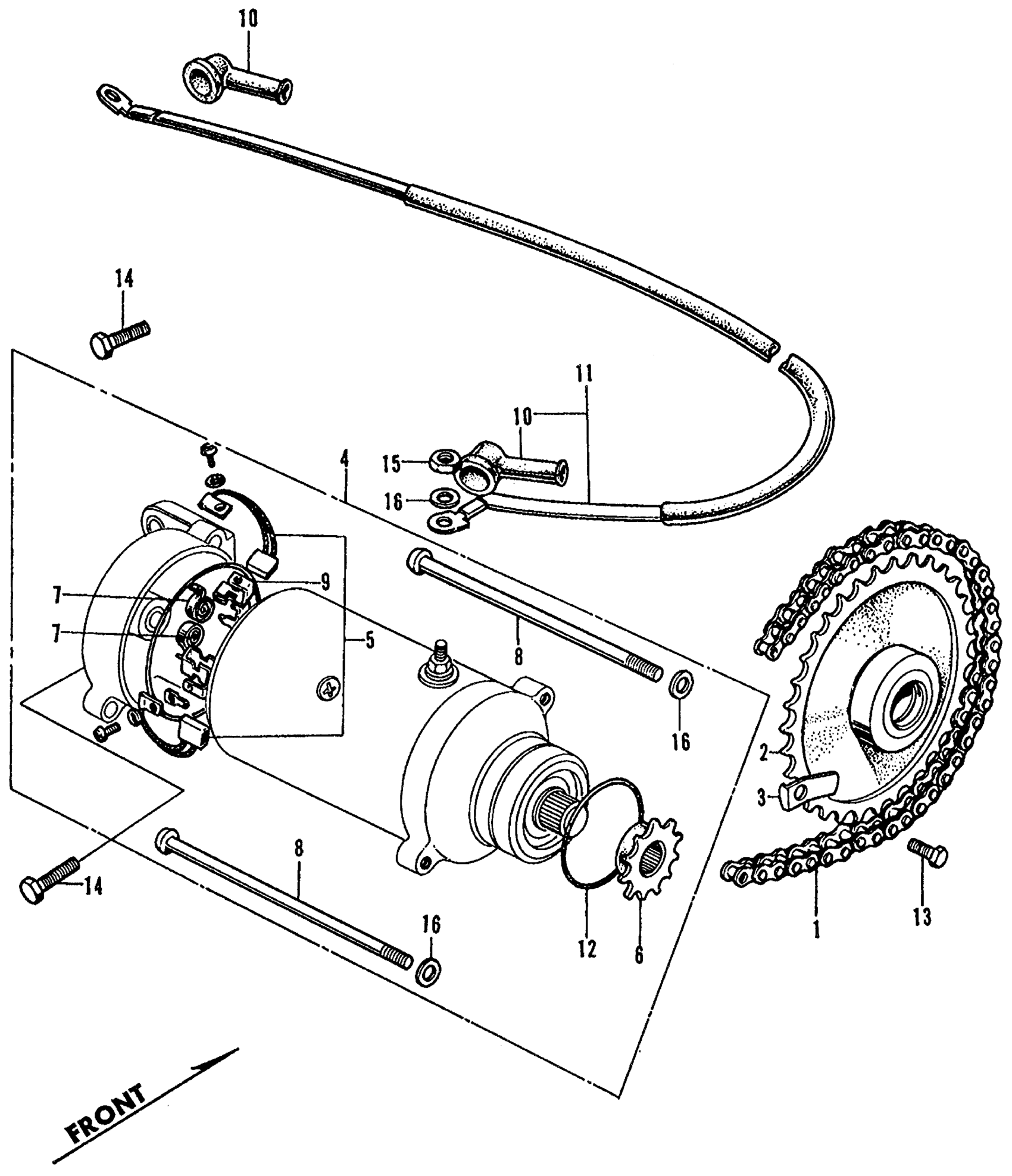

Honda CL450A MOTORCYCLE, JPN, VIN# CL450-1000001 STARTER Diagram

#

Description
Price

1

CHAIN, STARTER (56LE) (DAIDO) (NOT AVAILABLE)

28101-283-003

Unavailable

2

SPROCKET, STARTER (DK219.37T) (NOT AVAILABLE)

28110-292-000

Unavailable

3

PLATE, STARTER SPROCKET SETTING (NOT AVAILABLE)

28117-292-000

Unavailable

4

MOTOR ASSY., STARTER (MITSUBA) (NOT AVAILABLE)

31200-292-158

Unavailable

5

BRUSH SET, CARBON

31201-292-158

$25.33

6

SPROCKET, STARTER MOTOR (MITSUBA) (NOT AVAILABLE)

31202-500-154

Unavailable

7

SPRING, CARBON BRUSH

31204-292-158

$4.01

8

BOLT, GEAR COVER (NOT AVAILABLE)

31205-292-158

Unavailable

9

O-RING (60X1.4) This part replaces 31206-292-158.

31206-402-008

Unavailable

9

O-RING (60X1.4)

31206-402-008

Unavailable

10

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.37

10

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.37

11

CABLE, STARTER MOTOR (NOT AVAILABLE)

32411-283-000

Unavailable

12

O-RING

91309-MA6-000

$4.06

12

O-RING This part replaces 91309-283-000.

91309-MA6-000

$4.06

12

O-RING This part replaces 91309-283-005.

91309-MA6-000

$4.06

13

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

13

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

13

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

14

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.00

14

BOLT, HEX. (6X20)

92101-06020-0A

$1.00

15

NUT, HEX. (6MM)

94002-06000-0S

$1.37

16

WASHER, SPRING (6MM)

94111-06000

$0.91
