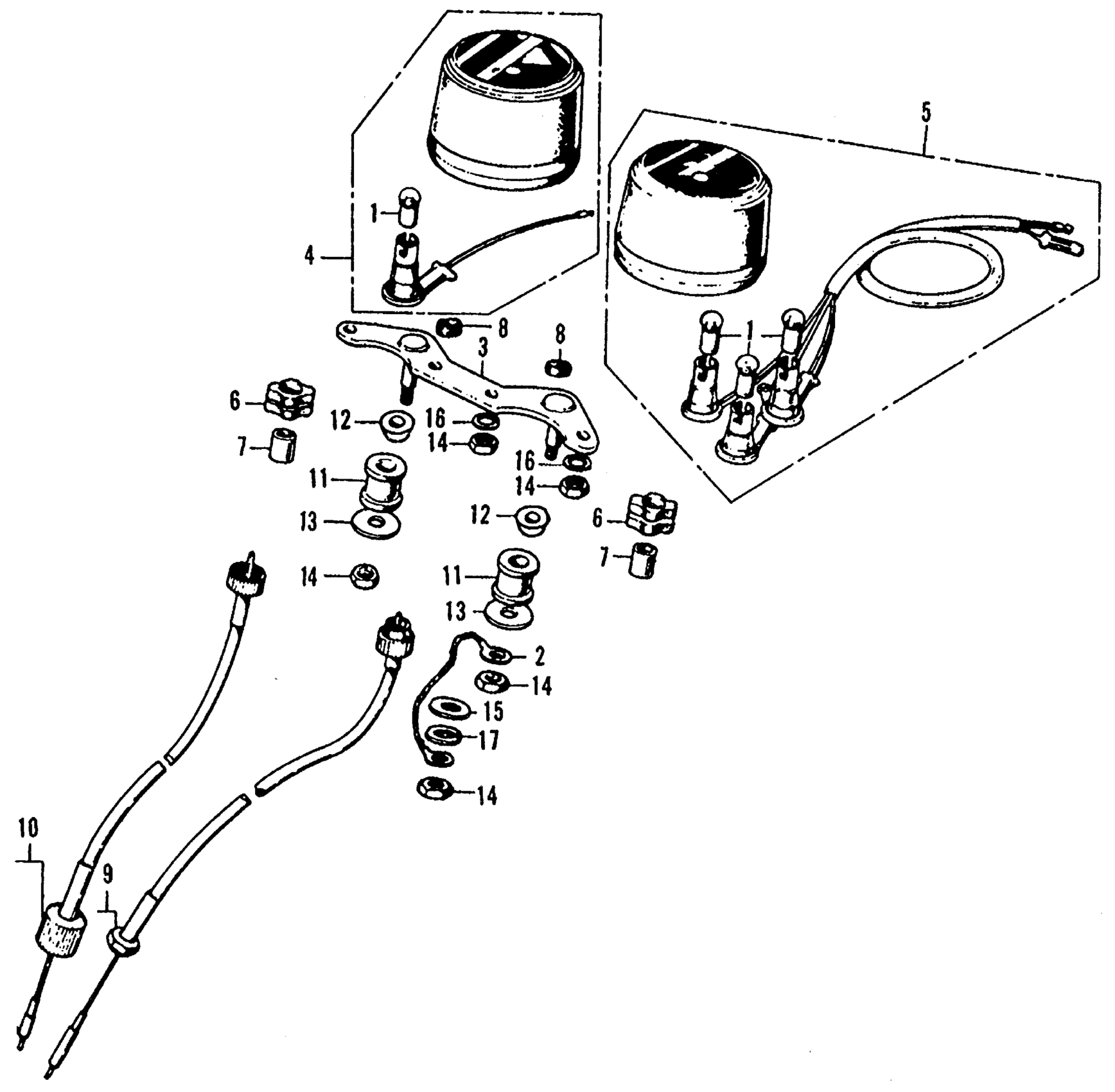

Honda CL450A MOTORCYCLE, JPN, VIN# CL450-1000001 SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

1

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.31

2

WIRE, METER GROUND (NOT AVAILABLE) | Use from Frame SN 1012269

37208-292-000

Unavailable

3

PLATE, METER SET *NH1* (BLACK)

37211-292-010B

Unavailable

4

SPEEDOMETER ASSY. (NOT AVAILABLE)

37230-292-672

Unavailable

5

TACHOMETER ASSY. (NOT AVAILABLE)

37240-292-028

Unavailable

6

RUBBER, SPEEDOMETER CUSHION | Use from Frame SN 1012269 This part replaces 37242-292-000.

37242-292-505

Unavailable

6

RUBBER, SPEEDOMETER CUSHION | Use from Frame SN 1012269

37242-292-505

Unavailable

7

COLLAR, SPEEDOMETER SET (NOT AVAILABLE) | Use from Frame SN 1012269

37243-292-000

Unavailable

8

RUBBER, SPEEDOMETER SET (NOT AVAILABLE) | Use from Frame SN 1012269

37244-292-000

Unavailable

9

CABLE, TACHOMETER (NOT AVAILABLE) This part replaces 37260-292-020.

37260-375-000

Unavailable

9

CABLE, TACHOMETER (NOT AVAILABLE) This part replaces 37260-346-000.

37260-375-000

Unavailable

10

CABLE ASSY., SPEEDOMETER (NOT AVAILABLE)

44830-292-030

Unavailable

11

RUBBER, SPEEDOMETER STAY CUSHION (NOT AVAILABLE)

53236-292-010

Unavailable

12

COLLAR, METER SETTING (NOT AVAILABLE)

53238-292-305

Unavailable

13

WASHER (6.5X20)

90545-292-000

$1.71

14

NUT, HEX. (6MM) | Use from Frame SN 1012269 This part replaces 94001-06000-0S.

94001-06200-0S

$1.37

14

NUT, HEX. (6MM) | Use from Frame SN 1012269

94001-06200-0S

$1.37

15

WASHER, PLAIN (8MM) | Use from Frame SN 1012269

94101-08000

Unavailable

16

WASHER, SPRING (6MM)

94111-06000

$0.91

17

WASHER, SPRING (8MM)

94111-08000

Unavailable
