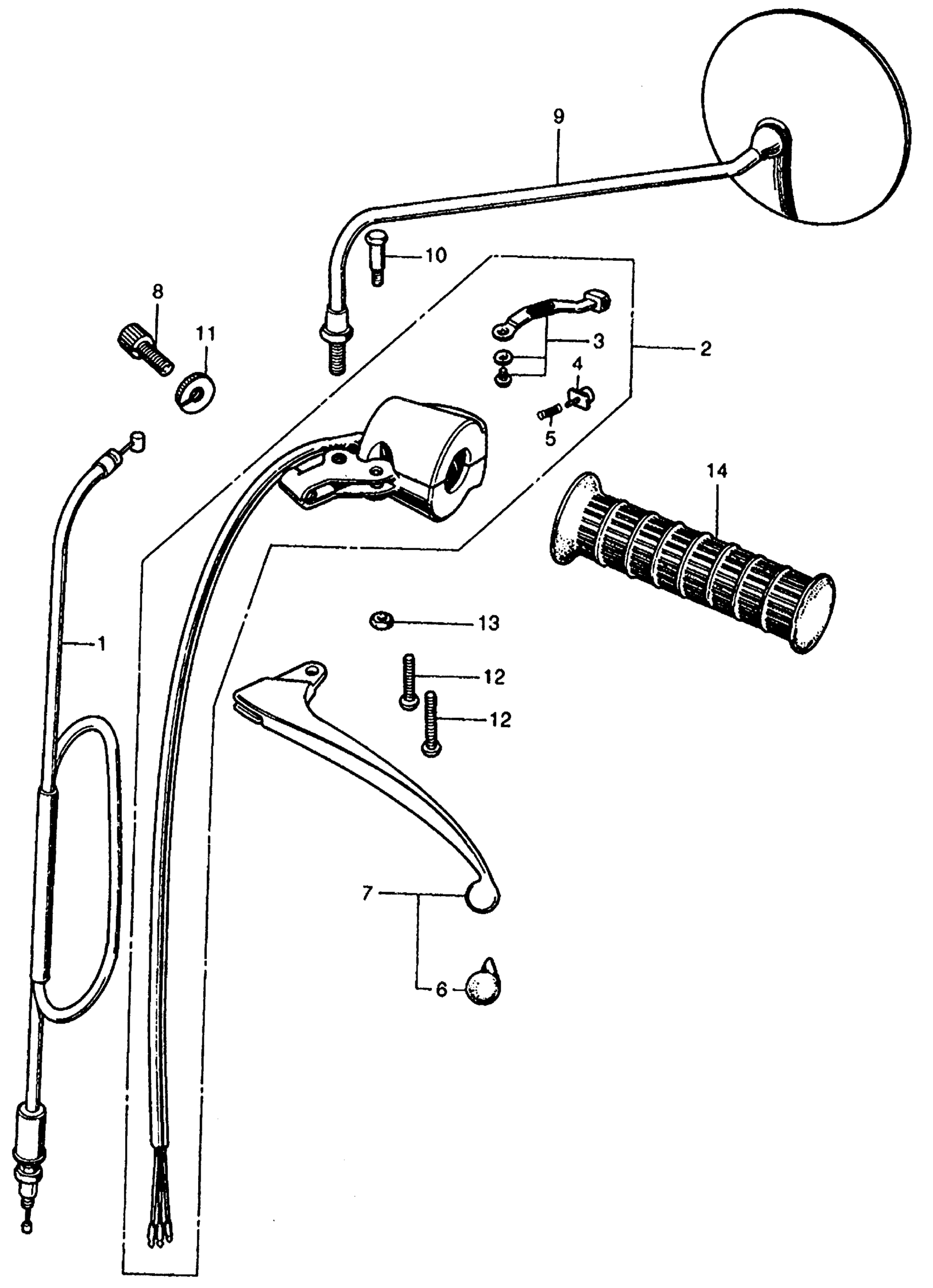

Honda CL450A MOTORCYCLE, JPN, VIN# CL450-1000001 LEFT SWITCH + CABLE II Diagram

#

Description
Price

1

CABLE, CLUTCH This part replaces 22870-347-000.

22870-375-000

Unavailable

1

CABLE, CLUTCH

22870-375-000

Unavailable

2

SWITCH ASSY., TURN SIGNAL & HORN (NOT AVAILABLE)

35250-292-003

Unavailable

3

BUTTON, HORN SWITCH PUSH (NOT AVAILABLE)

35317-310-810

Unavailable

4

BUTTON, HORN SWITCH PUSH

35317-001-310

$4.46

5

SPRING, BUTTON

35318-259-000

$5.15

6

CAP A, LEVER This part replaces 53180-001-670.

95010-16001

$8.57

6

CAP A, LEVER

95010-16001

$8.57

7

LEVER, L. HANDLE This part replaces 53178-329-000.

53178-369-700

$27.11

7

LEVER, L. HANDLE

53178-369-700

$27.11

7

LEVER, L. HANDLE This part replaces 53190-329-000.

53178-369-700

$27.11

7

LEVER, L. HANDLE This part replaces 53190-329-010.

53178-369-700

$27.11

7

LEVER, L. HANDLE This part replaces 53190-369-700.

53178-369-700

$27.11

8

BOLT, CABLE ADJUSTING

53192-268-000

$6.49

9

MIRROR, L. (NOT AVAILABLE)

88120-235-000

Unavailable

10

BOLT, HANDLE LEVER PIVOT This part replaces 90114-268-020.

90114-310-000

$4.88

10

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.88

11

NUT, FIXING

90321-315-670

$7.27

11

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.27

12

SCREW, PAN (5X25)

93500-05025-0A

$1.34

13

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.37

13

NUT, HEX. (6MM)

94001-06200-0S

$1.37

14

GRIP, L. HANDLEBAR

95011-14200

$14.92
