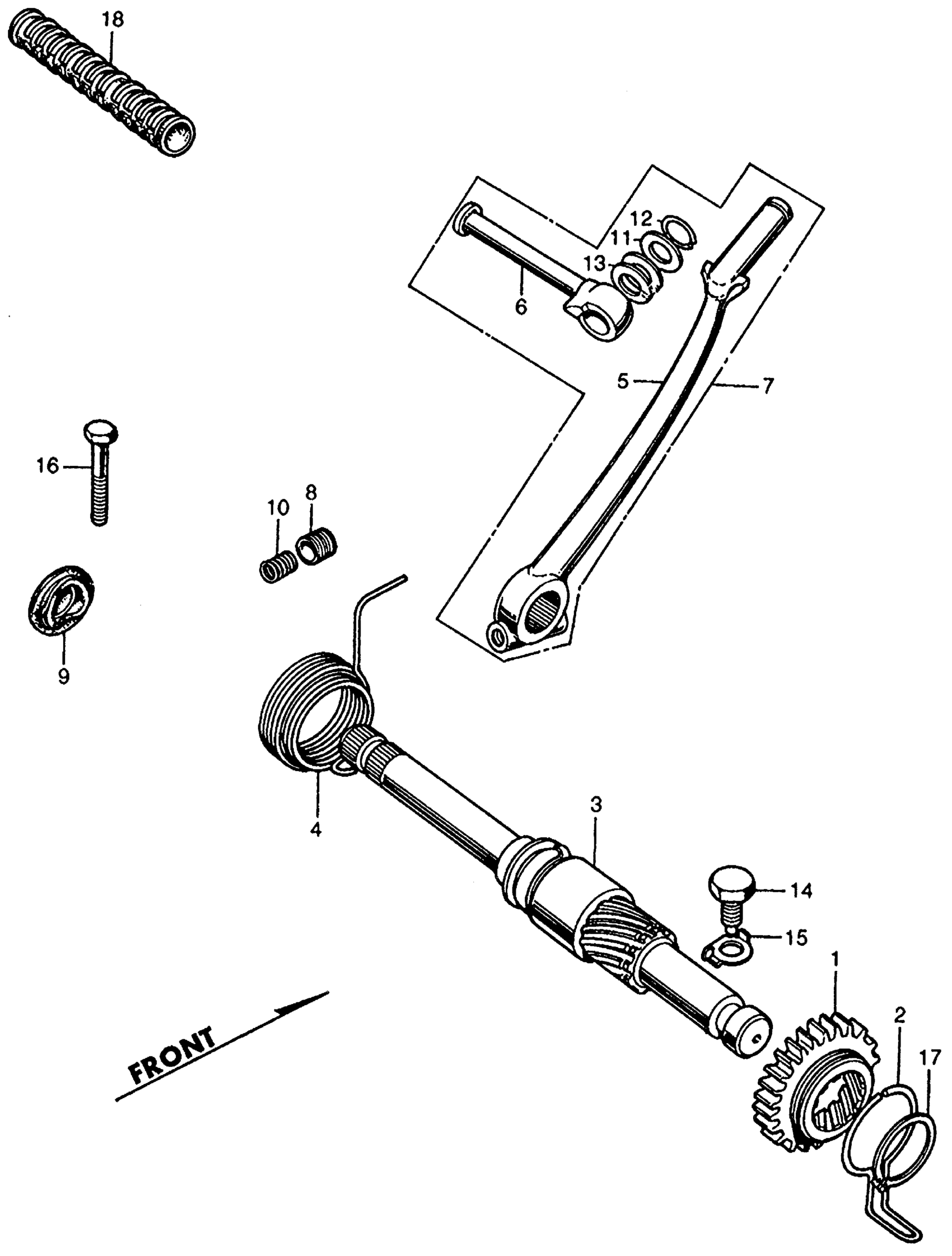

Honda CL450A MOTORCYCLE, JPN, VIN# CL450-1000001 KICK STARTER Diagram

#

Description
Price

1

PINION, STARTER (NOT AVAILABLE)

28212-292-040

Unavailable

2

SPRING, GEARSHIFT ARM (NOT AVAILABLE)

24641-292-000

Unavailable

3

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-292-010

Unavailable

4

SPRING, KICK STARTER (NOT AVAILABLE)

28261-292-000

Unavailable

5

ARM, KICK STARTER (NOT AVAILABLE)

28262-292-000

$148.68

6

PEDAL, KICK STARTER (NOT AVAILABLE)

28263-283-000

Unavailable

7

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-292-000

Unavailable

8

BOLT, KICK ARM (NOT AVAILABLE)

28303-310-010

Unavailable

9

CAP, KICK ARM (NOT AVAILABLE)

28305-310-000

Unavailable

10

SPRING, KICK STARTER STOPPER (NOT AVAILABLE)

28333-310-000

Unavailable

11

WASHER, KICK PEDAL (NOT AVAILABLE)

28485-231-020

Unavailable

12

CLIP, KICK STARTER STOPPER (NOT AVAILABLE)

28486-231-020

Unavailable

13

SPRING, KICK STARTER PEDAL

28487-231-000

$3.65

14

BOLT (8MM) (NOT AVAILABLE)

90081-283-000

Unavailable

15

WASHER (8MM) (NOT AVAILABLE)

90432-283-010

Unavailable

16

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.92

16

BOLT, HEX. (8X32)

92101-08032-0B

$2.92

17

CIRCLIP (OUTER) (25MM)

94510-25000

$1.32

18

RUBBER B, KICK STARTER

95011-52000

$4.30
