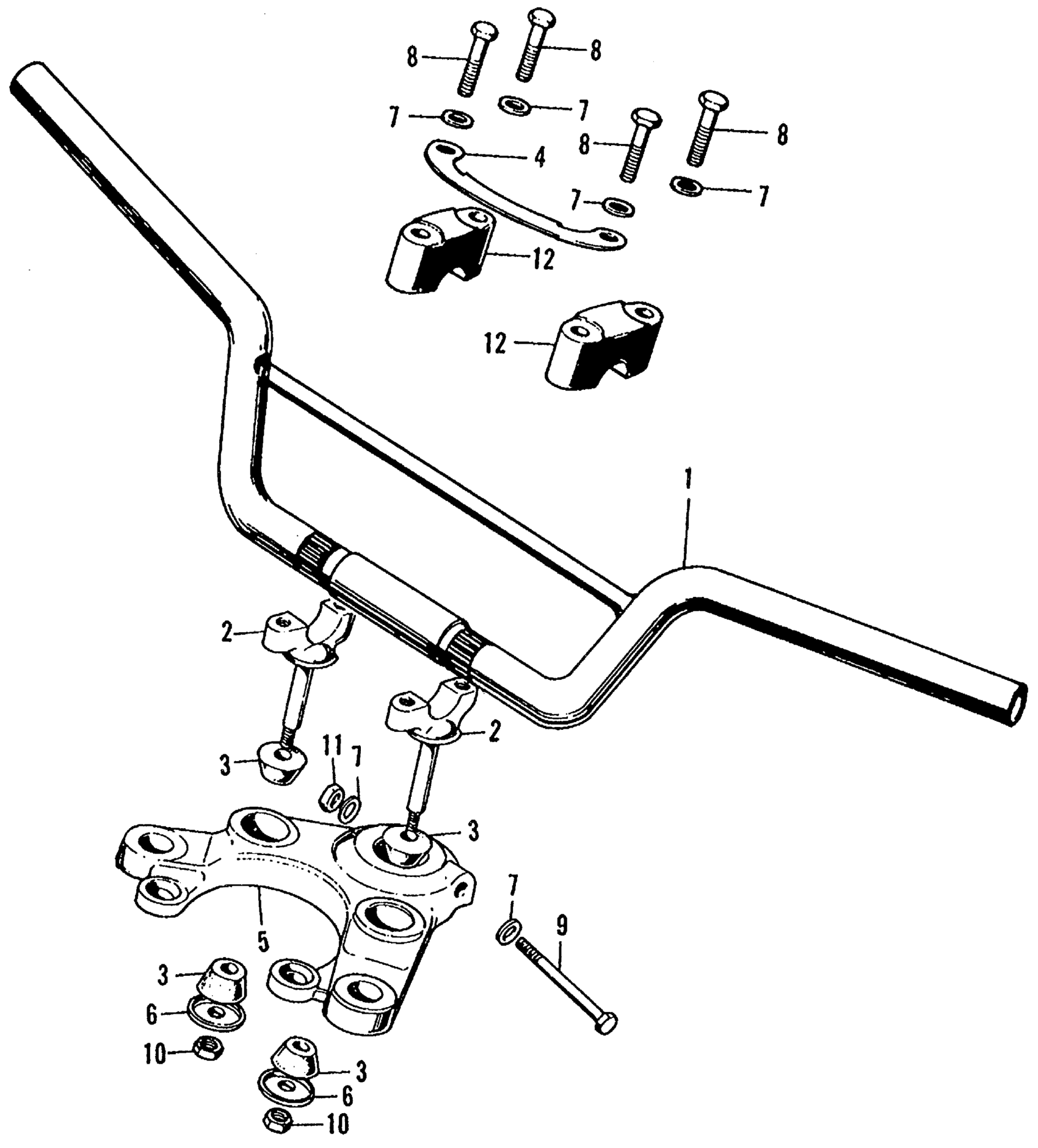

Honda CL450A MOTORCYCLE, JPN, VIN# CL450-1000001 HANDLEBAR + TOP BRIDGE Diagram

#

Description

Price

1

HANDLEBAR (NOT AVAILABLE)

53100-294-000

Unavailable

2

HOLDER, HANDLEBAR (LOWER)

53132-292-010

Unavailable

3

RUBBER, HANDLEBAR CUSHION (NOT AVAILABLE)

53133-283-010

Unavailable

4

HOLDER, CABLE (NOT AVAILABLE)

53139-292-000

Unavailable

5

BRIDGE, FORK TOP

53230-292-010

Unavailable

6

WASHER, RUBBER

90535-292-000

$1.97

7

WASHER, PLAIN (8MM)

94101-08000

Unavailable

8

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.80

8

BOLT, HEX. (8X32)

92101-08032-0B

$2.80

9

BOLT, HEX. (8X74) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-08074-0B.

92101-08074-0B

Unavailable

9

BOLT, HEX. (8X74) (SOURCE: VINTAGE PARTS INC.)

92101-08074-0B

Unavailable

10

NUT, HEX. (8MM)

94001-08000-0S

$1.31

11

NUT, HEX. (8MM)

94001-08020-0S

$0.82

12

HOLDER B1, HANDLEBAR (UPPER)

95014-22100

$11.14
