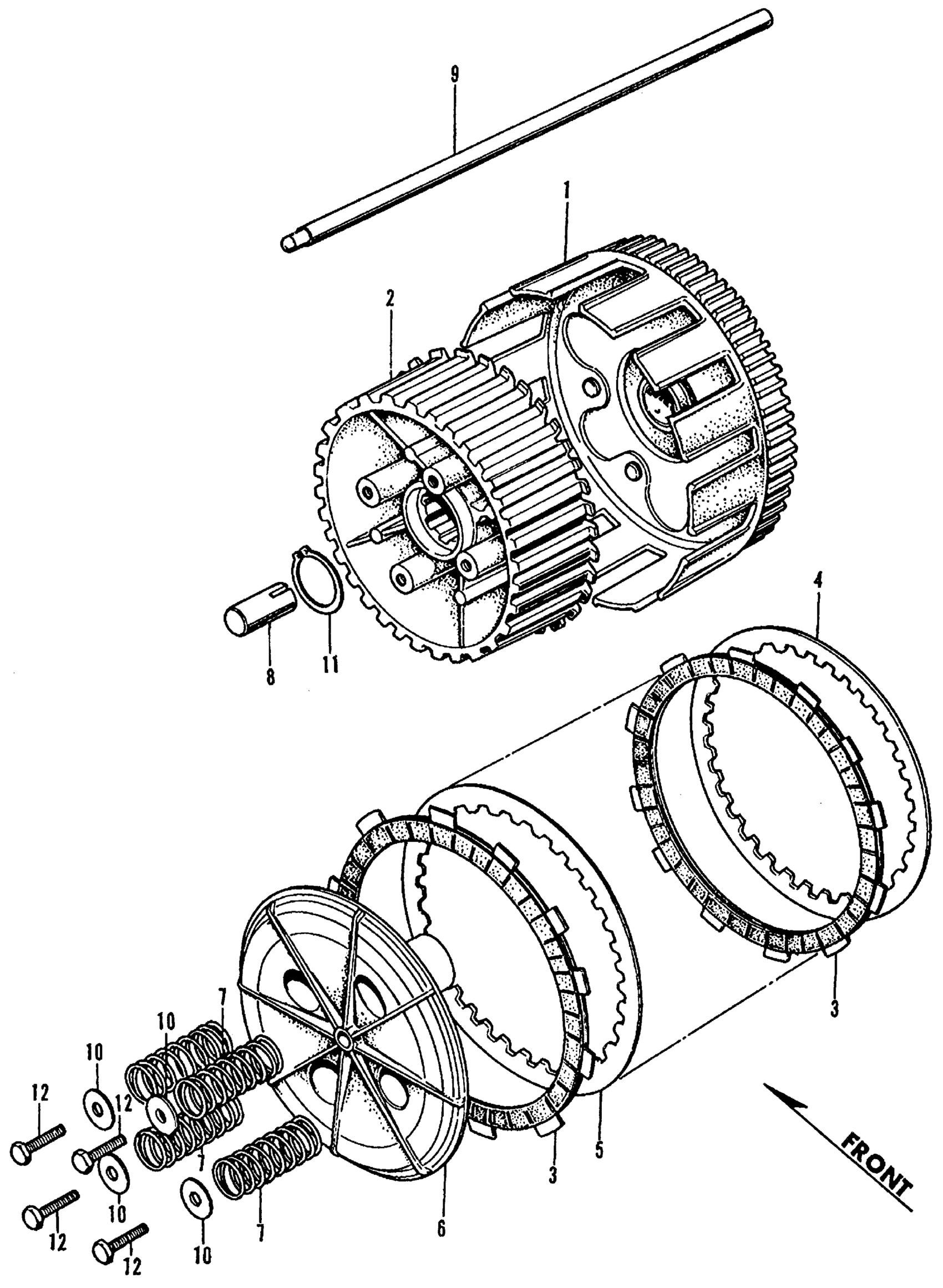

Honda CL450A MOTORCYCLE, JPN, VIN# CL450-1000001 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER) (76T)

22100-292-040

Unavailable

2

CENTER, CLUTCH (NOT AVAILABLE) | Use up to Engine SN 1003615

22120-283-000

Unavailable

2

CENTER, CLUTCH (NOT AVAILABLE) | Use from Engine SN 1003616

22120-292-030

Unavailable

3

DISK, CLUTCH FRICTION

22201-MA7-000

$15.27

3

DISK, CLUTCH FRICTION This part replaces 22201-283-000.

22201-MA7-000

$15.27

4

PLATE A, CLUTCH (NOT AVAILABLE)

22311-292-000

Unavailable

5

PLATE, CLUTCH

22321-MG8-000

$15.56

5

PLATE, CLUTCH This part replaces 22321-283-000.

22321-MG8-000

$15.56

6

PLATE, CLUTCH PRESSURE (NOT AVAILABLE) | Use up to Engine SN 1003615

22351-283-000

Unavailable

6

PLATE, CLUTCH PRESSURE (NOT AVAILABLE) | Use from Engine SN 1003616

22351-292-000

Unavailable

7

SPRING, CLUTCH (NOT AVAILABLE) | Use up to Engine SN 1003615

22401-283-000

Unavailable

7

SPRING, CLUTCH | Use from Engine SN 1003616

22401-292-000

$12.34

8

PIECE, CLUTCH LIFTER JOINT (NOT AVAILABLE)

22838-292-000

Unavailable

9

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22850-323-000

Unavailable

10

WASHER (6X19) | Use up to Engine SN 1003615

90481-259-000

Unavailable

10

WASHER (6X19) | Use from Engine SN 1003616

90481-259-000

Unavailable

11

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.12

12

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.71

12

BOLT, HEX. (6X25)

92101-06025-0A

$1.71
