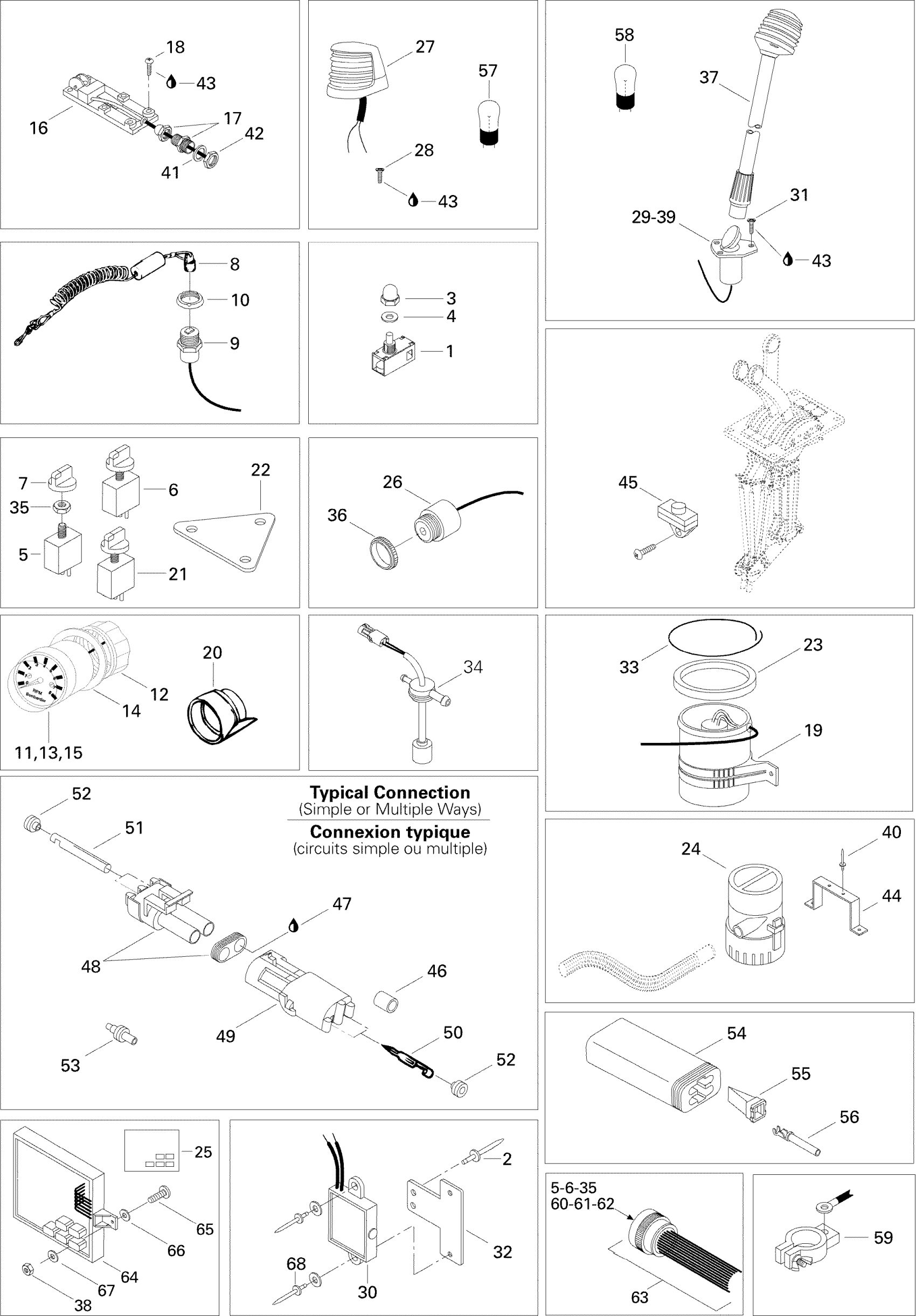

Sea-doo Challenger, 5896, 1996 Electrical Accessories Diagram

#

Description
Price

1

RH IGNITION SWITCH - Call your local BRP dealership

278000622

Unavailable

2

Pop RIvet 1/8 X ,375

293150285

$0.23

3

IGNITION SWITCH CAP, RED - Call your local BRP dealership

278000565

Unavailable

4

Flat Washer

213200017

Unavailable

5

Fan Switch

278000540

Unavailable

6

Light Switch

278000541

Unavailable

7

SWITCH CAP - Call your local BRP dealership

278000542

Unavailable

8

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$68.87

9

Safety Switch This part replaces 278002325.

278002773

$89.67

10

Safety Nut (DESS Switch)

278002963

$2.72

11

Speedometer

278000742

Unavailable

12

Gauge Nut

278000743

Unavailable

13

Tachometer

278000744

Unavailable

14

Gasket

293250040

Unavailable

15

Fuel/Oil Gauge

278000745

Unavailable

16

Speed Sensor | Includes 17

278000276

Unavailable

17

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

$15.02

18

SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership

216351060

Unavailable

19

Terminal 45°, Big Hole

278000538

Unavailable

20

GAUGE SUPPORT - Call your local BRP dealership

293720005

Unavailable

21

Fan Switch

278000540

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Seal Tray 1000Mm Long

219704368

$12.91

24

Bilge Pump

278000643

Unavailable

25

Fuse Decal

219900783

Unavailable

26

BUZZER ASSEMBY - Call your local BRP dealership | Includes 15 - 17.

278000887

Unavailable

27

Front Lamp Ass'y | Includes 63 - 66.

278000604

Unavailable

28

Phillips Screw M4 X 16

208641660

$0.74

29

Rear Light Base Ass'y | Includes 33 to 36

278000674

Unavailable

30

Water Sensor

278000864

Unavailable

31

SCREW-CTSK.FL.HD.PH.DIN.965A-A2 - Call your local BRP dealership

216142060

Unavailable

32

Water Sensor Support

292000366

Unavailable

33

BROACH - Call your local BRP dealership

204000133

Unavailable

34

Oil Level Sensor

278000478

Unavailable

35

Switch Nut

278000647

Unavailable

36

Buzzer Nut

278000707

Unavailable

37

POLE-REAR LAMP - Call your local BRP dealership | Includes 58

278000676

Unavailable

38

Hex. Elastic Stop Nut M6

232561600

$0.92

39

Rear Lamp Base Ass'y | Includes 12 to 16

204471177

Unavailable

40

Pop RIvet 1/8 X ,375

293150285

$0.23

41

SEAL WASHER - Call your local BRP dealership

278000416

$6.31

42

LOCKING NUT - Call your local BRP dealership

293710032

$7.09

43

Loctite 243, 10 ml

293800060

$20.77

44

Bilge Pump Support

292000236

Unavailable

45

NEUTRAL SWITCH ASS'Y - Call your local BRP dealership

278001195

Unavailable

46

Insulation Sheath

278000231

$4.13

47

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

48

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

48

Male Connector, 2 Circuits

278000220

$11.02

48

Male Housing, 3 Circuits

278000273

$7.59

48

Male Housing, 4 Circuits

278000395

$15.02

48

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

49

Female Housing, 1 Circuit

278000161

$8.98

49

Female Housing, 2 Circuits

278000217

$7.59

49

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

49

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

49

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

50

Male Terminal

409004300

$5.46

50

Male Terminal | XT Models

278000222

$2.55

50

Male Terminal

278000230

$3.48

51

Female Terminal

409007300

$0.36

51

Female Terminal

278000223

$2.55

52

Wire Seal

278000218

$3.48

52

Wire Seal

278001065

$6.03

53

Wire Seal

278000216

$2.55

54

Male Connector, 4 Circuits | CE

278000739

$14.92

55

Male Lock, 4 Circuits | CE

278000738

$2.91

56

Female Terminal

278000632

$1.69

57

Bulb Front Lamp

278000765

Unavailable

58

Bulb

278000766

Unavailable

59

Battery Pole (Positive)

278000679

Unavailable

59

Battery Pole (Negative)

278000680

Unavailable

60

Male Housing(Canon)

278000870

Unavailable

61

Female Terminal(Canon)

278000871

Unavailable

62

Female terminal(Canon)

278000872

Unavailable

63

Harness Ass’y | Includes 5,6,35,60,61,62

278000747

Unavailable

64

Block-Fuse

278000863

Unavailable

65

SCREW-PAN HD.PH.DIN.7985A-A2 - Call your local BRP dealership

211000009

Unavailable

66

Flat Washer M6, Stainless

234062600

$0.64

67

Stainless Flat Washer M6

234061600

$0.25

68

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable
