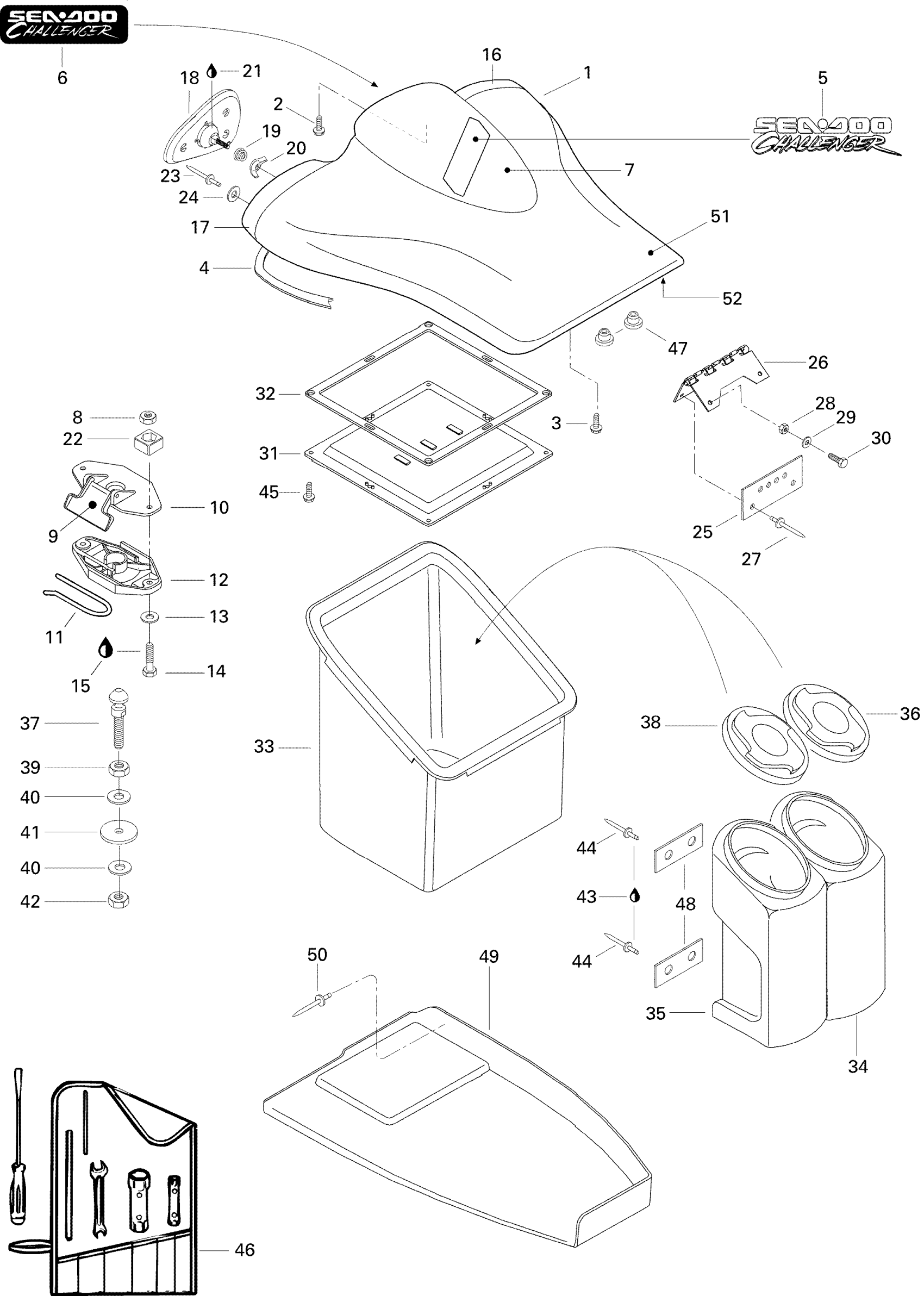

Sea-doo Challenger, 5896, 1996 Storage Compartment, Front Diagram

#

Description
Price

1

Storage Cover Kit (Marine Green) | Includes 1 to 8 and 16,17,22,23,24,25,26,27,50,51

295500345

Unavailable

2

Screw K40 X 10

241140060

$1.25

3

Hex. Flange Screw K40 X 16

241141660

$1.25

4

Seal Tray 1000Mm Long

219704368

$12.91

5

Storage Cover Decal

219900588

Unavailable

6

Dash Decal

219900760

Unavailable

7

Deflec tor (Green)

269500230

Unavailable

8

Hex. Elastic Stop Nut M6

232561600

$0.92

9

Latch Ass'y

269700109

$20.12

10

Latch Ass'y

269700109

$20.12

11

Latch Spring

269700017

$7.27

12

Latch Ass'y

269700109

$20.12

13

Stainless Flat Washer M6

234061600

$0.25

14

Hex. Screw M6 X 35

207163560

$1.17

15

Loctite 243, 10 ml

293800060

$20.77

16

Right Mirror Housing

269500248

Unavailable

17

Left Mirror Housing

269500249

Unavailable

18

RH Mirror | Includes 3 to 4

269500055

Unavailable

18

LH Mirror | Includes 3 to 4

269500056

Unavailable

19

Mirror Spring

269500082

Unavailable

20

WING NUT M6 - Call your local BRP dealership

232661600

$6.27

21

Synthetic Grease, 400 G

293550010

Unavailable

22

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

23

Pop Rivet 3/16"

293150008

$0.40

24

Flat Washer, Emhart

213200016

$0.68

25

Retainer Plate

269500107

Unavailable

26

Stainless Hinge

269500112

Unavailable

27

Pop Rivet 3/16"

293150039

$1.37

28

Hex. Elastic Nut M5 | X

232551600

$0.91

29

Flat Washer M5, Stainless

234051600

$0.64

30

SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership

215051660

$1.20

31

Access Cover Ass'y (Green) (Incl. 33) | Includes 31 - 32.

269500250

Unavailable

32

Seal

293200023

Unavailable

33

STORAGE TRAY - Call your local BRP dealership

269501940

Unavailable

34

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

$23.82

35

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

$23.82

36

Storage Housing Cap

269500237

Unavailable

37

LATCH STUD - Call your local BRP dealership

291000691

Unavailable

38

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

39

Hex. Jam Nut M10

232100600

$1.85

40

Flat Washer 10 mm, Stainless

234002600

$1.85

41

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

42

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

43

Silicone Sealant 51388, 300 ml

296000309

$35.72

44

Rivet

293150017

Unavailable

45

Hex. Flange Screw K40 X 16

241141660

$1.25

46

Tool Kit

295000066

Unavailable

47

GROMMET - Call your local BRP dealership

293720017

Unavailable

48

GASKET - Call your local BRP dealership

293250037

$5.00

49

Not Available As Spare Part - Friction Washer

Unavailable

50

Pop Rivet 3/16"

293150014

$0.87

51

Upper Cover Storage

269500246

Unavailable

52

Lower Cover Storage

269500247

Unavailable
