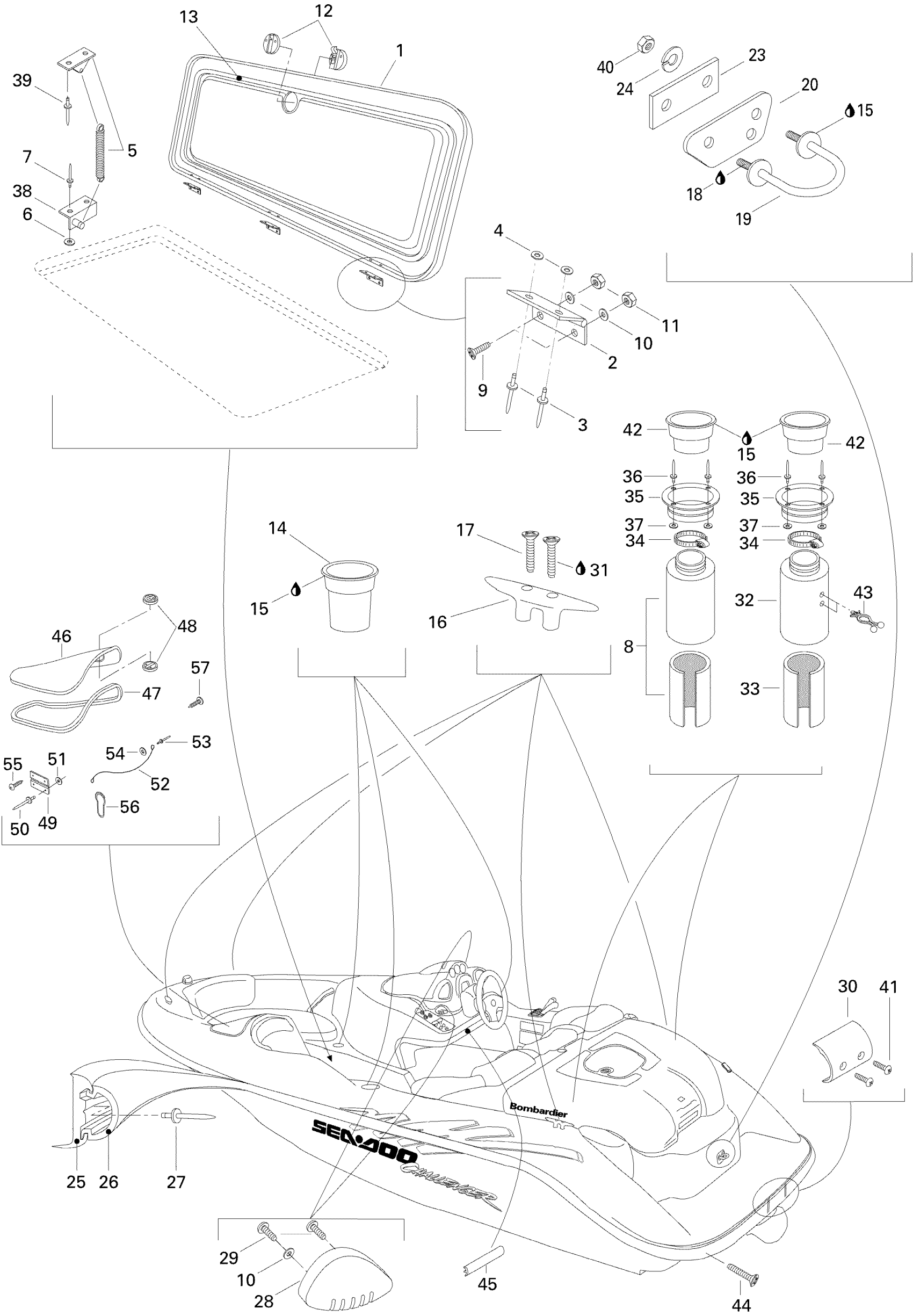

Sea-doo Challenger, 5896, 1996 Central Cover And Accessories Diagram

#

Description
Price

1

Central Cover

291000737

Unavailable

2

HINGE - Call your local BRP dealership

204072601

Unavailable

3

Pop Rivet 3/16"

293150039

$1.37

4

Flat Washer M5, Stainless

234051600

$0.64

5

SPRING SEAT - Call your local BRP dealership

204000071

Unavailable

6

Flat Washer 5 mm, Stainless

234052600

$0.64

7

Pop Rivet 3/16"

293150039

$1.37

8

Vent Hose Ass'y R.H

291000708

Unavailable

9

SCREW-CTSK.FL.HD.PH.DIN.965A-A2 - Call your local BRP dealership

216142060

Unavailable

10

Flat Washer 4 mm

234040600

$0.46

11

Elastic Stop Nut M4

232541600

$0.92

12

Latch (White)

291000836

Unavailable

13

Seal Tray 1000Mm Long

219704368

$12.91

14

CUP HOLDER - Call your local BRP dealership | STD

291000619

$12.68

15

Silicone Sealant 51388, 300 ml

296000309

$35.72

16

Cleat

291000618

Unavailable

17

Allen Screw M6 x 55

215965560

Unavailable

18

Loctite 271, 10 ml

293800005

$20.77

19

U-CLAMP - Call your local BRP dealership

292000063

Unavailable

20

Finition Plate

291000544

Unavailable

21

Not Available As Spare Parts

XXX

Unavailable

22

Not Available As Spare Parts

XXX

Unavailable

23

RETAINING PLATE - Call your local BRP dealership

291000307

$11.06

24

Lock Washer 8 mm, Stainless

234181601

$0.46

25

Bumper extrusion (Grape)

291000775

Unavailable

26

Bumper Moulding (Grape)

291000776

Unavailable

27

Pop Rivet 3/16"

293150013

$1.11

28

Ventilation Grill

291000881

Unavailable

29

Flange Screw K40 X 20

241642060

$1.09

30

Bumper Cover

291000777

Unavailable

31

Loctite 243, 10 ml

293800060

$20.77

32

Tube Vent Rear

291000376

$28.43

33

Sound Damping

291000400

Unavailable

34

Tridon Clamp

293650054

$7.51

35

Hose Support

291000641

Unavailable

36

Pop Rivet 3/16"

293150014

$0.87

37

Flat Washer 5 mm

234051500

$0.69

38

Spring Bracket

291000719

Unavailable

39

RIVET_POP 1/8 - Call your local BRP dealership

293150026

$0.29

40

Hex. Nut M8

232081600

$1.22

41

Phillips Tapping Screw M4.2 X 32

209943260

$1.45

42

Cup Holder

291000914

Unavailable

43

ATTACHE *BRACKET - Call your local BRP dealership

291000714

Unavailable

44

Self-Tapping Screw

211000068

Unavailable

45

Console Trim, White

291000778

Unavailable

46

Storage Door

291000753

$387.66

47

BLACK TRIM, METER - Call your local BRP dealership

204070055

Unavailable

48

Latch (White)

291000836

Unavailable

49

Hinge

269700031

$7.80

50

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

$0.35

51

Flat Washer M3, Stainless

234032600

$0.54

52

RETAINER CABLE - Call your local BRP dealership

204000117

$37.66

53

Pop Rivet 3/16"

204000081

$1.37

54

Flat Washer 5 mm, Stainless

234052600

$0.64

55

Socket Head Screw M4 X 16

205441660

$1.45

56

CABLE CLIP - Call your local BRP dealership

293750000

$15.35

57

Dart

293730013

Unavailable
