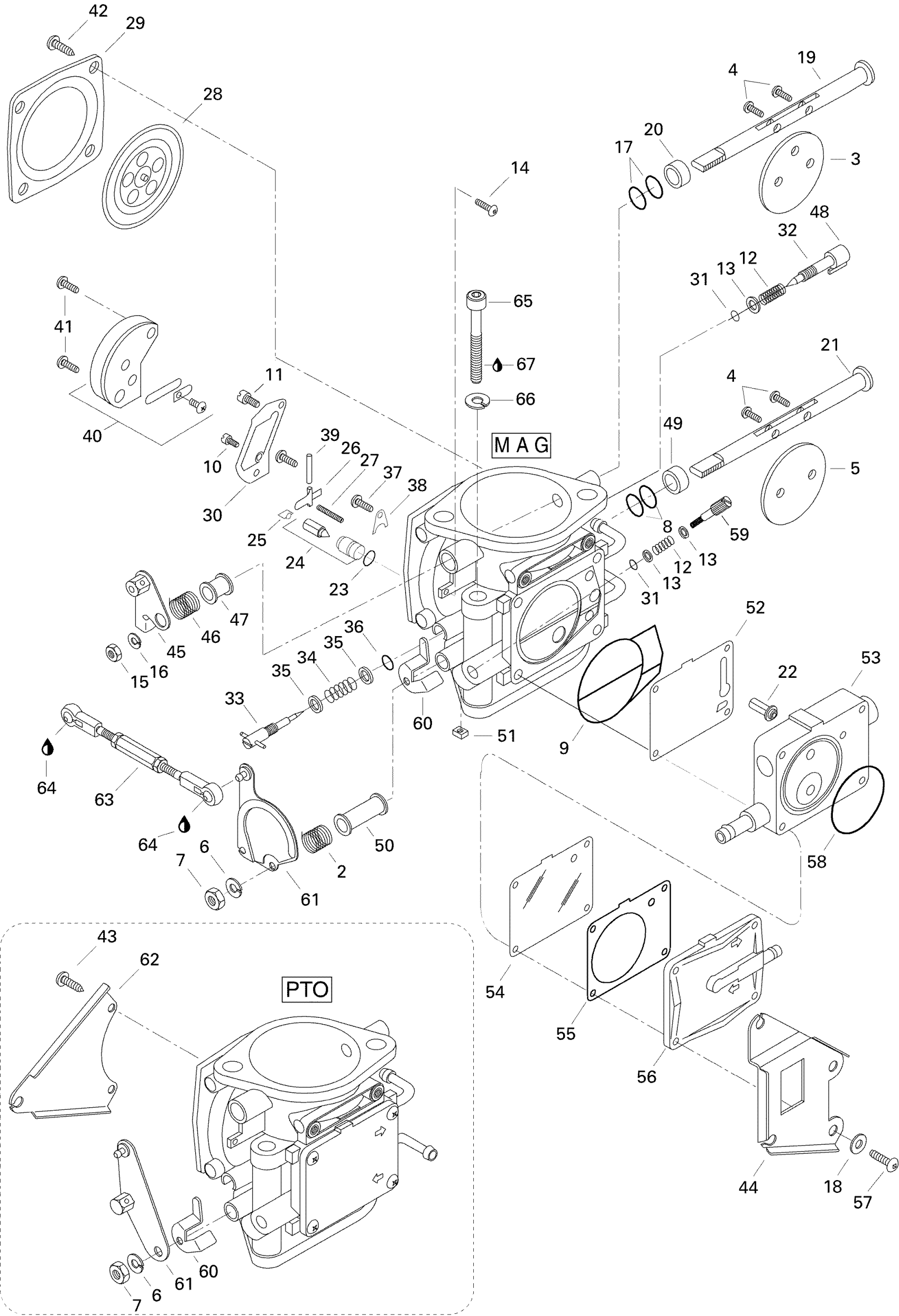

Sea-doo Challenger, 5896, 1996 Carburetor MAG Diagram

#

Description
Price

1

Carburetor Ass'y MAG Side | Includes 1 to 62

270500284

Unavailable

2

Spring | CHALLENGER 1800 5679 MAG.

270500097

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

SPRING WASHER - Call your local BRP dealership

270500011

$8.43

7

Nut

270500012

Unavailable

8

Sealing Ring

270500222

Unavailable

9

O-Ring

270500104

Unavailable

10

Pilot Jet 70

270500175

Unavailable

11

MAIN JET 142.5 - Call your local BRP dealership | CHALLENGER 1800 5679 MAG.

270500209

Unavailable

12

SPRING - Call your local BRP dealership

270500091

$8.68

13

Washer

270500136

Unavailable

14

Screw

270500228

Unavailable

15

NUT - Call your local BRP dealership

270500229

$9.97

16

Spring Washer

270500230

Unavailable

17

SEALING RING - Call your local BRP dealership

270500234

$16.89

18

Washer | CHALLENGER MAG.

270500139

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

RING - Call your local BRP dealership

270500239

$9.97

21

Not Available As Spare Part - Friction Washer

Unavailable

22

FUEL FILTER - Call your local BRP dealership

270500115

Unavailable

23

O-RING - Call your local BRP dealership

270500127

Unavailable

24

Needle Valve 1.5

270500241

$33.12

25

CLIP - Call your local BRP dealership

270500129

$10.74

26

NEEDLE VALVE LEVER - Call your local BRP dealership

270500128

$14.58

27

SPRING - Call your local BRP dealership

270500267

Unavailable

28

DIAPHRAGM ASS'Y - Call your local BRP dealership

270500132

$47.66

29

COVER - Call your local BRP dealership

270500133

$53.05

30

GASKET - Call your local BRP dealership

270500131

$29.28

31

O-RING - Call your local BRP dealership

270500144

$10.74

32

Adjuster Screw

270500113

Unavailable

33

IDLE ADJUSTING SCREW - Call your local BRP dealership

270500020

$26.11

34

SPRING - Call your local BRP dealership

270500019

Unavailable

35

Washer

270500018

Unavailable

36

O-RING - Call your local BRP dealership

270500119

Unavailable

37

Screw And Spring Washer

270500155

Unavailable

38

PLATE - Call your local BRP dealership

270500125

Unavailable

39

Pin

270500038

Unavailable

40

VALVE ASS'Y - Call your local BRP dealership

270500124

$43.05

41

SCREW - Call your local BRP dealership

270500123

Unavailable

42

Screw

270500243

Unavailable

43

Not Available As Spare Part - Friction Washer

Unavailable

44

Bracket | CHALLENGER 1800 5679 MAG.

270500270

Unavailable

45

Choke lever

270500271

Unavailable

46

SPRING - Call your local BRP dealership

270500248

Unavailable

47

Ring

270500110

Unavailable

48

Cap

270500154

Unavailable

49

Ring | CHALLENGER 1800 5679 MAG.

270500221

Unavailable

50

RING - Call your local BRP dealership

270500192

$9.97

51

Nut

270500249

Unavailable

52

GASKET - Call your local BRP dealership

270500103

$15.02

53

Body Pump Ass'y | CHALLENGER MAG.

270500269

Unavailable

54

DIAPHRAGM - Call your local BRP dealership

270500106

$10.98

55

Gasket

270500146

Unavailable

56

PUMP COVER - Call your local BRP dealership

270500108

$63.05

57

Screw

270500224

Unavailable

58

O-RING - Call your local BRP dealership

270500102

Unavailable

59

Adjuster Screw

270500288

Unavailable

60

Throttle Lever | EXPLORER 5824 PTO.

270500142

Unavailable

61

Throttle Lever Ass'y

270500266

Unavailable

62

Not Available As Spare Part - Friction Washer

Unavailable

63

Carburator Linkage Rod

270500256

Unavailable

64

Synthetic Grease, 400 G

293550010

Unavailable

65

Screw Allen M8 x 75

215987560

Unavailable

66

Lock Spring Washer 8 mm, Stainless

234180602

$1.12

67

Loctite 243, 10 ml

293800060

$20.77
