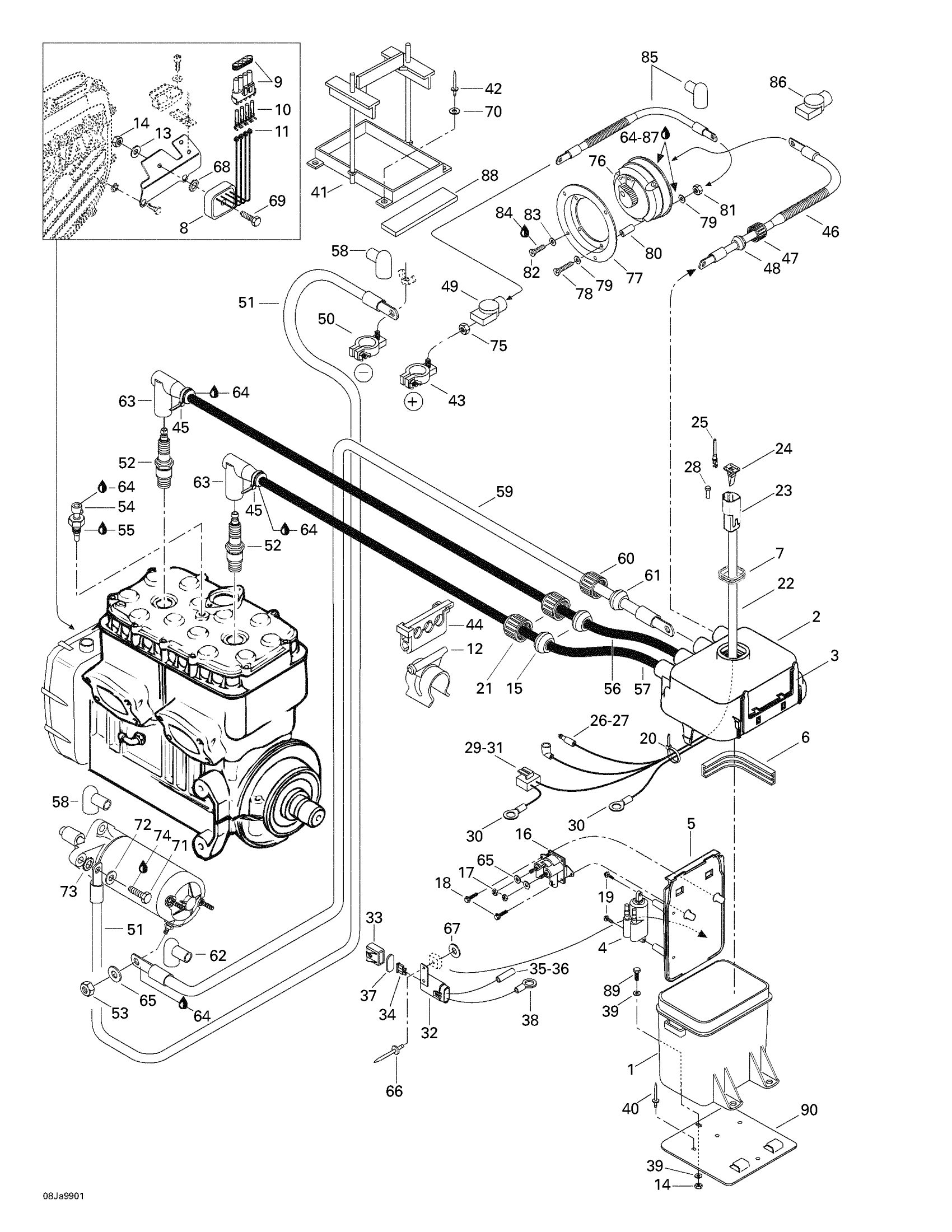

Sea-doo Challenger, 5672, 2000 Electrical System Diagram

#

Description
Price

1

High Voltage Box Base

278001089

Unavailable

2

Cover

278001265

Unavailable

3

Ground Plate

278000732

Unavailable

4

IGNITION COIL - Call your local BRP dealership

278000586

Unavailable

5

Mounting Plate

278000826

Unavailable

6

GASKET - Call your local BRP dealership

278000440

Unavailable

7

Gasket

293200030

Unavailable

8

RECTIFIER ASSY - Call your local BRP dealership | Includes 8 - 11.

278001239

Unavailable

9

Male Housing, 4 Circuits

278000395

$14.57

10

Female Terminal

409007300

$0.42

11

Wire Seal

278000218

$4.00

12

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

13

Stainless Flat Washer M6

234061600

$0.28

14

Hex. Elastic Stop Nut M6

232561600

$1.06

15

Grommet

278000682

Unavailable

16

Starter Relay

278003012

$40.27

17

Hex. Elastic Stop Nut M6

232561600

$1.06

18

Hex. Flange Screw M6 X 10

210261040

$1.43

19

14 X 1 UNSL HX WSHR T/AB BLK ZINC - Call your local BRP dealership This part replaces 250000005.

296000365

Unavailable

20

Tie Wrap 94 mm | 4X4

293750001

$0.96

21

Electric Wire Cap

278000100

Unavailable

22

Electric Box Harness | Includes 22 - 31.

204470160

Unavailable

23

Male Terminal Housing, 6 Circuits

710001539

$17.88

24

Female Lock, 6 Circuits

278000735

$2.93

25

Male Terminal

278000631

$4.00

26

Male Terminal

278000230

$4.00

27

Insulated Sheath

278001008

$3.10

28

Sealing Cap

293000052

$2.93

29

Female Terminal

278001114

$2.93

30

Open Barrel

278000992

$2.06

31

Male Connector, 2 Circuits

278001113

$14.52

32

Harness Fuse 15 Amp | Includes 32 - 38.

204470161

Unavailable

33

Fuse Holder Cap

278001326

$5.85

34

Fuse, 15 Amperes

278000343

$3.12

35

Female Terminal | DS 650 X

278001009

$2.93

36

Insulated Sheath

278001007

$3.12

37

Cushion

278000805

$3.12

38

Ring Terminal

278000300

Unavailable

39

Flat Washer 6 mm

234062060

Unavailable

40

Pop Rivet 3/16"

293150008

$0.46

41

Battery Support

204470243

Unavailable

42

Pop Rivet 3/16"

293150008

$0.46

43

POSITIVE BATTERY POLE - Call your local BRP dealership

204470349

Unavailable

44

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

45

Tie Wrap 142 mm

293750002

$1.01

46

Battery Cable (Red)(Port side) | Includes 46 - 49.

204470150

Unavailable

POSITIVE CABLE ASS'Y - Call your local BRP dealership | Includes 13 to 16

204470286

Unavailable

47

Electric Wire Cap

278000100

Unavailable

48

GROMMET - Call your local BRP dealership

278000098

Unavailable

49

RED BOOT - Call your local BRP dealership

204470269

Unavailable

50

NEGATIVE BATTERY POLE - Call your local BRP dealership

204470348

Unavailable

51

RH GROUND CABLE - Call your local BRP dealership

204470199

Unavailable

Battery Ground Cable L.H

204470200

Unavailable

52

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.63

53

Hex. Elastic Stop Nut M6

232561600

$1.06

54

Temperature Sensor

278000965

$66.39

55

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

56

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

57

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

58

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

59

Starter Cable (Red) | Includes 59 - 62.

204470149

Unavailable

60

Electric Wire Cap

278000100

Unavailable

61

GROMMET - Call your local BRP dealership

278000098

Unavailable

62

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

63

Spark Plug Cap

204470091

Unavailable

64

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

65

Stainless Flat Washer M6

234061600

$0.28

66

Pop Rivet 3/16"

293150005

$0.46

67

Flat Washer, Emhart

213200016

$0.66

68

External Serrated Lock Washer 6 mm

234461608

$1.06

69

Hex. Screw M6 X 35

207163560

$1.34

70

Flat Washer 5 mm, Stainless

234052600

$0.73

71

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

72

Flat Washer M8, Stainless

234080600

$1.43

73

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

74

Loctite 271, 10 ml

293800005

$23.85

75

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

76

Battery Switch

204470329

Unavailable

77

SWITCH SUPPORT - Call your local BRP dealership

204470259

Unavailable

78

Phillips Screw M5 X 25

208652560

Unavailable

79

Flat Washer M5, Stainless

234051600

$0.73

80

NYLON SPACER - Call your local BRP dealership

204470330

Unavailable

81

Hex. Elastic Nut M5 | X

232551600

$1.04

82

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

83

Flat Washer 4 mm, Stainless

234041600

$1.04

84

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

85

POSITIVE SWITCH CABLE - Call your local BRP dealership

204470250

Unavailable

86

RED BOOT - Call your local BRP dealership

204470269

Unavailable

87

Loctite 243, 10 ml

293800060

$21.49

88

Battery Spacer

204060195

Unavailable

89

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208662060

Unavailable

90

Box Support

204470176

Unavailable
