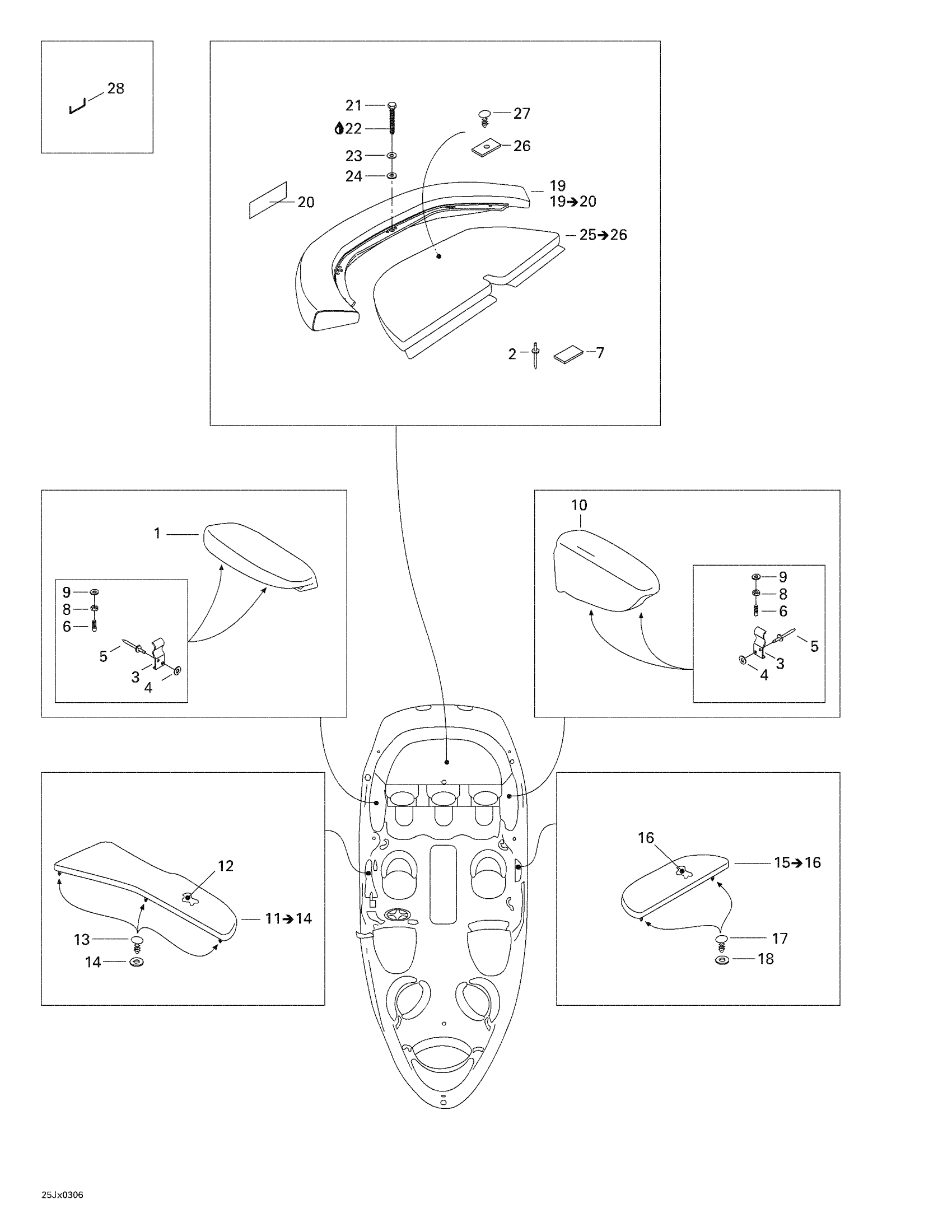

Sea-doo Challenger 2000, Seat (platform And Armrest) Diagram

#

Description
Price

1

RH Armrest Ass'y

204612213

Unavailable

2

POP RIVET 3/16 - Call your local BRP dealership

204130050

Unavailable

Pop Rivet 3/16"

293150008

$0.40

3

SEAT SUPPORT - Call your local BRP dealership

269000388

Unavailable

4

Stainless Flat Washer M6

234061600

$0.25

5

Pop Rivet 3/16"

293150043

$1.61

6

Socket Set Screw M5 X 40, Scotch Grip

206254069

Unavailable

7

Velcro 25 Mm X 940 Mm

204611298

Unavailable

Velcro 25 Mm X 635 Mm

204611299

Unavailable

8

Hex. Elastic Nut M5 | X

232551600

$0.91

9

Flat Washer 5 mm, Stainless

234052600

$0.64

10

LH Armrest Ass'y

204612215

Unavailable

11

RH Elbow Padding Ass'y | Includes 57 to 60

204612217

Unavailable

12

Neoprene Foam

204610121

Unavailable

13

Black, Dart

293730006

$0.81

14

Flat Washer M6, Stainless

234062600

$0.64

15

LH Elbow Padding Ass'y | Includes 61 to 64

204612219

Unavailable

16

Neoprene Foam

204610123

Unavailable

17

Black, Dart

293730006

$0.81

18

Flat Washer M6, Stainless

234062600

$0.64

19

Rear Spoiler Ass'y | 5171 (250 OPTI)

204612238

Unavailable

19

Rear Spoiler Ass'y | Includes 65 to 66

204612233

Unavailable

20

Staple Cover, Meter

204610184

Unavailable

21

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.22

22

Loctite 243, 10 ml

293800060

$20.77

23

Flat Washer M6, Stainless

234062600

$0.64

24

Flat Washer 10 mm, Stainless

234002600

$1.85

25

Platform Ass'y | Includes 70 - 71.

204612235

Unavailable

26

Strap

204610194

Unavailable

27

Black, Dart

293730006

$0.81

28

Staple

293730005

Unavailable
