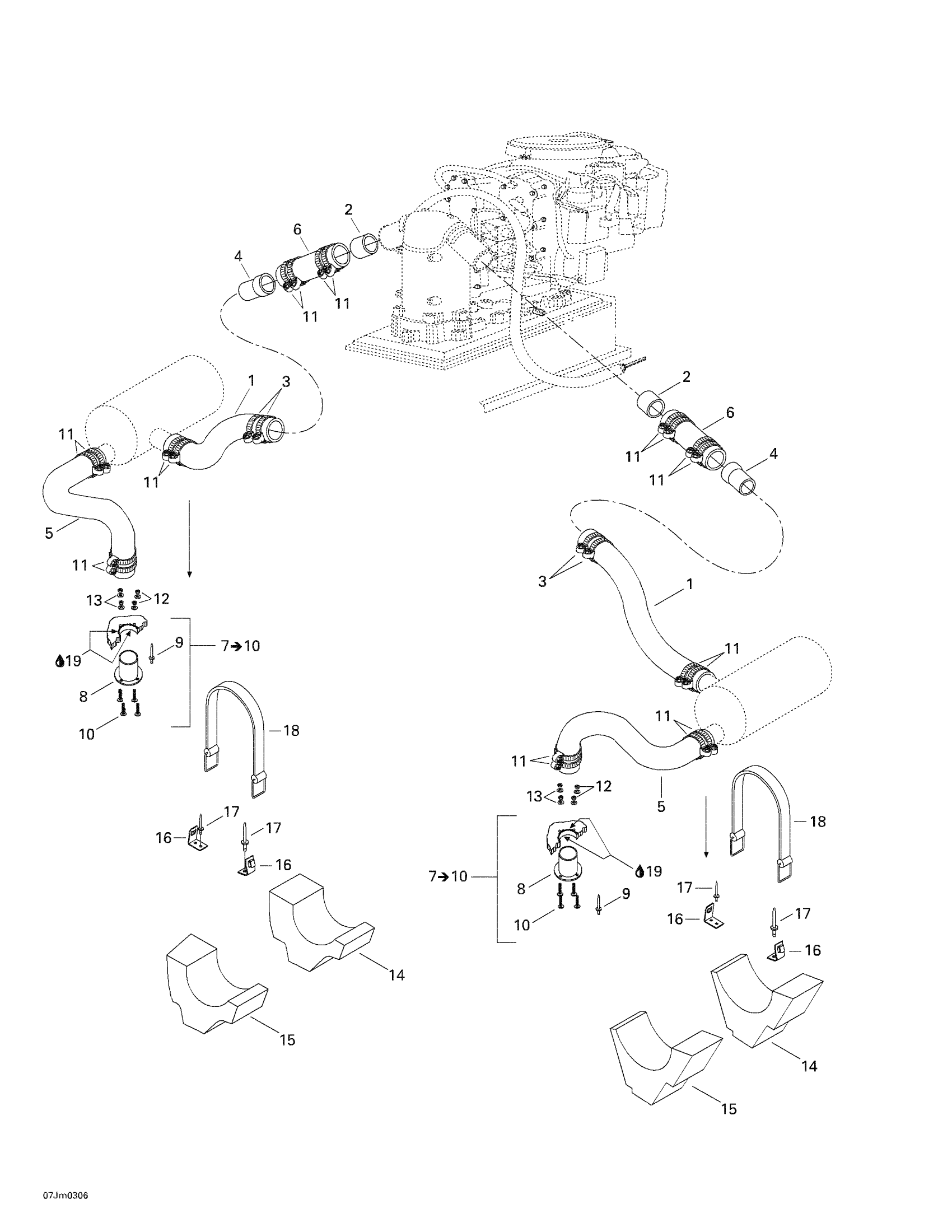

Sea-doo Challenger 2000, Exhaust System Diagram

#

Description
Price

1

Exhaust Hose | 5171 (240 EFI)

204340406

Unavailable

2

Exhaust Spacer

204340403

$32.28

3

Tridon Clamp

293650064

$7.80

4

Exhaust Adaptor

204340402

$59.97

5

Exhaust Hose | 5171 (240 EFI)

204340290

Unavailable

Exhaust Hose | 5171 (240 EFI)

204340291

Unavailable

Exhaust Hose

204340299

Unavailable

6

Exhaust Hose, Meter

204340256

Unavailable

7

Exhaust Outlet Ass’Y | Includes 7 to 10

204340322

Unavailable

8

Exhaust Outlet

204340229

Unavailable

9

Pop Rivet 3/16"

293150043

$1.61

10

PHILLIPS SCREW M6 X 35 - Call your local BRP dealership

208663560

$1.28

11

Tridon Clamp

293650112

$11.98

12

Hex. Elastic Stop Nut M6

232561600

$0.92

13

Stainless Flat Washer M6

234061600

$0.25

14

RH Muffler Support | 5171 (240 EFI)

204340219

Unavailable

LH Muffler Support

204340248

Unavailable

Outer Muffler Support, Port Side

204340369

Unavailable

15

RH Muffler Support | 5171 (240 EFI)

204340221

Unavailable

LH Muffler Support | 5171 (240 EFI)

204340218

Unavailable

Interior Muffler Support, 250 Opti

205340383

Unavailable

16

Strap Clip 90°

204060017

Unavailable

17

Pop Rivet 3/16"

293150008

$0.40

18

STRAP - Call your local BRP dealership

293850022

Unavailable

19

Silicone Sealant 51388, 300 ml

296000309

$35.72
