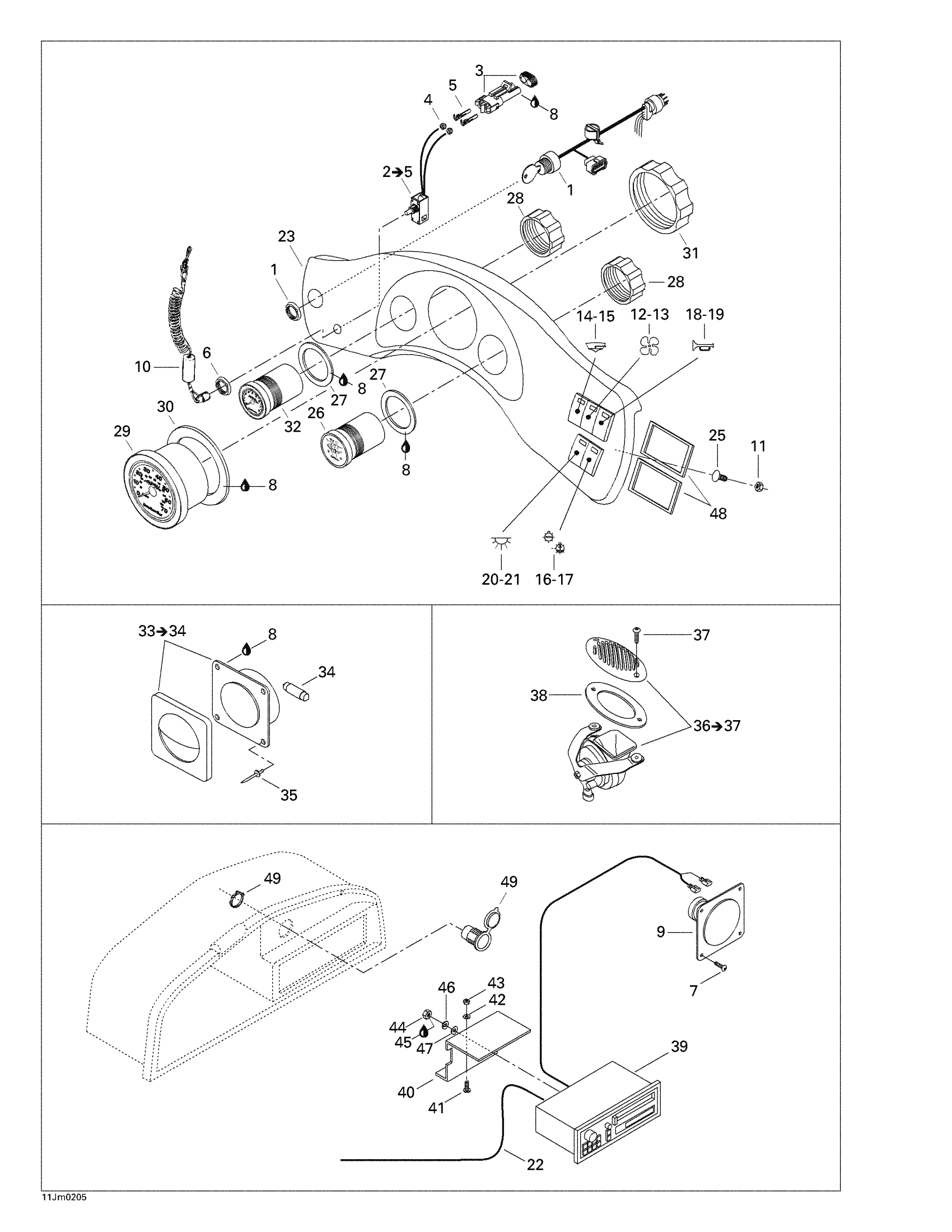

Sea-doo Challenger 2000, Electrical Accessories 1 Diagram

#

Description
Price

1

Instrumentation Harness | CHALLENGER 1800 (5774).

204470630

Unavailable

2

Safety Switch | Includes 17 - 20.

204470463

Unavailable

3

Male Connector, 2 Circuits

278000220

$11.02

4

Wire Seal

278000218

$3.48

5

Female Terminal

278000223

$2.55

6

Safety Switch Nut

278000099

Unavailable

7

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

8

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

9

Speaker

204470378

Unavailable

10

Safety Lanyard

278001431

$38.32

11

Hex. Elastic Nut M8

232581600

$1.25

12

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

13

Gasket

204470132

Unavailable

14

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

15

Gasket

204470132

Unavailable

16

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

17

Gasket

204470132

Unavailable

18

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$46.12

19

Gasket

204470132

Unavailable

20

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

21

Gasket

204470132

Unavailable

22

Antenna

204470380

Unavailable

23

Facia | Includes 23 - 25.

204470611

Unavailable

24

Double Side Tape

204070268

Unavailable

25

Black Dart

293730014

$0.81

26

Oil/Fuel Gauge

204470391

Unavailable

27

Gasket

204470308

Unavailable

28

Gauge Nut

204470146

Unavailable

29

Speedometer Gauge

204470374

Unavailable

30

Gasket

204470309

Unavailable

31

Gauge Nut

204470171

Unavailable

32

Tachometer Gauge

204470466

Unavailable

33

Courtesy Light Ass'y | Includes 29 to 30

204470026

$46.12

34

BULB - Call your local BRP dealership

204470081

Unavailable

35

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

$0.35

36

HORN - Call your local BRP dealership

204470801

Unavailable

37

SCREW-RD.HD.PH. - Call your local BRP dealership

211000100

Unavailable

38

Horn Gasket

293250108

Unavailable

39

Compact Disc Radio

204470682

Unavailable

40

Radio Support

204470688

Unavailable

41

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208462060

$1.15

42

Flat Washer M6, Stainless

234062600

$0.64

43

Hex. Elastic Stop Nut M6

232561600

$0.92

44

Hex. Nut M5

232051600

$0.92

45

Loctite 243, 10 ml

293800060

$20.77

46

Helical Lock Washer M5

234151601

$0.91

47

Flat Washer 5 mm, Stainless

234052600

$0.64

48

LOCKING PLATE - Call your local BRP dealership

204470343

Unavailable

49

DC Outlet

710001248

$31.17
