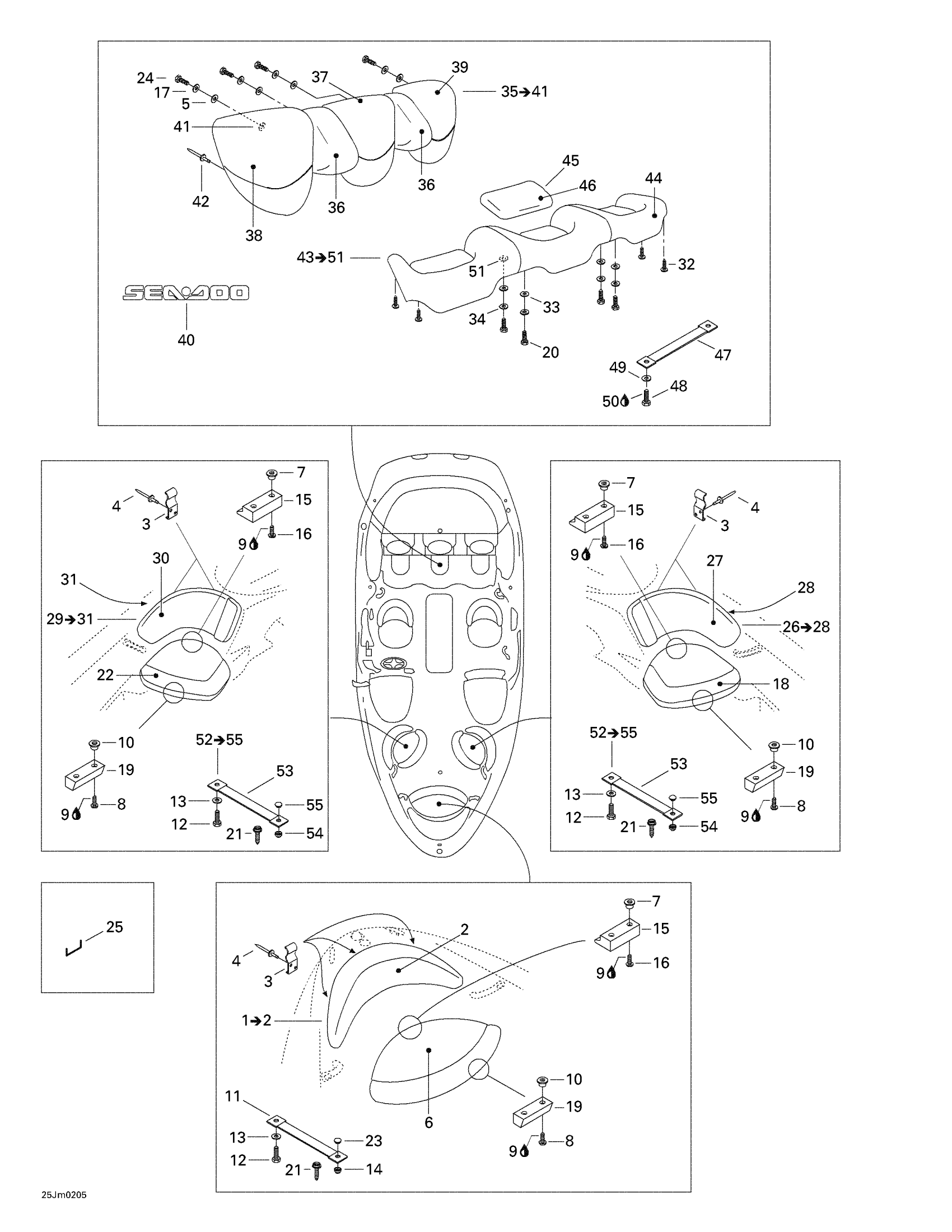

Sea-doo Challenger 2000, Seat (front And Rear) Diagram

#

Description
Price

1

Front Backrest Ass'y | Includes 1 - 2.

204610687

Unavailable

2

Front Backrest Cover

204610688

Unavailable

3

SEAT SUPPORT - Call your local BRP dealership

269000388

Unavailable

4

Pop Rivet 3/16"

293150043

$1.61

5

Flat Washer 8 mm, Stainless

234082600

$1.98

6

Front Seat ass'y | Includes 6 - 12.

204610989

Unavailable

7

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

8

Screw 10-32 X 1-1/4”

204100075

Unavailable

9

Loctite 243, 10 ml

293800060

$20.77

10

TEE-NUT #10-32 - Call your local BRP dealership

204100044

Unavailable

11

Front Seat Strap

204611520

Unavailable

12

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

13

Flat Washer 4 mm, Stainless

234042600

$0.92

14

SNAP BASE - Call your local BRP dealership | SE

204000083

$5.54

15

SEAT LATCH - Call your local BRP dealership

204611940

Unavailable

16

SCREW 1/4?-20 X 2? - Call your local BRP dealership

204100039

Unavailable

17

Flat Washer M6, Stainless

234062600

$0.64

18

LH Front Seat Cover

204610964

Unavailable

19

LATCH - Call your local BRP dealership

204611805

Unavailable

20

Hex. Screw M6 x 45, Scotch Grip

207364560

$1.51

21

Threaded Stud 5/8”

204100046

Unavailable

22

RH Front Seat Cover

204610971

Unavailable

23

SNAP COVER - Call your local BRP dealership

204000085

$7.09

24

Hex. Screw M6 X 40, Scotch Grip

207364060

Unavailable

25

Staple

293730005

Unavailable

26

LH Backrest Ass'y | Includes 26 - 28.

204610947

Unavailable

27

Backrest Cover

204610954

Unavailable

28

Was 293200017 Neoprene Seal

219704365

$118.27

29

RH Backrest Ass'y | Includes 29 - 31.

204610948

Unavailable

30

Backrest Cover

204610957

Unavailable

31

Was 293200017 Neoprene Seal

219704365

$118.27

32

Dart

293730021

$6.06

33

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

34

Flat Washer M6, Stainless

234062600

$0.64

35

Rear Backrest Ass'y | Includes 35 - 41.

204611694

Unavailable

36

Rear Bump Cover

204610696

Unavailable

37

Backrest Cover (Metalic Quartz)

204610697

Unavailable

38

RH Backrest Cover (Metalic Quartz)

204610698

Unavailable

39

LH Backrest Cover (Metalic Quartz)

204610699

Unavailable

40

Sea-Doo Logo

204901063

Unavailable

41

Anchor Washer

204100005

Unavailable

42

RIVET - Call your local BRP dealership

293150065

Unavailable

43

Rear Seat Ass'y | Includes 43 - 51.

204610700

Unavailable

44

Rear Seat Cover

204610701

Unavailable

45

Not Available As Spare Part - Friction Washer

Unavailable

46

Not Available As Spare Part - Friction Washer

Unavailable

47

Rear Seat Strap

204610703

Unavailable

48

Hex. Screw M6 X 16

207161660

$1.22

49

Flat Washer M6, Stainless

234062600

$0.64

50

Loctite 243, 10 ml

293800060

$20.77

51

Anchor Washer

204100005

Unavailable

52

Retaining Strap Ass'y | Includes 52 - 55.

204611938

Unavailable

53

Front Seat Strap

204611520

Unavailable

54

SNAP BASE - Call your local BRP dealership | SE

204000083

$5.54

55

SNAP COVER - Call your local BRP dealership

204000085

$7.09
