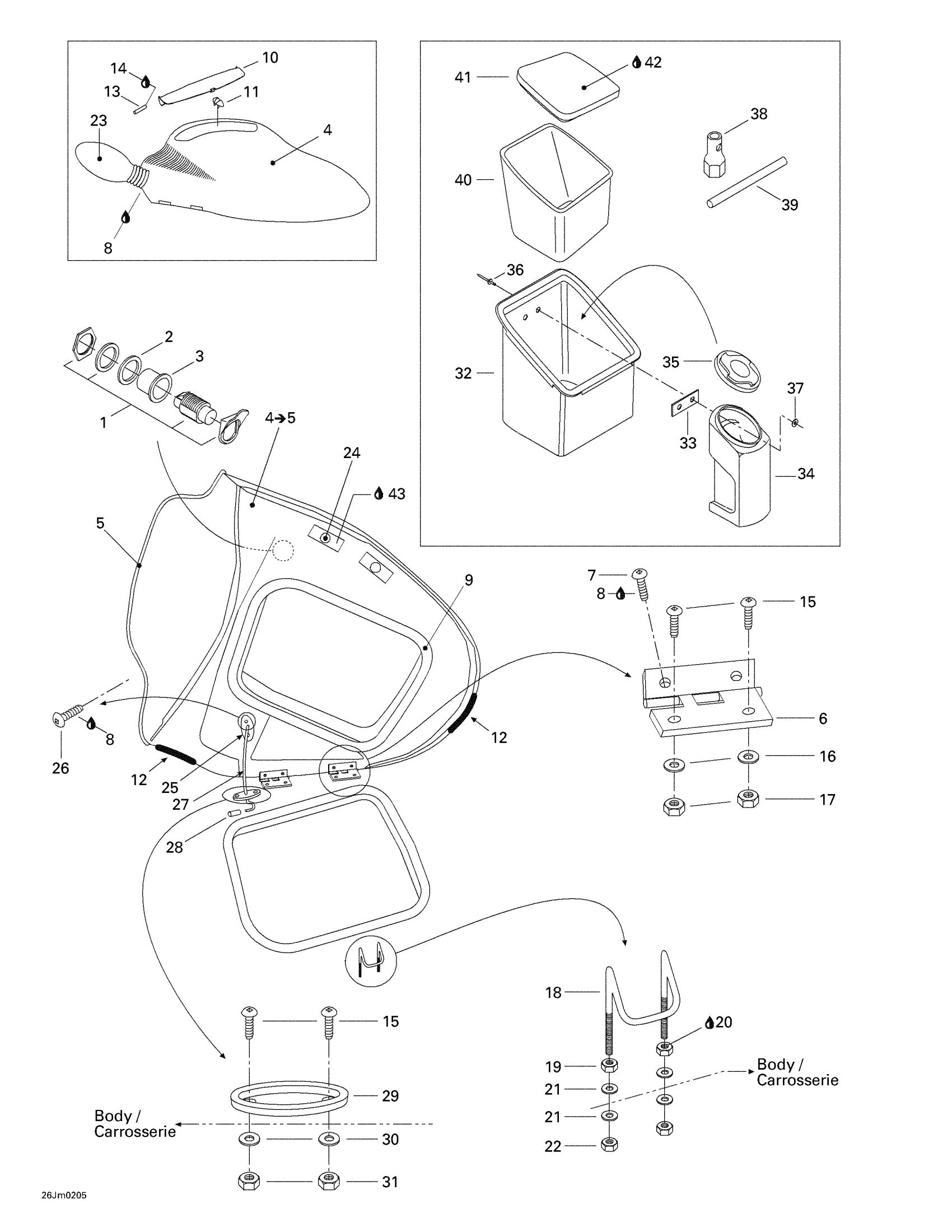

Sea-doo Challenger 2000, Front Storage Compartment Diagram

#

Description
Price

1

LATCHES KIT, 3 SUB-ASSEMBLIES - Call your local BRP dealership

204070122

Unavailable

2

COMPENSATION GASKET - Call your local BRP dealership

204620045

Unavailable

3

LATCH INSERT - Call your local BRP dealership

204620007

Unavailable

4

RH Windshield | Includes 1 to 2

204620217

Unavailable

LH Windshield | Includes 1 to 2

204620218

Unavailable

5

Trim, Meter

204620100

Unavailable

6

Console Hinge

204620005

Unavailable

7

SCREW M4 X 12 - Call your local BRP dealership

216141260

$1.17

8

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

9

Seal Tray 1000Mm Long

219704368

$12.91

10

DEFLECTOR - Call your local BRP dealership

204073803

Unavailable

11

REAR STOPPER - Call your local BRP dealership

204073804

Unavailable

12

Waterproof Seal, Meter

204620117

Unavailable

13

ROLLED PIN 1.5 X 10 MM - Call your local BRP dealership

204620126

$1.45

14

Glue Tube, Loctite 454, 20 G

413708300

$59.97

15

PHILLIPS SCREW M4 X 20 - Call your local BRP dealership

208442060

Unavailable

16

Flat Washer 4 mm, Stainless

234042600

$0.92

17

Elastic Stop Nut M4

232541600

$0.92

18

Hook

204620151

Unavailable

19

Hex. Nut M6

232061600

$0.91

20

Loctite 243, 10 ml

293800060

$20.77

21

Flat Washer M6, Stainless

234062600

$0.64

22

Hex. Elastic Stop Nut M6

232561600

$0.92

23

Black, RH Mirror

204620026

Unavailable

24

RUBBER STOPPER - Call your local BRP dealership

204620295

Unavailable

25

ROD HOLDER - Call your local BRP dealership

204620028

Unavailable

26

PHILLIPS SCREW M4 X 16 - Call your local BRP dealership

208441660

$0.92

27

SUPPORT ROD - Call your local BRP dealership

204620219

Unavailable

28

CAP - Call your local BRP dealership

204620044

Unavailable

29

ROD STOP - Call your local BRP dealership

204620030

Unavailable

30

Flat Washer 4 mm, Stainless

234042600

$0.92

31

Elastic Stop Nut M4

232541600

$0.92

32

STORAGE TRAY - Call your local BRP dealership

269501940

Unavailable

33

GASKET - Call your local BRP dealership

293250037

$5.00

34

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

$23.82

35

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

36

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

$0.35

37

Flat Washer M3, Stainless

234032600

$0.54

38

Socket Wrench

204630050

Unavailable

39

Steel Bar

204630051

Unavailable

40

ICEBOX FOAM - Call your local BRP dealership

204630008

Unavailable

41

Icebox Foam Cover

204630013

Unavailable

42

Silicone Sealant 51388, 300 ml

296000309

$35.72

43

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable
