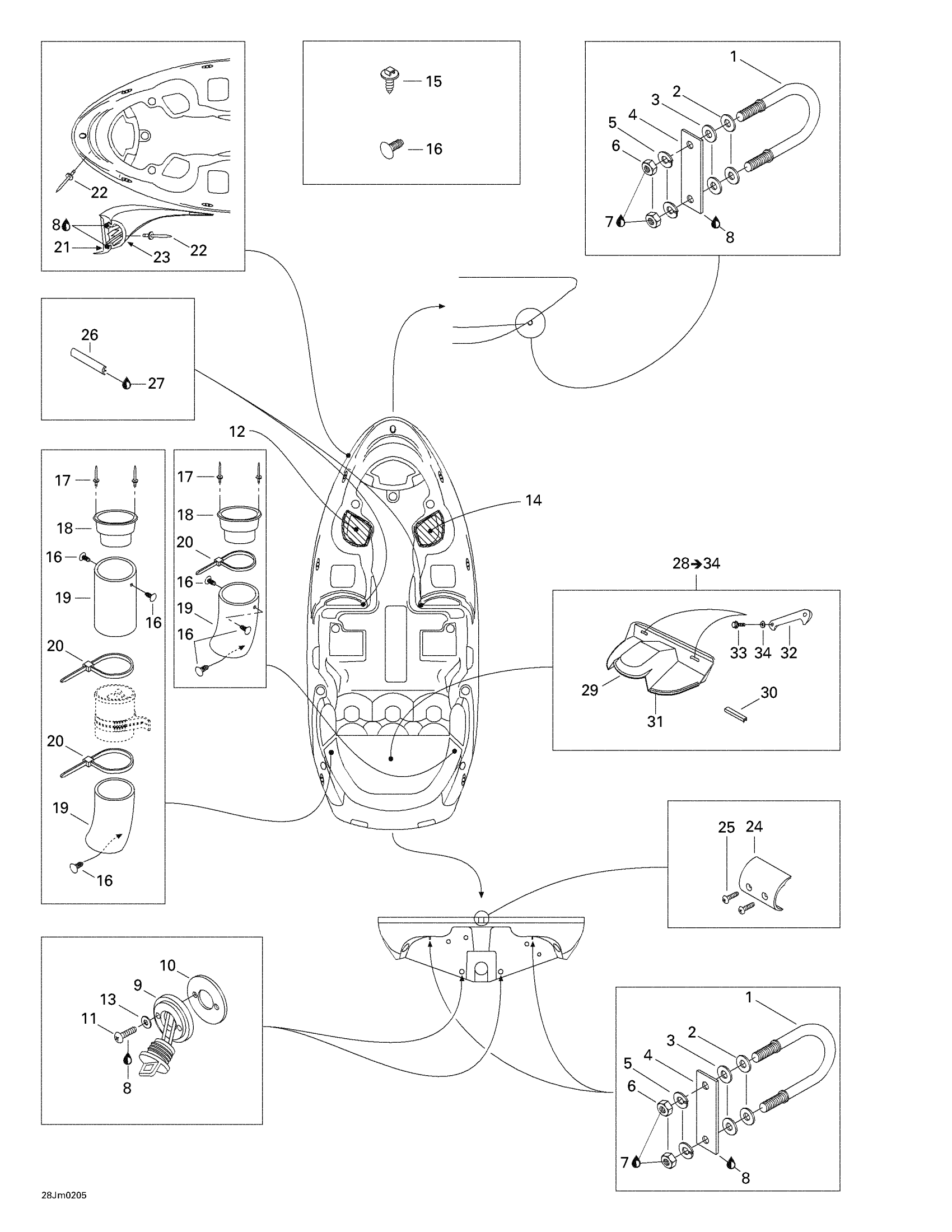

Sea-doo Challenger 2000, Body And Accessories 1 Diagram

#

Description
Price

1

U-CLAMP - Call your local BRP dealership

292000063

Unavailable

2

Flat Washer M8.5 x 18

293050001

$1.29

3

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

4

RETAINING PLATE - Call your local BRP dealership

291000307

$11.06

5

Lock Washer 8 mm, Stainless

234181601

$0.46

6

Hex. Nut M8

232081600

$1.22

7

Loctite 271, 10 ml

293800005

$20.77

8

Silicone Sealant 51388, 300 ml

296000309

$35.72

9

Drain Plug

292000187

$10.21

10

GASKET - Call your local BRP dealership

293250030

Unavailable

11

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

12

LH Storage Box Carpet

204050477

Unavailable

13

Flat Washer 4 mm, Stainless

234041600

$0.91

14

RH Storage Box Carpet

204050479

Unavailable

15

Mount Dart

293730040

$0.86

16

Black, Dart

293730006

$0.81

17

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

$0.29

18

Vent Adaptor

204050160

Unavailable

19

Was 204050122 Vent Hose 4"

219704358

$27.66

20

Tie Rap

293750019

$3.68

21

Bumper

204050199

Unavailable

22

Pop Rivet 3/16"

293150013

$1.11

23

Bumper Trim

204050200

Unavailable

24

BUMPER COVER - Call your local BRP dealership

291000905

Unavailable

25

Phillips Tapping Screw M4.2 X 32

209943260

$1.45

26

TRIM, WHITE - Call your local BRP dealership

204050048

Unavailable

27

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

28

Accessories Cover Ass'y | Includes 28 - 34.

204050379

Unavailable

29

Access Cover | 5171 (240 EFI)

204050380

Unavailable

30

Trim, Meter

204050213

Unavailable

31

Seal Tray 1000Mm Long

219704368

$12.91

32

Black, Handle - Call your local BRP dealership

204050159

Unavailable

33

Hex. Flange Screw K40 X 16

241141660

$1.25

34

Flat Washer 4 mm, Stainless

234042600

$0.92
