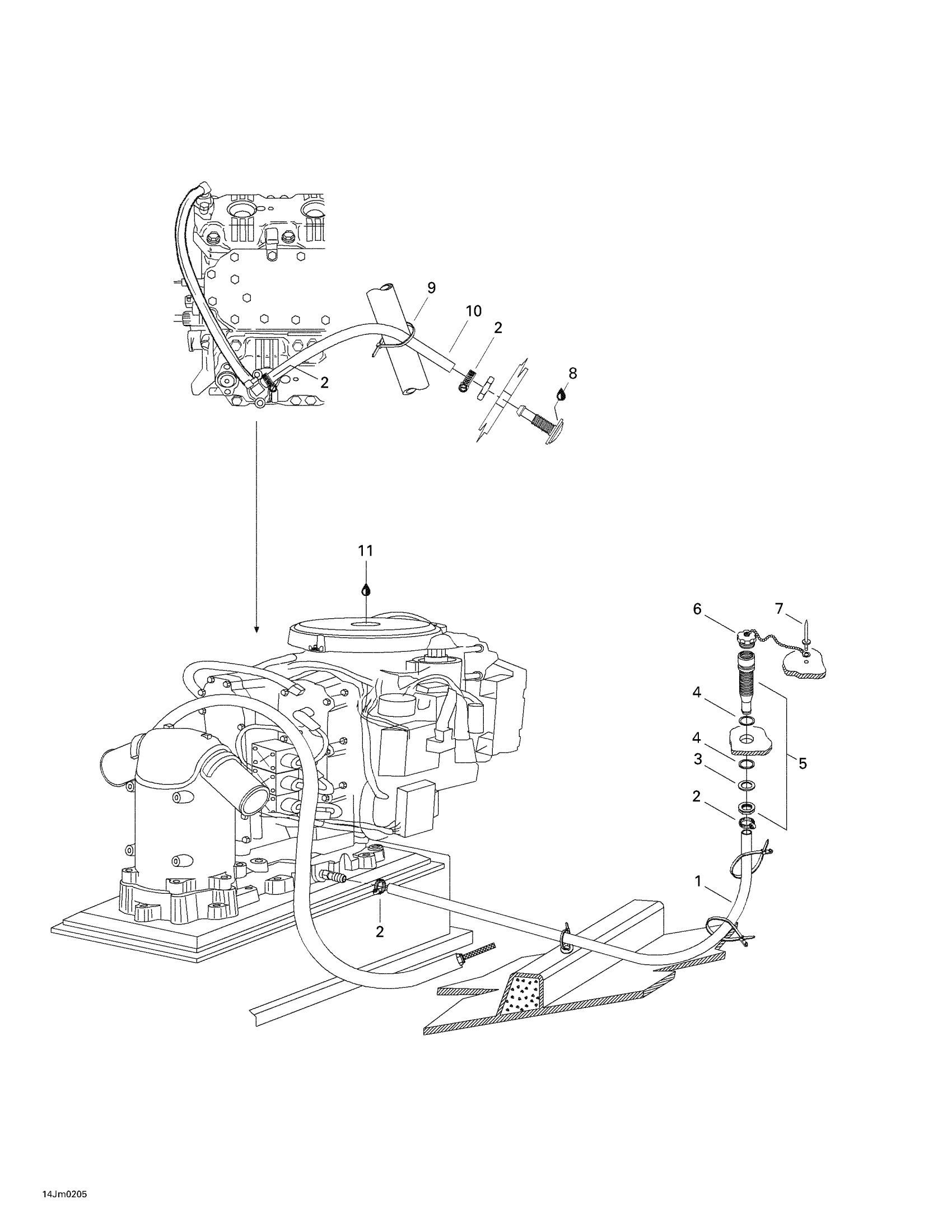

Sea-doo Challenger 2000, Cooling System Diagram

#

Description

Price

1

Was 276000001 Hose 12.5 mm

219704394

$42.87

2

Tridon Clamp

293650016

$8.57

3

WASHER - Call your local BRP dealership

293050003

$2.74

4

GASKET - Call your local BRP dealership

293250028

Unavailable

5

FITTING - Call your local BRP dealership

293710081

$12.28

6

PLUG - Call your local BRP dealership

293000055

$13.82

7

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

$1.19

8

Silicone Sealant 51388, 300 ml

296000309

$35.72

9

Tie Wrap 368 mm

293750008

$0.85

10

Hose, Meter

204250093

Unavailable

11

Synthetic Grease, 400 G

293550010

Unavailable
