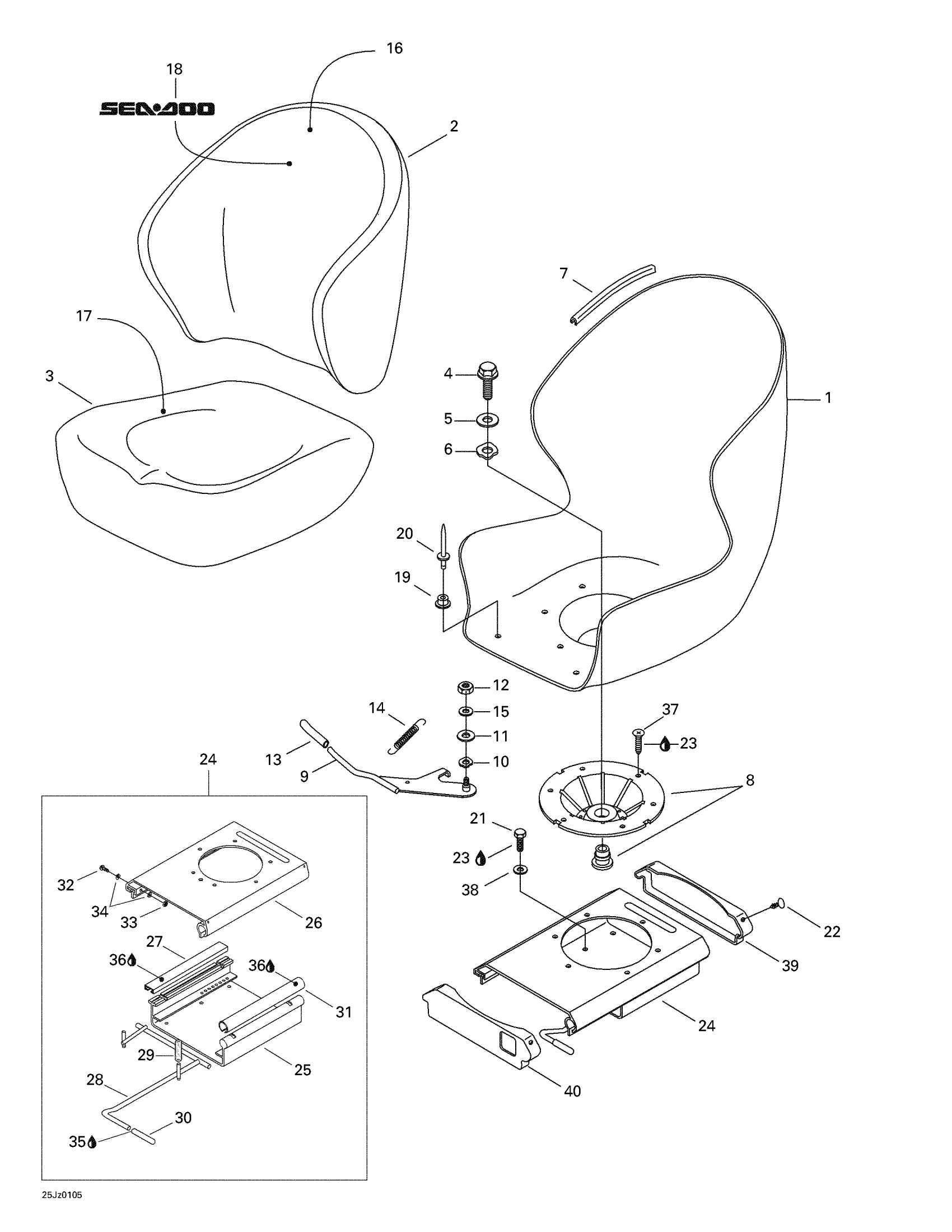

Sea-doo Challenger 2000, Driver Seat Diagram

#

Description
Price

1

Driver Seat Ass'y | Includes 1 - 20.

204611307

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Backrest Cushion (Metalic Quartz)

295501065

Unavailable

3

Seat Cushion (Metalic Quartz)

204611280

Unavailable

4

SCREW-SHOULDER - Call your local BRP dealership

211000172

Unavailable

5

FLAT WASHER - Call your local BRP dealership

211200058

Unavailable

6

WASHER - Call your local BRP dealership

293200056

Unavailable

7

TRIM, BLACK - Call your local BRP dealership

204610371

Unavailable

8

SWIVEL PLATE - Call your local BRP dealership

204610513

Unavailable

9

Lever Arm Ass’y

204610523

Unavailable

9

Lever Arm

204610524

Unavailable

10

Washer

211200059

Unavailable

11

Washer (Nylon)

204610440

Unavailable

12

Hex. Elastic Stop Nut M6

232561600

$0.92

13

Handle

204610348

Unavailable

14

SPRING - Call your local BRP dealership

204610349

Unavailable

15

Stainless Flat Washer M6

234061600

$0.25

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Cover Cushion

204611288

Unavailable

18

Sea-Doo Logo

204900851

Unavailable

19

Washer

204000059

Unavailable

20

Pop Rivet 1/8

293150085

Unavailable

21

Hex. Screw M6 X 35

207163560

$1.17

22

Black, Dart

293730006

$0.81

23

Loctite 243, 10 ml

293800060

$20.77

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Lower Part

269500636

Unavailable

26

Upper Part

269500637

Unavailable

27

Rectangular Bushing

269500638

Unavailable

28

Rod Ass'y

269500639

Unavailable

29

Spring

269500640

Unavailable

30

Handle

204610348

Unavailable

31

Circle Bushing

269500642

Unavailable

32

Hex. Screw M6 X 50

207065060

$1.85

33

Hex. Elastic Stop Nut M6

232561600

$0.92

34

Stainless Flat Washer M6

234061600

$0.25

35

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

36

Synthetic Grease, 400 G

293550010

Unavailable

37

PHILLIPS SCREW M6 X 16 - Call your local BRP dealership

208561660

$2.48

38

Flat Washer M6, Stainless

234062600

$0.64

39

Rear Protector

204610376

Unavailable

40

Front Protector

204610375

Unavailable
