Partiron

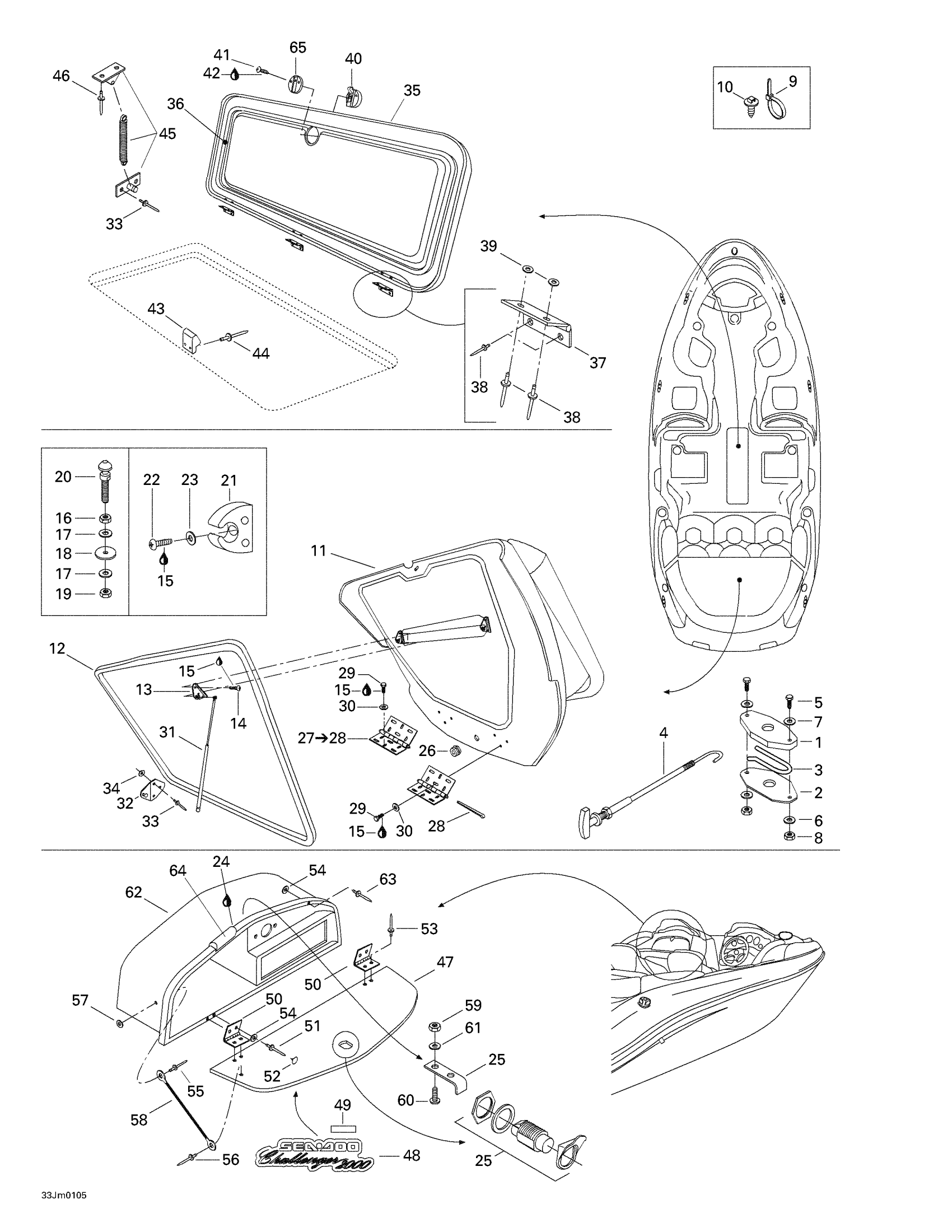

Sea-doo Challenger 2000, Body And Accessories 3 Diagram

#

Description
Price

1

LATCH BASE - Call your local BRP dealership

204070037

$13.82

2

LATCH COVER - Call your local BRP dealership

204070036

Unavailable

3

SPRING - Call your local BRP dealership

204070038

Unavailable

4

LATCH CABLE - Call your local BRP dealership

204070049

Unavailable

5

Hex. Screw M6 X 35

207163560

$1.17

6

Flat Washer M6, Stainless

234062600

$0.64

7

Stainless Flat Washer M6

234061600

$0.25

8

Hex. Elastic Stop Nut M6

232561600

$0.92

9

Tie Wrap 368 mm

293750008

$0.85

Tie-Rap 180 mm

414115200

$0.09

10

Mount Dart

293730040

$0.86

11

Engine Cover

204070226

Unavailable

12

Was 293200017 Neoprene Seal

219704365

$118.27

13

CYLINDER SUPPORT - Call your local BRP dealership

291000654

Unavailable

14

Hex. Screw M4 X 16 | Europe

207141660

$1.22

15

Loctite 243, 10 ml

293800060

$20.77

16

Hex. Jam Nut M10

232100600

$1.85

17

Flat Washer 10 mm, Stainless

234002600

$1.85

18

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

19

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

20

Latch Stud

204100065

Unavailable

21

Pole Support

291000642

Unavailable

22

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

$1.38

23

Flat Washer 4 mm

234040600

$0.46

24

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

25

LATCHES KIT, 3 SUB-ASSEMBLIES - Call your local BRP dealership

204070122

Unavailable

26

GROMMET - Call your local BRP dealership

293720017

Unavailable

27

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

28

Cotter Pin M2.5 X 12

204070205

Unavailable

29

Hex. Screw M6 X 25

207162560

$1.22

30

Stainless Flat Washer M6

234061600

$0.25

31

LH RETAINER CYLINDER - Call your local BRP dealership

204071071

Unavailable

RH RETAINER CYLINDER - Call your local BRP dealership

204071052

Unavailable

32

SHOCK BRACKET - Call your local BRP dealership

204070065

Unavailable

33

Pop Rivet 3/16"

293150043

$1.61

34

Flat Washer M5, Stainless

234051600

$0.64

35

CENTER COVER - Call your local BRP dealership

204073144

Unavailable

36

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

37

HINGE - Call your local BRP dealership

204072601

Unavailable

38

Pop Rivet 3/16"

293150088

$0.91

39

Flat Washer M5, Stainless

234051600

$0.64

40

LATCH, WHITE - Call your local BRP dealership

204070120

Unavailable

41

SCREW M5 X 16 - Call your local BRP dealership

208651660

$1.69

42

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

43

LATCH BRACKET - Call your local BRP dealership

204070050

Unavailable

44

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

45

SPRING SEAT - Call your local BRP dealership

204000071

Unavailable

46

Pop Rivet 3/16"

204000081

$1.37

47

Tray Door

204070594

Unavailable

48

Emblem

204900583

Unavailable

49

Double Side Tape

204070268

Unavailable

50

Hinge

269700031

$7.80

51

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

$1.19

52

Snap Cap (White)

204070077

Unavailable

53

Pop Rivet 1/8”

293150063

Unavailable

54

Flat Washer M3, Stainless

234032600

$0.54

55

Pop Rivet 3/16"

293150008

$0.40

56

Pop Rivet 3/16"

293150043

$1.61

57

Flat Washer 5 mm, Stainless

234052600

$0.64

58

RETAINER CABLE - Call your local BRP dealership

204071498

Unavailable

59

Elastic Stop Nut M4

232541600

$0.92

60

Phillips Screw M4 X 12

208641260

Unavailable

61

Flat Washer 4 mm

234040600

$0.46

62

Glove Box

204070392

Unavailable

63

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

$0.29

64

Neoprene, Meter

204070115

Unavailable

65

CUP BRACKET - Call your local BRP dealership

204070958

Unavailable
