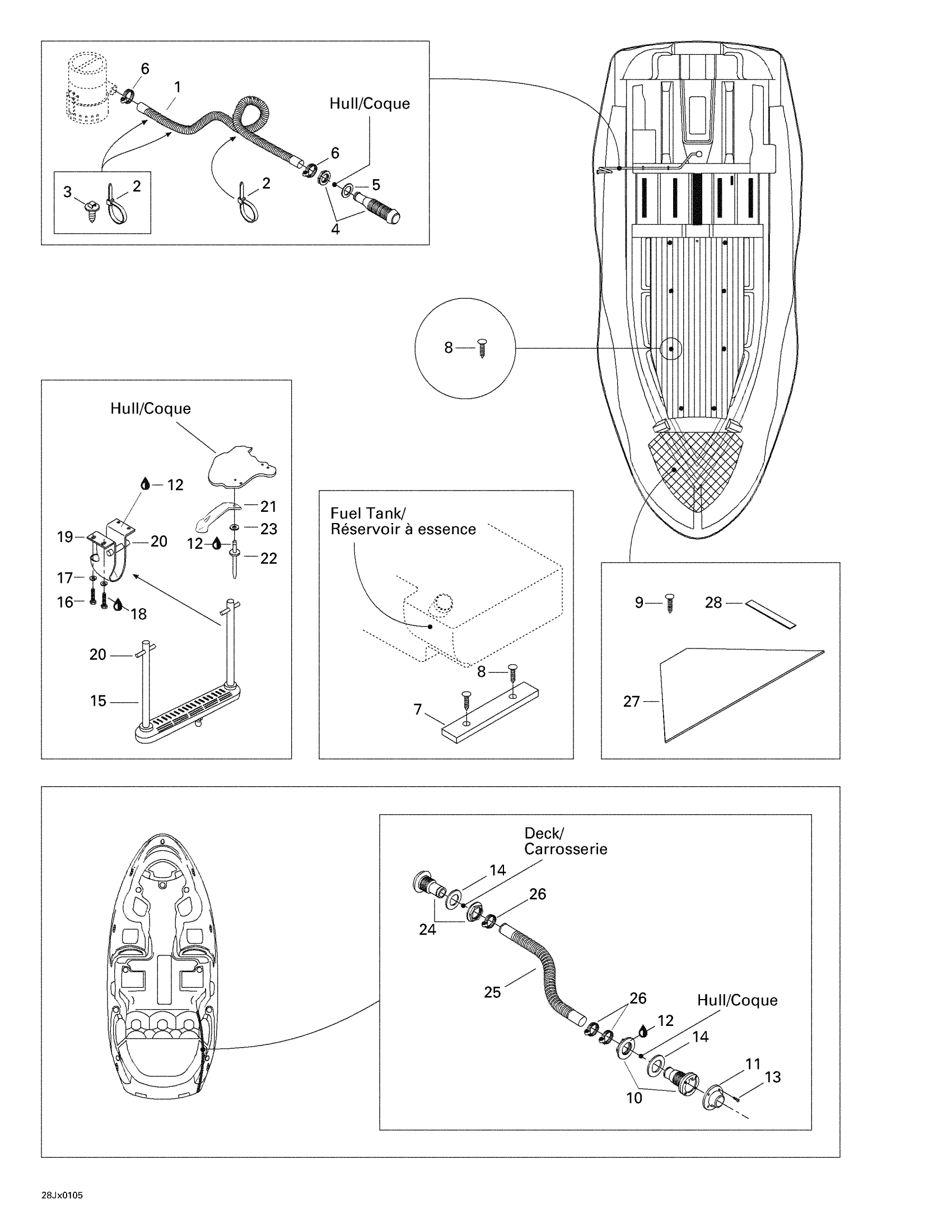

Sea-doo Challenger 2000, Body And Accessories 2 Diagram

#

Description
Price

1

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

$17.66

2

Tie-Rap 180 mm

414115200

$0.09

3

Mount Dart

293730040

$0.86

4

Fitting

293710162

$12.91

5

GASKET - Call your local BRP dealership This part replaces 293250251.

293250006

Unavailable

6

Tridon Clamp

293650016

$8.57

7

Rubber Pad

293830021

Unavailable

8

Black, Dart

293730006

$0.81

9

Black, Dart

293730006

$0.81

10

THRU HULL FITTING - Call your local BRP dealership

204060071

$38.43

11

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable

12

Silicone Sealant 51388, 300 ml

296000309

$35.72

13

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

$2.52

14

GASKET - Call your local BRP dealership

292800106

Unavailable

15

LADDER - Call your local BRP dealership

204060187

Unavailable

16

Hex. Screw M6 X 35

207163560

$1.17

17

Lock Washer Helical M6

234161601

$0.92

18

Loctite 243, 10 ml

293800060

$20.77

19

U-BRACKET - Call your local BRP dealership

204060141

Unavailable

20

ROLL PIN M8 X 55 - Call your local BRP dealership

211300021

Unavailable

21

Hood Latch

570027100

$9.46

22

Pop Rivet 3/16"

293150013

$1.11

23

Flat Washer 5 mm, Stainless

234052600

$0.64

24

FITTING - Call your local BRP dealership

293710060

Unavailable

25

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

26

Norma Clamp

293650074

$16.89

27

Anchor Storage (Black)

204050384

Unavailable

28

Trim Anchor Storage

204050234

Unavailable
