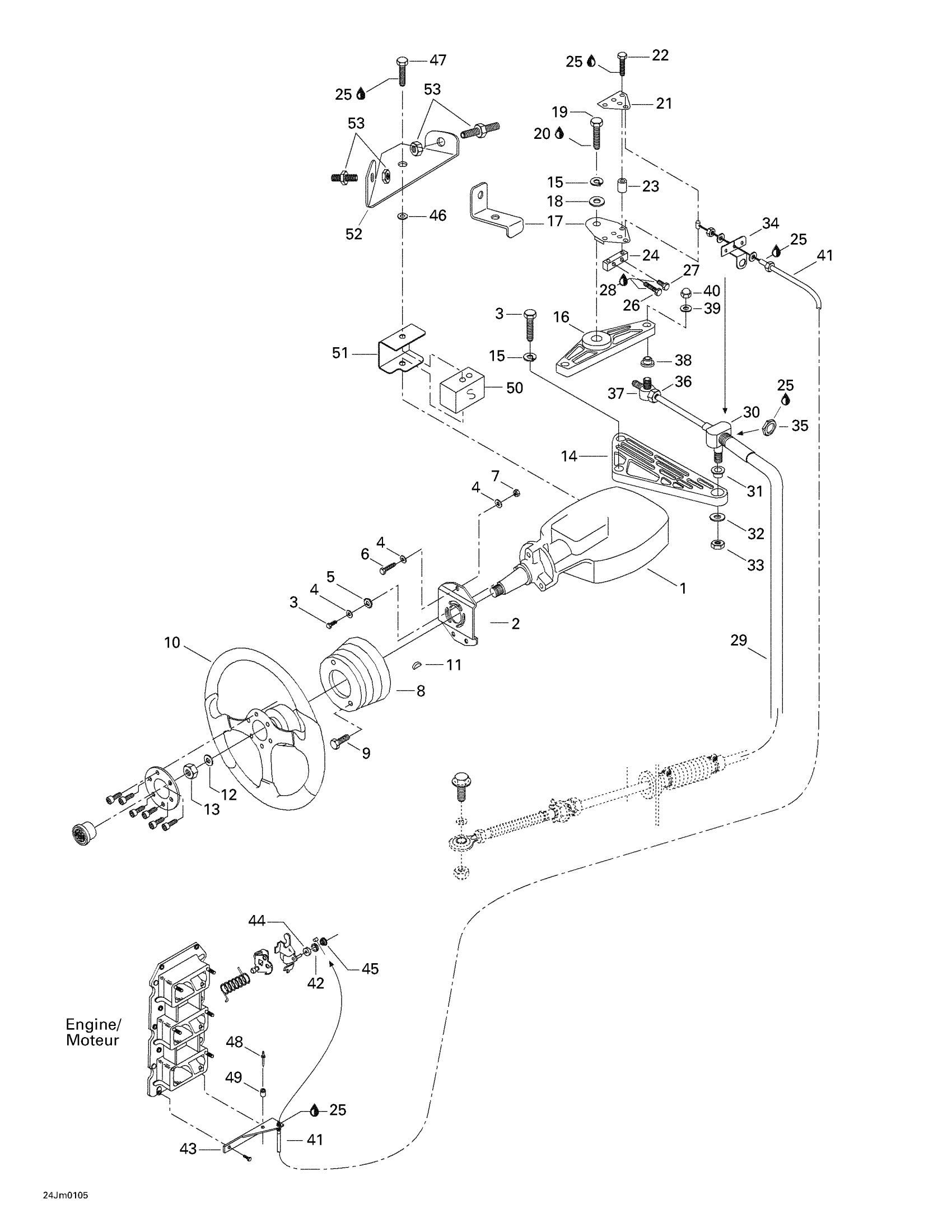

Sea-doo Challenger 2000, Steering System Diagram

#

Description
Price

1

HELM ASS'Y - Call your local BRP dealership

204390244

Unavailable

2

Support

277000383

Unavailable

3

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

4

Stainless Flat Washer M6

234061600

$0.25

5

External Serrated Lock Washer 6 mm

234461608

$0.92

6

Hex. Screw M6 X 30

207163060

$1.25

7

Hex. Elastic Stop Nut M6

232561600

$0.92

8

COLLAR, BLACK - Call your local BRP dealership

204390030

Unavailable

9

SCREW 8-32 X 1-1/4 - Call your local BRP dealership

204390059

Unavailable

10

Steering | Includes 11 to 16

204390170

Unavailable

11

WOODRUFF KEY - Call your local BRP dealership

277000384

Unavailable

12

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

$1.78

13

LOCK NUT 1/2-20 - Call your local BRP dealership

211100021

Unavailable

14

CABLE SUPPORT - Call your local BRP dealership

277000458

Unavailable

15

Lock Washer 1/4”

211200025

$1.26

16

ARM - Call your local BRP dealership

204390040

Unavailable

17

Lower Clip

204390231

Unavailable

Lower Clip

204390271

Unavailable

18

Spacer

204390057

Unavailable

19

HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership

211000054

Unavailable

20

Loctite 271, 10 ml

293800005

$20.77

21

UPPER CLIP - Call your local BRP dealership

204390267

Unavailable

22

Hex. Screw M6 X 25

207162560

$1.22

23

SPACER 6.7 MM - Call your local BRP dealership

277000584

Unavailable

24

Adjustment Block

204390056

Unavailable

25

Loctite 243, 10 ml

293800060

$20.77

26

Hex. Screw M5 X 35

207153560

Unavailable

27

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152560

$1.72

28

Not Available As Spare Part - Friction Washer

Unavailable

29

STEERING CABLE ASS'Y - Call your local BRP dealership

204390172

Unavailable

30

PIVOT 3/8? - Call your local BRP dealership

277000461

Unavailable

31

Flanged Bushing

293350014

$12.08

32

Flat Washer 10 mm, Stainless

234001600

$0.91

33

LOCK NUT - Call your local BRP dealership

211100024

Unavailable

34

Cable Support | CHALLENGER 1800 (5774).

204390232

Unavailable

35

HEX. JAM NUT 5/8-18 - Call your local BRP dealership

204390053

$10.78

36

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

$6.23

37

PIVOT - Call your local BRP dealership

277000456

Unavailable

38

BUSHING - Call your local BRP dealership

293350012

$1.94

39

FLAT WASHER - Call your local BRP dealership

211200019

$1.14

40

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

$1.14

41

Low Speed Control Cable | UTOPIA 210. UTOPIA 240 EFI.

204390188

Unavailable

42

Ring Retainer | UTOPIA 240 EFI.

204390180

Unavailable

43

Support Cable (Low Speed) | UTOPIA 240 EFI.

204390181

Unavailable

44

CABLE RETAINER (LOW SPEED) - Call your local BRP dealership | UTOPIA 240 EFI.

204390268

Unavailable

45

Cable Cover | UTOPIA 240 EFI.

204390269

$59.77

46

Flat Washer M6, Stainless

234062600

$0.64

47

HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership

204100014

Unavailable

48

Pop RIvet 1/8 X ,375

293150285

$0.23

49

Stopper - Rubber | UTOPIA 240 EFI.

204390255

Unavailable

50

Bumper

204390246

Unavailable

51

Bumper Support

204390245

Unavailable

52

Cam Switch | CHALLENGER 1800 (5701).

204390272

Unavailable

53

Low Speed Control Actuator

204470632

$41.51
