Description

Price

1

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

$4.00

2

FLEXIBLE EXHAUST - Call your local BRP dealership

204340294

Unavailable

3

Tridon Clamp

293650064

$7.80

4

Exhaust Hose | 5171 (240 EFI)

204340290

Unavailable

5

Exhaust Hose | 5171 (240 EFI)

204340291

Unavailable

6

Exhaust Outlet Ass'y

204340252

Unavailable

7

Tridon Clamp

293650112

$11.98

8

Hex. Elastic Stop Nut M6

232561600

$0.92

9

Stainless Flat Washer M6

234061600

$0.25

10

PHILLIPS SCREW M6 X 35 - Call your local BRP dealership

208663560

$1.28

11

Silicone Sealant 51388, 300 ml

296000309

$35.72

12

LH Muffler Support | 5171 (240 EFI)

204340218

Unavailable

13

RH Muffler Support | 5171 (240 EFI)

204340219

Unavailable

14

LH Rear Muffler Support

204340220

Unavailable

15

RH Muffler Support | 5171 (240 EFI)

204340221

Unavailable

16

Strap Clip 90°

204060017

Unavailable

17

Pop Rivet 3/16"

293150008

$0.40

18

STRAP - Call your local BRP dealership

293850022

Unavailable

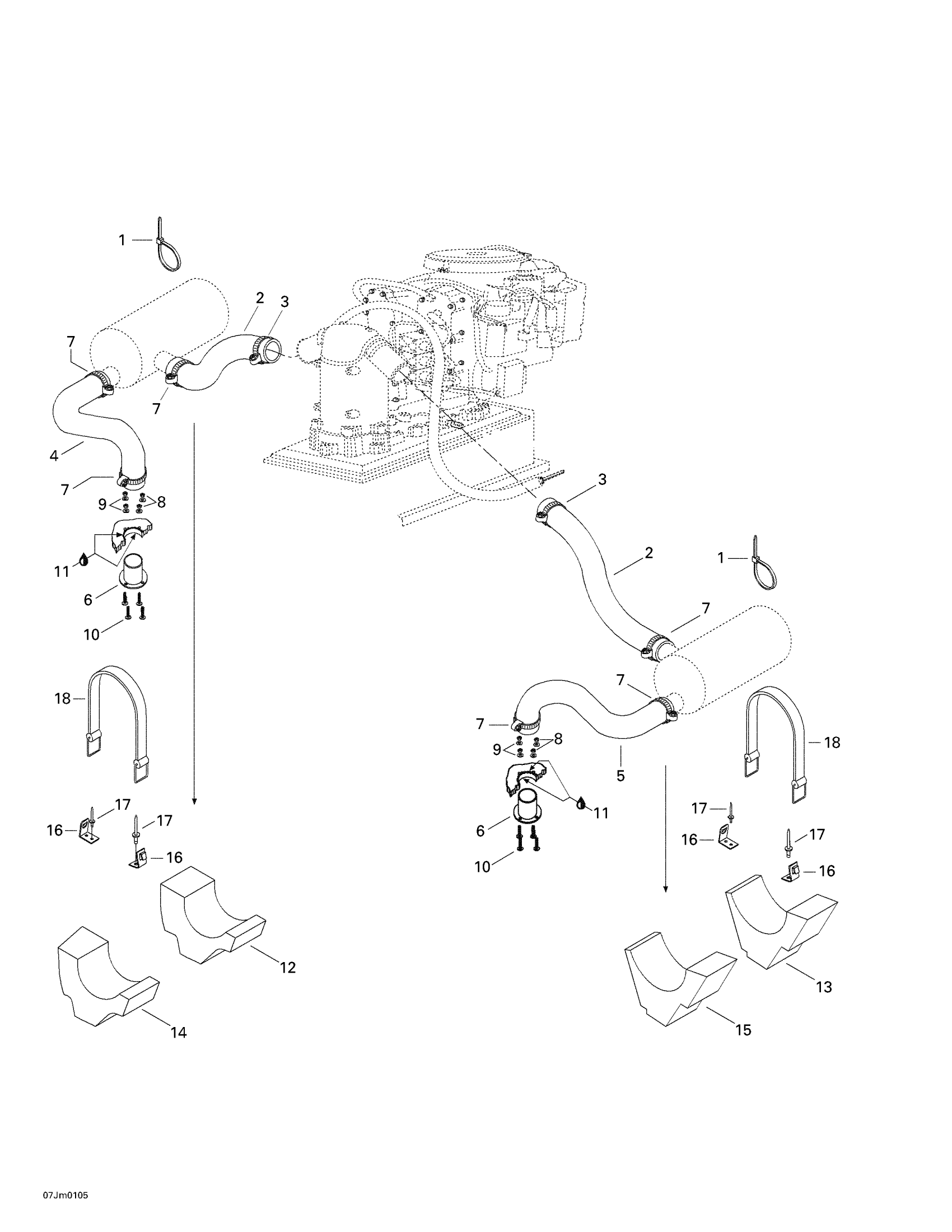

Sea-doo Challenger 2000, Exhaust System Diagram

FLEXIBLE EXHAUST - Call your local BRP dealership

Exhaust Hose | 5171 (240 EFI)

Exhaust Hose | 5171 (240 EFI)

Exhaust Outlet Ass'y

LH Muffler Support | 5171 (240 EFI)

RH Muffler Support | 5171 (240 EFI)

LH Rear Muffler Support

RH Muffler Support | 5171 (240 EFI)

Strap Clip 90°

STRAP - Call your local BRP dealership
