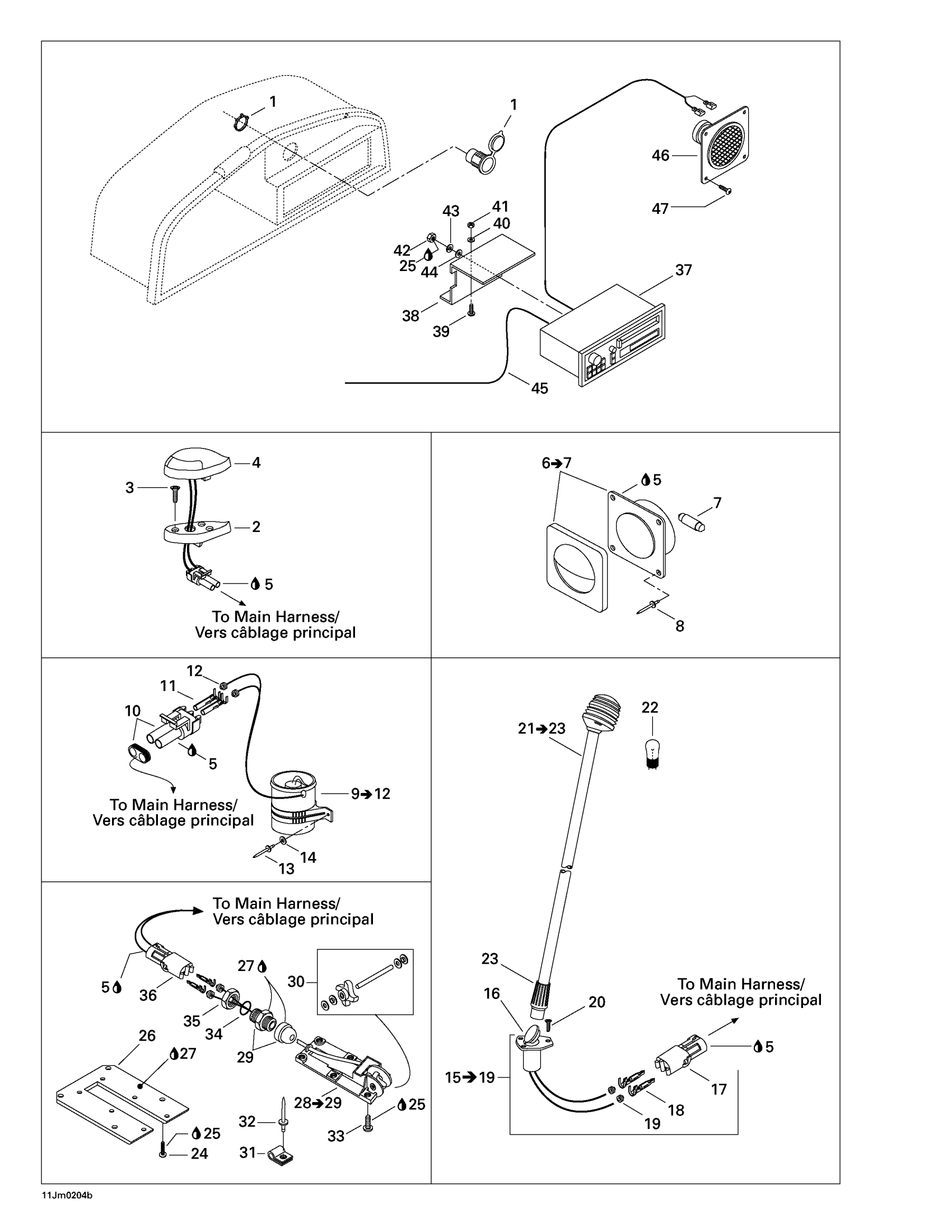

Sea-doo Challenger 1800, 5701 (210), 2002 Electrical Accessories 2 Diagram

#

Description
Price

1

DC Outlet

710001248

$31.17

2

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

3

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

4

Front Lamp

204470311

Unavailable

5

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

6

Courtesy Light Ass'y | Includes 29 to 30

204470026

$46.12

7

BULB - Call your local BRP dealership

204470081

Unavailable

8

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

$0.35

9

Fan Ass'y | Includes 44 to 47

204470108

$114.37

10

Male Connector, 2 Circuits

278000220

$11.02

11

Female Terminal

278000223

$2.55

12

Wire Seal

278000218

$3.48

13

Pop Rivet 3/16"

293150008

$0.40

14

Flat Washer 5 mm, Stainless

234052600

$0.64

15

Rear Light Base Ass'y | Includes 33 to 36

278000674

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Female Housing, 2 Circuits

278000217

$7.59

18

Male Terminal | XT Models

278000222

$2.55

19

Wire Seal

278000218

$3.48

20

Phillips Tapping Screw M4.2 X 32

209943260

$1.45

21

Rear Lamp Pole | Includes 17 to 19, Models Without Tower

204470022

Unavailable

22

Bulb

204470053

Unavailable

23

COLLAR - Call your local BRP dealership

204470350

Unavailable

24

Phillips Screw M6 X 35 | W/O Weedless System

208563560

$1.94

25

Loctite 243, 10 ml

293800060

$20.77

26

Sensor Support

204470538

Unavailable

27

Silicone Sealant 51388, 300 ml

296000309

$35.72

28

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

29

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

$15.02

30

Paddle Wheel Kit

295500108

Unavailable

31

Cable Clamp 3/16”

204100026

Unavailable

32

Pop Rivet 3/16"

293150088

$0.91

33

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

34

SEAL WASHER - Call your local BRP dealership

278000416

$6.31

35

LOCKING NUT - Call your local BRP dealership

293710032

$7.09

36

Female Housing, 2 Circuits

278000217

$7.59

37

Compact Disc Radio

204470682

Unavailable

38

Radio Support

204470688

Unavailable

39

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208462060

$1.15

40

Flat Washer M6, Stainless

234062600

$0.64

41

Hex. Elastic Stop Nut M6

232561600

$0.92

42

Hex. Nut M5

232051600

$0.92

43

Helical Lock Washer M5

234151601

$0.91

44

Flat Washer 5 mm, Stainless

234052600

$0.64

45

Antenna

204470380

Unavailable

46

Speaker

204470378

Unavailable

47

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable
