- Challenger 1800, 5701 (210), 2002
Seat (front And Rear)

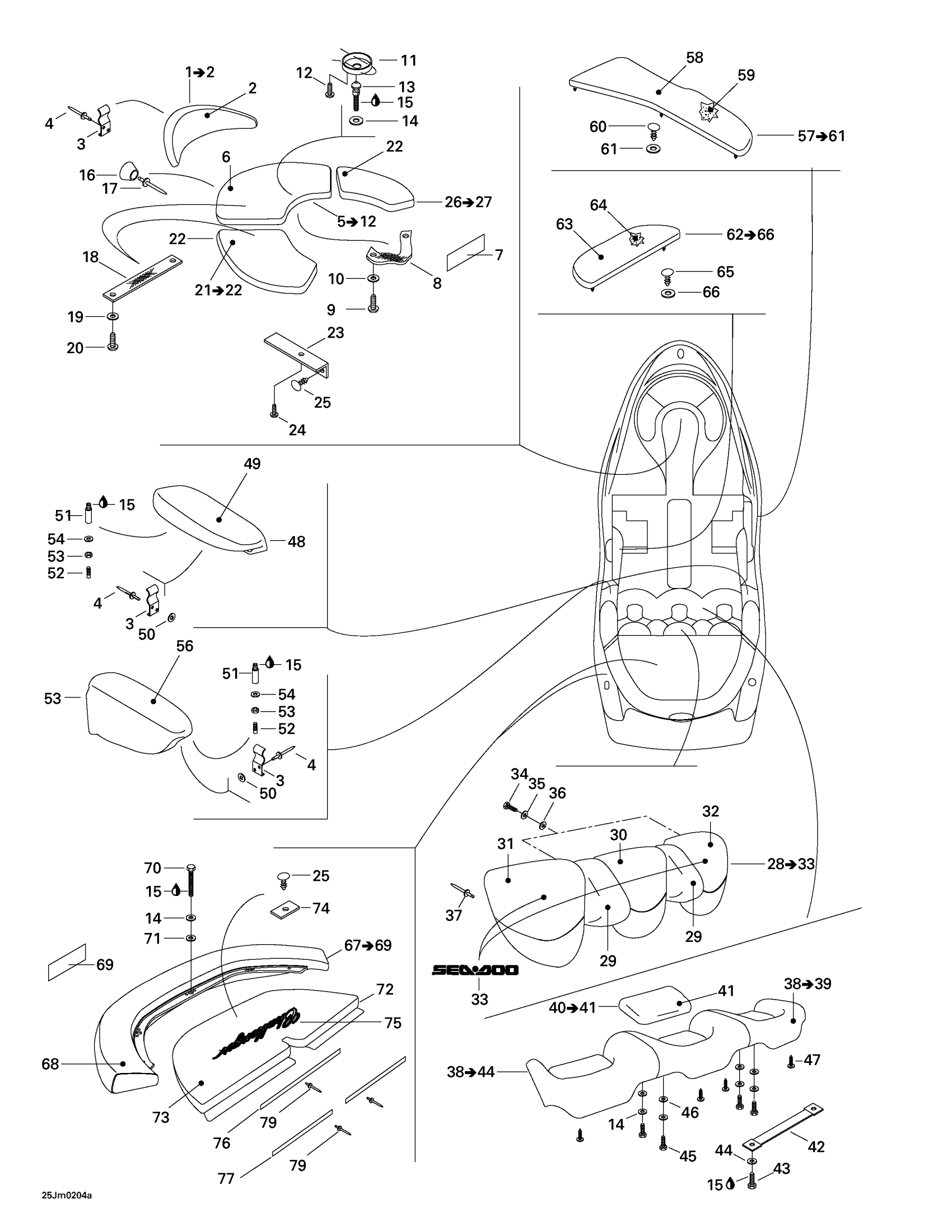

Sea-doo Challenger 1800, 5701 (210), 2002 Seat (front And Rear) Diagram
#
1
Front Backrest Ass'y | Includes 1 - 2.
204610391
Unavailable
2
Backrest Cover (Colorado Pearl)
204610392
Unavailable
3
SEAT SUPPORT - Call your local BRP dealership
269000388
Unavailable
4
Pop Rivet 3/16"
293150043
Unavailable
5
Center Front Seat Ass'y | Includes 5 - 12.
204611190
Unavailable
6
Front Seat Cover (Metallic Quartz)
204611191
Unavailable
7
Staple Cover, Meter
204610184
Unavailable
8
Passenger Strap
293000060
Unavailable
9
Screw K40 X 10
241140060
Unavailable
10
Flat Washer 4 mm, Stainless
234042600
Unavailable
11
Front Seat Latch
204610178
Unavailable
13
Seat Stud
204610207
Unavailable
14
Flat Washer M6, Stainless
234062600
Unavailable
15
Loctite 243, 10 ml
293800060
Unavailable
16
Rubber Stopper
293830043
Unavailable
17
Pop Rivet 3/16"
293150013
Unavailable
18
Strap
204610963
Unavailable
19
Flat Washer 4 mm, Stainless
234042600
Unavailable
20
Screw K40 X 10
241140060
Unavailable
21
LH Front Seat Ass'y | Includes 21 - 22.
204611192
Unavailable
22
LH Seat Cover (Metallic Quartz)
204611193
Unavailable
23
SEAT BRACKET - Call your local BRP dealership
204610100
Unavailable
24
Screw K40 X 10
241140060
Unavailable
25
Black, Dart
293730006
Unavailable
26
RH Front Seat Ass'y | Includes 26 - 27.
204611194
Unavailable
27
RH Seat Cover (Metallic Quartz)
204611195
Unavailable
28
Rear Backrest Ass'y | Includes 28 - 33.
204611697
Unavailable
29
Bump Cover (Colorado Pearl)
204610884
Unavailable
30
Backrest Cover (Metalic Quartz)
204610697
Unavailable
31
RH Backrest Cover (Metalic Quartz)
204610698
Unavailable
32
LH Backrest Cover (Metalic Quartz)
204610699
Unavailable
33
Sea-Doo Logo
204901063
Unavailable
34
Hex. Screw M6 X 40, Scotch Grip
207364060
Unavailable
35
Flat Washer M6, Stainless
234062600
Unavailable
36
Flat Washer 8 mm, Stainless
234082600
Unavailable
37
RIVET - Call your local BRP dealership
293150065
Unavailable
38
Rear Seat Ass'y | Includes 38 - 44.
204611228
Unavailable
39
Rear Seat Cover (Colorado Pearl)
204610888
Unavailable
40
Rear Seat Pillow Ass'y | Includes 40 - 41.
204611200
Unavailable
41
Rear Seat Pillow Cover
204611201
Unavailable
42
Rear Seat Strap (Colorado Pearl)
204610517
Unavailable
43
Hex. Screw M6 X 16
207161660
Unavailable
44
Flat Washer M6, Stainless
234062600
Unavailable
45
Hex. Screw M6 x 45, Scotch Grip
207364560
Unavailable
46
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
47
Dart
293730021
Unavailable
48
RH Rear Seat Arm-Rest Ass'y | Includes 48 - 49.
204610882
Unavailable
49
RH Rear Seat Arm (Colorado Pearl)
204610891
Unavailable
50
Stainless Flat Washer M6
234061600
Unavailable
51
Threaded Rod M5, Scotch Grip
204130015
Unavailable
52
Socket Set Screw M5 X 40, Scotch Grip
206254069
Unavailable
53
Hex. Elastic Nut M5 | X
232551600
Unavailable
54
Flat Washer M6, Stainless
234062600
Unavailable
55
LH Rear Seat Arm-Rest Ass'y | Includes 55 - 56. CHALLENGER 1800 (5702). .
204610883
Unavailable
56
LH Rear Seat Arm-Rest Cover | CHALLENGER 1800 (5702). .
204610892
Unavailable
57
RH Elbow Padding Ass'y | Includes 57 - 61.
204611207
Unavailable
58
RH Elbow Padding Cover (Metalic Quartz
204611208
Unavailable
59
Neoprene Foam
204610121
Unavailable
60
Black, Dart
293730006
Unavailable
61
Flat Washer M6, Stainless
234062600
Unavailable
62
LH Elbow Padding Ass'y | Includes 62 - 66.
204611209
Unavailable
63
LH Elbow Padding Cover (Metalic Quartz)
204611210
Unavailable
64
Neoprene Foam
204610123
Unavailable
65
Black, Dart
293730006
Unavailable
66
Flat Washer M6, Stainless
234062600
Unavailable
67
Rear Spoiler Ass'y | Includes 67 - 69.
204610420
Unavailable
68
Spoiler Cover
204610421
Unavailable
69
Staple Cover, Meter
204610184
Unavailable
70
Hex. Screw M6 X 25, Scotch Grip | With Catalyst
207362560
Unavailable
71
Flat Washer 10 mm, Stainless
234002600
Unavailable
72
Platform Ass'y | Includes 72 - 75. CHALLENGER 1800 (5702). .
204611231
Unavailable
73
Platform Cover (Metalic Quartz)
204610717
Unavailable
74
Strap
204610194
Unavailable
75
Challenger Logo
204901061
Unavailable
76
Velcro 25 Mm X 940 Mm
204611298
Unavailable
77
Velcro 25 Mm X 635 Mm
204611299
Unavailable
78
Pop Rivet 3/16"
293150088
Unavailable
79
Pop Rivet 3/16"
293150008
Unavailable
