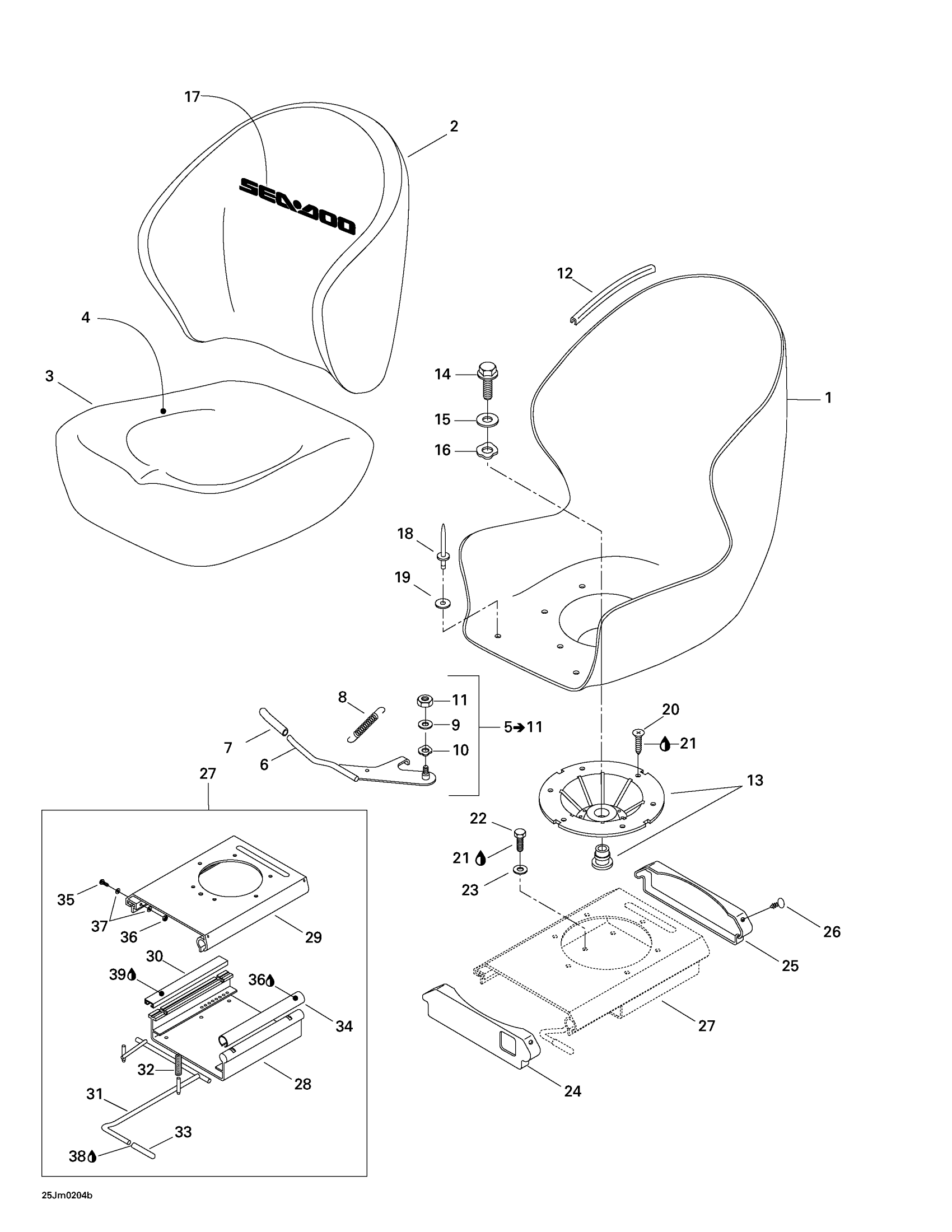

Sea-doo Challenger 1800, 5701 (210), 2002 Seat (driver And Passenger) Diagram

#

Description
Price

1

Driver Seat Ass'y | Includes 1 - 22.

204611698

Unavailable

Driver Seat Ass'y | CHALLENGER 1800 (5702).

204611211

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Backrest Cushion (Metalic Quartz)

295501059

Unavailable

3

Seat Cushion (Metalic Quartz)

204611280

Unavailable

4

Cover Cushion

204611288

Unavailable

5

Lever Arm Ass’y

204610523

Unavailable

6

Lever Arm

204610524

Unavailable

7

Handle

204610348

Unavailable

8

SPRING - Call your local BRP dealership

204610349

Unavailable

9

Stainless Flat Washer M6

234061600

Unavailable

10

Washer

211200059

Unavailable

11

Hex. Elastic Stop Nut M6

232561600

Unavailable

12

TRIM, BLACK - Call your local BRP dealership

204610371

Unavailable

13

SWIVEL PLATE - Call your local BRP dealership

204610513

Unavailable

14

SCREW-SHOULDER - Call your local BRP dealership

211000172

Unavailable

15

FLAT WASHER - Call your local BRP dealership

211200058

Unavailable

16

WASHER - Call your local BRP dealership

293200056

Unavailable

17

Sea-Doo Logo

204901063

Unavailable

18

RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.

293150201

Unavailable

19

FLAT WASHER #10 - Call your local BRP dealership | Except STD

204100059

Unavailable

20

PHILLIPS SCREW M6 X 16 - Call your local BRP dealership

208561660

$2.48

21

Loctite 243, 10 ml

293800060

Unavailable

22

Hex. Screw M6 X 35

207163560

Unavailable

23

Flat Washer M6, Stainless

234062600

Unavailable

24

Front Protector

204610375

Unavailable

25

Rear Protector

204610376

Unavailable

26

Black, Dart

293730006

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Lower Part

269500636

Unavailable

29

Upper Part

269500637

Unavailable

30

Rectangular Bushing

269500638

Unavailable

31

Rod Ass'y

269500639

Unavailable

32

Spring

269500640

Unavailable

33

Handle

204610348

Unavailable

34

Circle Bushing

269500642

Unavailable

35

Hex. Screw M6 X 50

207065060

Unavailable

36

Hex. Elastic Stop Nut M6

232561600

Unavailable

37

Stainless Flat Washer M6

234061600

Unavailable

38

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

39

Synthetic Grease, 400 G

293550010

Unavailable
