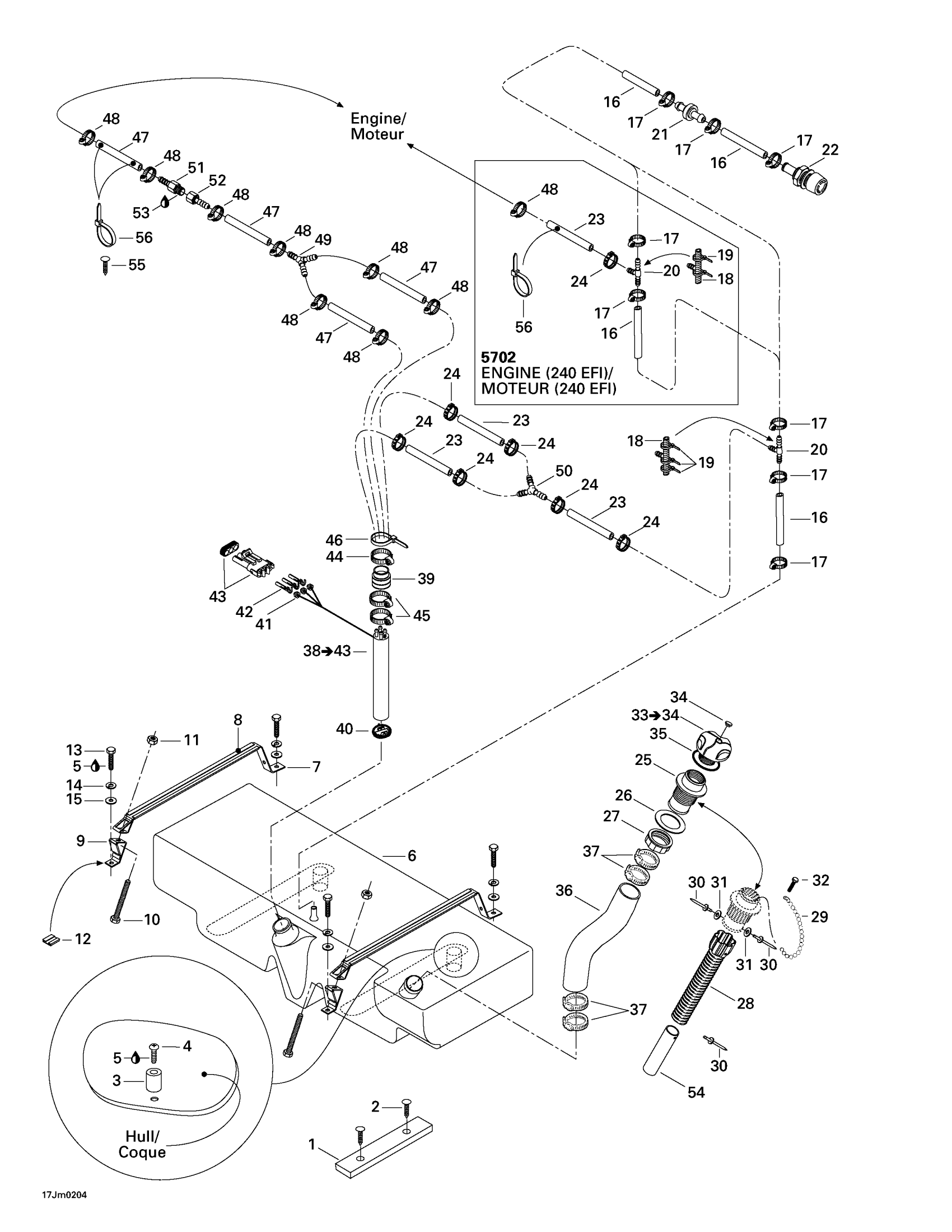

Sea-doo Challenger 1800, 5701 (210), 2002 Fuel System Diagram

#

Description
Price

1

Rubber Pad

204060701

Unavailable

2

Black, Dart

293730006

$0.81

3

Rubber Bumper

204560039

$16.60

4

Phillips Screw M5 X 35

208653560

$1.85

5

Loctite 271, 10 ml

293800005

$20.77

6

Fuel Tank, Plastic

204560073

Unavailable

7

Fuel Tank Strap

204560189

Unavailable

8

Protector Pad

204560037

Unavailable

9

TANK BRACKET - Call your local BRP dealership

275500252

Unavailable

10

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

$2.55

11

Hex. Elastic Nut M8

232581600

$1.25

12

Protecteur Pad

204560027

Unavailable

13

Hex. Screw M8 X 30

207183060

$1.30

14

Lock Washer 8 mm, Stainless

234181601

$0.46

15

Flat Washer 8 mm, Stainless

234082600

$1.98

16

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

17

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Tie-Rap 180 mm

414115200

$0.09

20

T-Fitting

204560038

Unavailable

21

VENT FUEL SURGE PROTECTOR - Call your local BRP dealership

204560101

Unavailable

22

VENT BOAT - Call your local BRP dealership

275500206

Unavailable

23

HOSE 1/4 - Call your local BRP dealership

204560178

Unavailable

24

NORMA CLAMP - Call your local BRP dealership

293650121

$7.09

25

Filler Neck

275500247

Unavailable

26

Gasket

293250029

$12.06

27

Filler Neck Nut, Fuel

211100012

$10.02

28

FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.

275500757

Unavailable

29

Oil Cap Chain

275500015

Unavailable

30

Rivet 1/8”

293150057

Unavailable

31

Flat Washer M3, Stainless

234032600

$0.54

32

Screw K40 X 10

241140060

$1.25

33

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$22.72

34

Black, Snap Cap

293000034

$7.48

35

Gasket

293250017

Unavailable

36

Filler Neck Hose

204560033

$82.28

37

Norma Clamp

293650081

$9.87

38

BAFFLE PICK-UP ASS?Y - Call your local BRP dealership | Includes 43 to 48

204560223

Unavailable

39

Fuel Tube Adaptor

204560066

Unavailable

40

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

41

Wire Seal

278000218

$3.48

42

Female Terminal

278000223

$2.55

43

Male Housing, 3 Circuits

278000273

$7.59

44

Norma Clamp

293650077

$6.11

45

Norma Clamp

293650081

$9.87

46

Tie-Rap 180 mm

414115200

$0.09

47

Hose 5/16”, Meter

204560177

Unavailable

48

NORMA CLAMP - Call your local BRP dealership

293650070

Unavailable

49

Y-Fitting

204550001

Unavailable

50

Y-Fitting

293710059

$8.19

51

Anti-Siphon Valve | CHALLENGER 1800 (5774).

204560122

Unavailable

52

HOSE FITTING - Call your local BRP dealership | CHALLENGER 1800 (5774).

293700038

Unavailable

53

Was 293800013 Loctite 56765

219704454

$65.35

54

Not Available As Spare Part - Friction Washer

Unavailable

55

Black, Dart

293730006

$0.81

56

Tie-Rap 180 mm

414115200

$0.09
