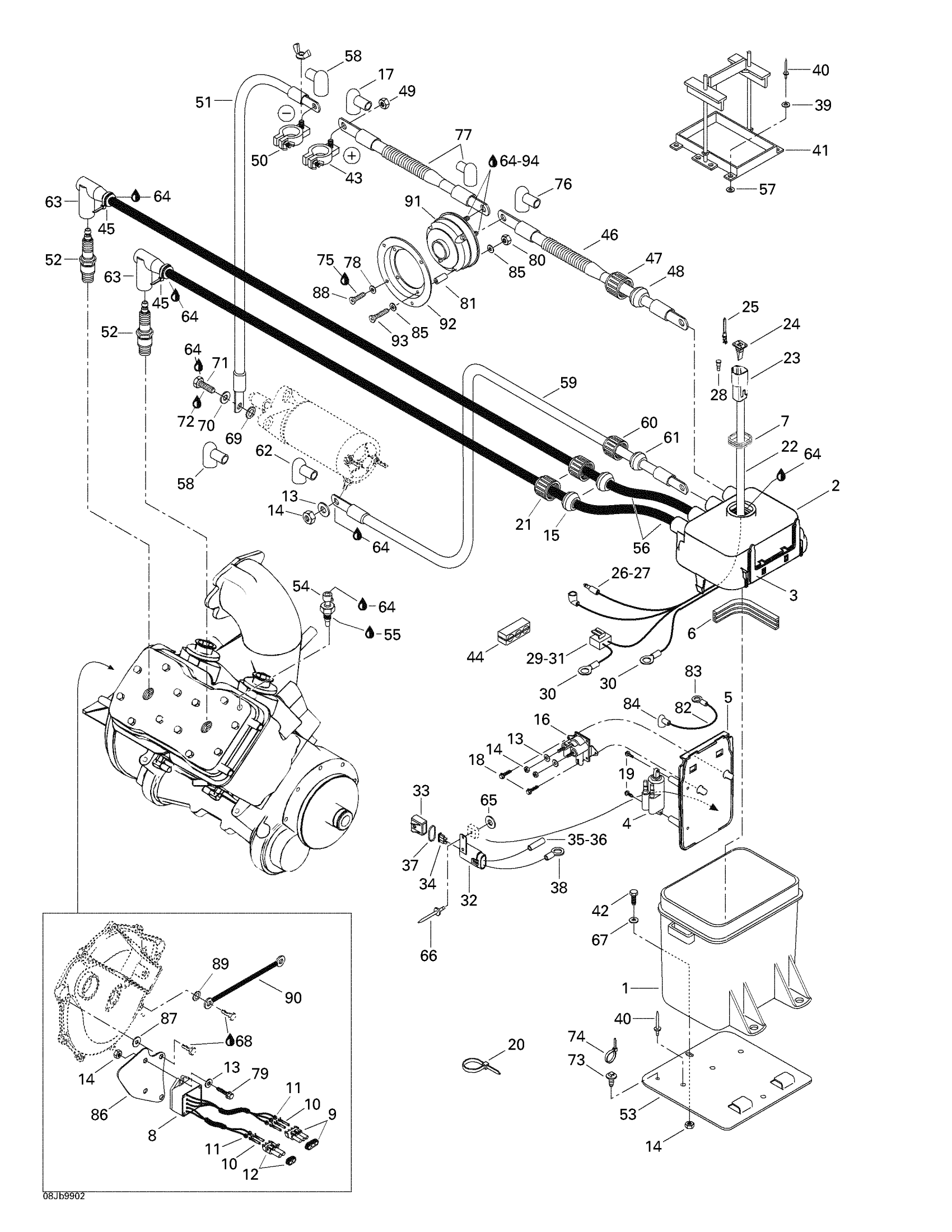

Sea-doo Challenger 1800, 5675/5679, 1999 Electrical System Diagram

#

Description
Price

1

High Voltage Box Base

278001089

Unavailable

2

Cover

278001265

Unavailable

3

Ground Plate

278000732

Unavailable

4

RH Ignition Coil

204470235

Unavailable

LH Ignition Coil

204470236

Unavailable

5

Mounting Plate

278000826

Unavailable

6

GASKET - Call your local BRP dealership

278000440

Unavailable

7

Gasket

293200030

Unavailable

8

RECTIFIER ASS'Y - Call your local BRP dealership | Includes 8 - 12.

278001240

Unavailable

9

Male Housing, 3 Circuits

278000273

Unavailable

10

Female Terminal

409007300

$0.36

11

Wire Seal

278000218

Unavailable

12

Male Connector, 2 Circuits

278000220

$11.02

13

Stainless Flat Washer M6

234061600

$0.25

14

Hex. Elastic Stop Nut M6

232561600

$0.92

15

Grommet

278000682

Unavailable

16

Starter Relay

278003012

Unavailable

17

RED BOOT - Call your local BRP dealership

204470269

Unavailable

18

Hex. Flange Screw M6 X 10

210261040

Unavailable

19

14 X 1 UNSL HX WSHR T/AB BLK ZINC - Call your local BRP dealership This part replaces 250000005.

296000365

Unavailable

20

Tie Wrap 94 mm | 4X4

293750001

$0.83

21

Electric Wire Cap

278000100

Unavailable

22

Electric Box Harness | Includes 22 - 31.

204470166

Unavailable

23

Male Terminal Housing, 6 Circuits

710001539

$15.57

24

Female Lock, 6 Circuits

278000735

$3.02

25

Male Terminal

278000631

$4.12

26

Male Terminal

278000230

Unavailable

27

Insulated Sheath

278001008

Unavailable

28

Sealing Cap

293000052

Unavailable

29

Female Terminal

278001114

$2.55

30

Open Barrel

278000992

$1.79

31

Male Connector, 2 Circuits

278001113

$12.65

32

Harness Fuse 15 Amp | Includes 32 - 38.

204470161

Unavailable

33

Fuse Holder Cap

278001326

$6.03

34

Fuse, 15 Amperes

278000343

$2.72

35

Female Terminal | DS 650 X

278001009

Unavailable

36

Insulated Sheath

278001007

Unavailable

37

Cushion

278000805

$3.22

38

Ring Terminal

278000300

Unavailable

39

Flat Washer 5 mm, Stainless

234052600

Unavailable

40

Pop Rivet 3/16"

293150008

Unavailable

41

Battery Support

204470254

Unavailable

42

Hex. Forming Screw M6 X 20

207162060

Unavailable

43

Battery Pole (Positive)

278000679

Unavailable

44

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

45

Tie Wrap 142 mm

293750002

Unavailable

46

RH Battery Cable (Red) | Includes 46 - 48.

204470222

Unavailable

LH Battery Cable (Red)

204470168

Unavailable

47

Electric Wire Cap

278000100

Unavailable

48

GROMMET - Call your local BRP dealership

278000098

Unavailable

49

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

50

Battery Pole (Negative)

278000680

Unavailable

51

RH GROUND CABLE - Call your local BRP dealership

204470199

Unavailable

LH Ground Cable

204470051

Unavailable

52

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

Unavailable

53

Box Support

204470176

Unavailable

54

Temperature Sensor

278000965

Unavailable

55

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

56

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

57

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

58

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

59

RH Starter Cable | Includes 59 - 62.

204470234

Unavailable

LH Starter Cable

204470221

Unavailable

60

Electric Wire Cap

278000100

Unavailable

61

GROMMET - Call your local BRP dealership

278000098

Unavailable

62

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

63

Spark Plug Cap

204470091

Unavailable

64

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

65

Flat Washer, Emhart

213200016

Unavailable

66

Pop Rivet 3/16"

293150005

Unavailable

67

Flat Washer M6, Stainless

234062600

Unavailable

68

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

69

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

70

Stainless, Flat Washer 8 mm

234081600

Unavailable

71

Hex. Screw M8 X 16

207181660

Unavailable

72

Loctite 271, 10 ml

293800005

Unavailable

73

Mount Dart

293730040

$0.86

74

Tie Wrap 142 mm

293750002

Unavailable

75

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

76

RED BOOT - Call your local BRP dealership

204470269

Unavailable

77

POSITIVE SWITCH CABLE - Call your local BRP dealership

204470250

Unavailable

78

Flat Washer 4 mm, Stainless

234041600

$0.91

79

Hex. Forming Screw M6 X 20

207162060

Unavailable

80

Hex. Elastic Nut M5 | X

232551600

Unavailable

81

NYLON SPACER - Call your local BRP dealership

204470330

Unavailable

82

Ground Harness | Includes 82 - 84.

278000664

Unavailable

83

Ring Terminal

278000300

Unavailable

84

FEMALE TERMINAL - Call your local BRP dealership

278000228

Unavailable

85

Flat Washer M5, Stainless

234051600

$0.64

86

Regulator Support

204250037

Unavailable

87

Flat Washer, Stainless/Neoprene

211200055

Unavailable

88

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

89

External Serrated Lock Washer 6 mm

234461608

Unavailable

90

Ground Cable

204470052

Unavailable

91

Battery Switch

204470329

Unavailable

92

SWITCH SUPPORT - Call your local BRP dealership

204470259

Unavailable

93

Phillips Screw M5 X 25

208652560

Unavailable

94

Loctite 243, 10 ml

293800060

$20.77

95

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable
