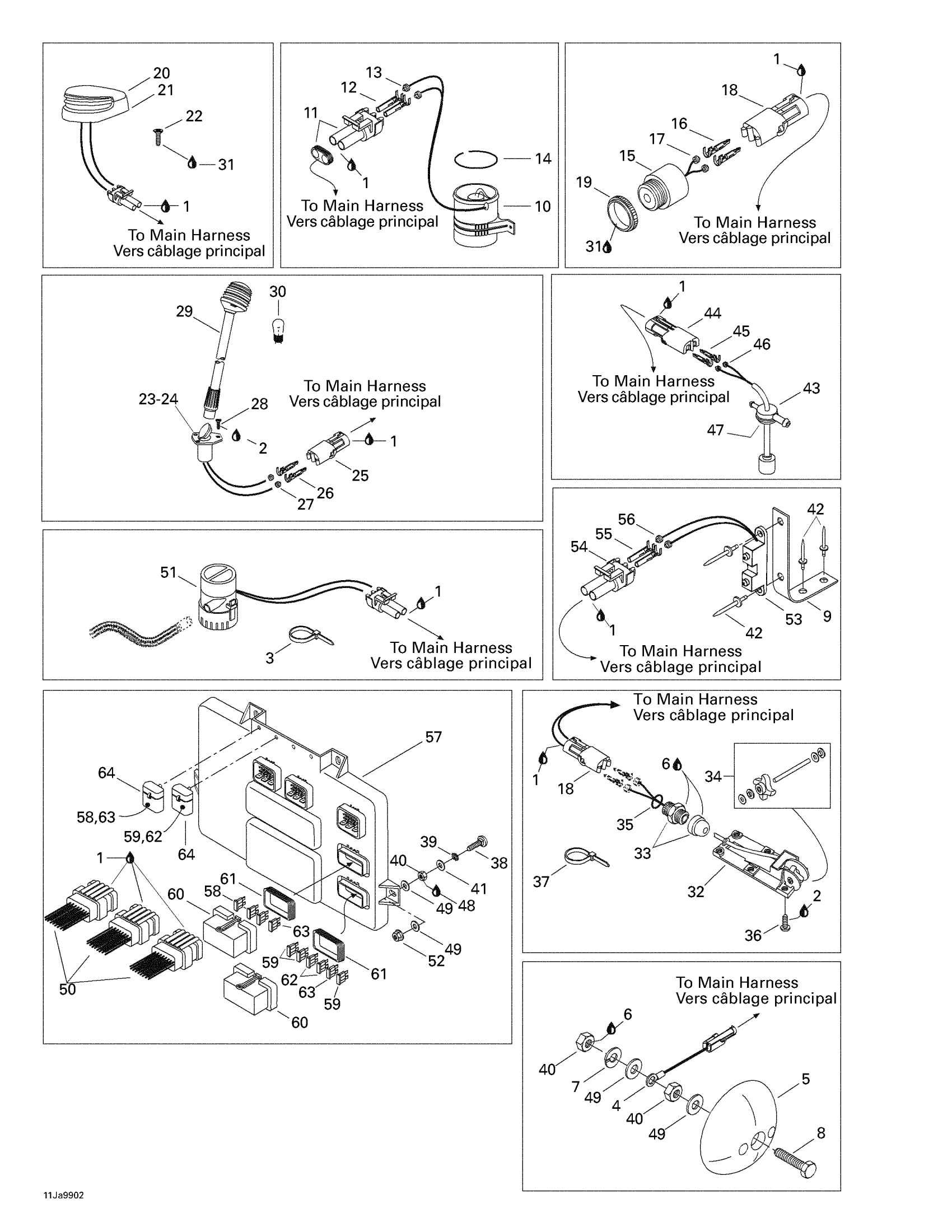

Sea-doo Challenger 1800, 5675/5679, 1999 Electrical Accessories 2 Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

2

Loctite 243, 10 ml

293800060

$20.77

3

Tie Wrap 142 mm

293750002

Unavailable

4

Anode Extension

204470334

Unavailable

5

Anode

204470290

Unavailable

6

Silicone Sealant 51388, 300 ml

296000309

Unavailable

7

Lock Washer Helical M6

234161601

Unavailable

8

Hex. Screw

204100001

Unavailable

9

Sensor Support

204470058

Unavailable

10

Fan Ass'y | Includes 44 to 47

204470108

Unavailable

11

Male Connector, 2 Circuits

278000220

$11.02

12

Female Terminal

278000223

Unavailable

13

Wire Seal

278000218

Unavailable

14

BROACH - Call your local BRP dealership

204000133

Unavailable

15

BUZZER ASSEMBY - Call your local BRP dealership | Includes 15 - 17.

278000887

Unavailable

16

Male Terminal | XT Models

278000222

$2.55

17

Wire Seal

278000218

Unavailable

18

Female Housing, 2 Circuits

278000217

Unavailable

19

Buzzer Nut

278000707

Unavailable

20

Front Lamp

204470311

Unavailable

21

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

22

Phillips Screw M4 X 16

208641660

$0.74

23

Rear Light Base Ass'y | Includes 33 to 36

278000674

Unavailable

24

Rear Lamp Base Ass'y | Includes 12 to 16

204471177

Unavailable

25

Female Housing, 2 Circuits

278000217

Unavailable

26

Male Terminal | XT Models

278000222

$2.55

27

Wire Seal

278000218

Unavailable

28

SCREW M4 X 30 - Call your local BRP dealership

208443070

Unavailable

29

Rear Lamp Pole | Includes 17 to 19, Models Without Tower

204470022

Unavailable

30

Bulb

204470053

Unavailable

31

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

32

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

33

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

34

Paddle Wheel Kit

295500108

Unavailable

35

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

36

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

37

Tie Wrap 94 mm | 4X4

293750001

$0.83

38

Screw 1/4”-20 X 1-3/4”

211000193

Unavailable

39

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

40

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

41

Stainless, Flat Washer 8 mm

234081600

Unavailable

42

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

43

OIL LEVEL SENSOR ASS'Y - Call your local BRP dealership | Includes 33 - 36.

204470106

Unavailable

44

Female Housing, 2 Circuits

278000217

Unavailable

45

Male Terminal | XT Models

278000222

$2.55

46

Wire Seal

278000218

Unavailable

47

Grommet

204470104

Unavailable

48

Loctite 271, 10 ml

293800005

Unavailable

49

Flat Washer M6, Stainless

234062600

Unavailable

50

Harness CE

204470304

Unavailable

51

Bilge Pump This part replaces 204470220.

278002020

Unavailable

52

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

53

WATER SENSOR - Call your local BRP dealership

204470038

Unavailable

54

Male Connector, 2 Circuits

278000220

$11.02

55

Female Terminal

278000223

Unavailable

56

Wire Seal

278000218

Unavailable

57

Electronic Module Ass'y | Includes 57 - 64.

204470155

Unavailable

58

Fuse, 5 Amperes | CE

278000344

$3.22

59

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

60

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

61

Cover Seal

278001070

Unavailable

62

Fuse, 10 Amperes | North America

278001197

Unavailable

63

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

64

Fuse Holder

278000379

Unavailable
