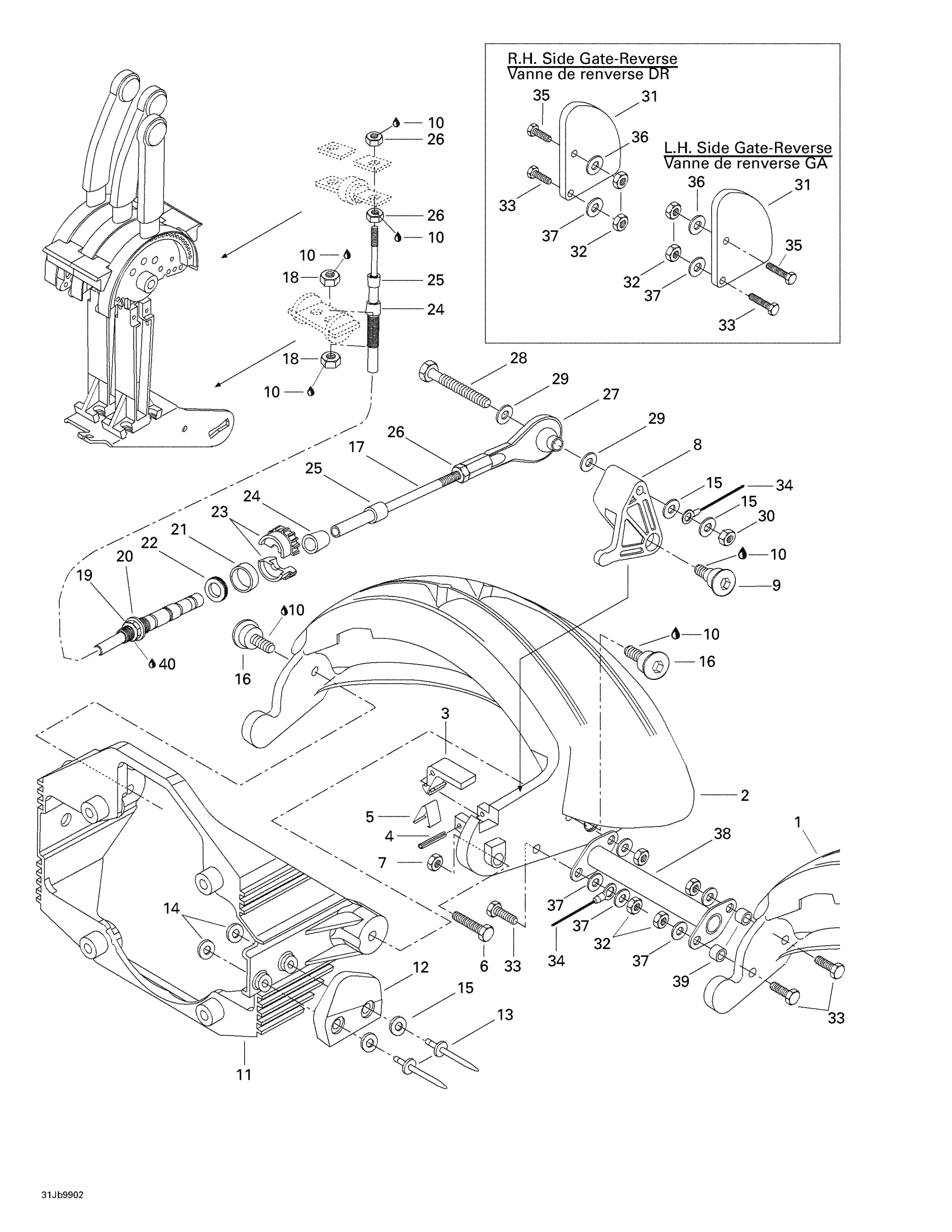

Sea-doo Challenger 1800, 5675/5679, 1999 Reverse Diagram
#
1
Reverse Gate L.H
204170056
Unavailable
2
Reverse Gate R.H
204170055
Unavailable
3
HOOK LEVER - Call your local BRP dealership
271000430
Unavailable
4
Pin
211400009
Unavailable
5
Spring
271000431
Unavailable
6
Hex. Forming Screw M6 X 20
207162060
Unavailable
8
CABLE LEVER - Call your local BRP dealership
271000583
Unavailable
9
SCREW-SHOULDER M8 - Call your local BRP dealership
211000077
Unavailable
11
Reverse Gate Support
204170061
Unavailable
12
PAWL STOP - Call your local BRP dealership
204170031
Unavailable
13
Pop Rivet 3/16"
293150005
Unavailable
14
Flat Washer | XT
211200035
Unavailable
16
Screw
211000007
Unavailable
17
REVERSE CABLE R.H - Call your local BRP dealership
204170058
Unavailable
18
Hex. Jam Nut
212100006
Unavailable
19
Hex. Jam Nut 1/2-20
211100011
Unavailable
20
FLAT WASHER, STAINLESS - Call your local BRP dealership
211200006
Unavailable
21
Retaining Ring
211100010
Unavailable
22
RUBBER WASHER - Call your local BRP dealership
211100009
Unavailable
23
Half-Ring
277000168
Unavailable
24
Boot, Large
277000473
Unavailable
25
Boot, Small
277000466
Unavailable
26
Hex. Nut
212100005
Unavailable
27
BALL JOINT - Call your local BRP dealership
204170062
Unavailable
28
Hex. Screw M6 x 65 | Produced Before February 01 2010
207066560
Unavailable
29
Flat Washer M6, Stainless
234062600
Unavailable
31
RH Water Seal
293200047
Unavailable
Reverse Gate Shutter (Port Side)
293200046
Unavailable
32
Elastic Stop Nut M4
232541600
Unavailable
33
Hex. Screw M4 x 30
207143060
Unavailable
34
Retainer Cable
204170067
Unavailable
35
Hex. Screw M4 X 16 | Europe
207141660
Unavailable
36
Flat Washer 4 mm
234040600
Unavailable
37
Flat Washer 4 mm, Stainless
234042600
Unavailable
38
Tie Rod - Reverse
204170064
Unavailable
39
SPACER BUSHING - Call your local BRP dealership
204170026
Unavailable
40
Silicone Sealant 51388, 300 ml
296000309
Unavailable
