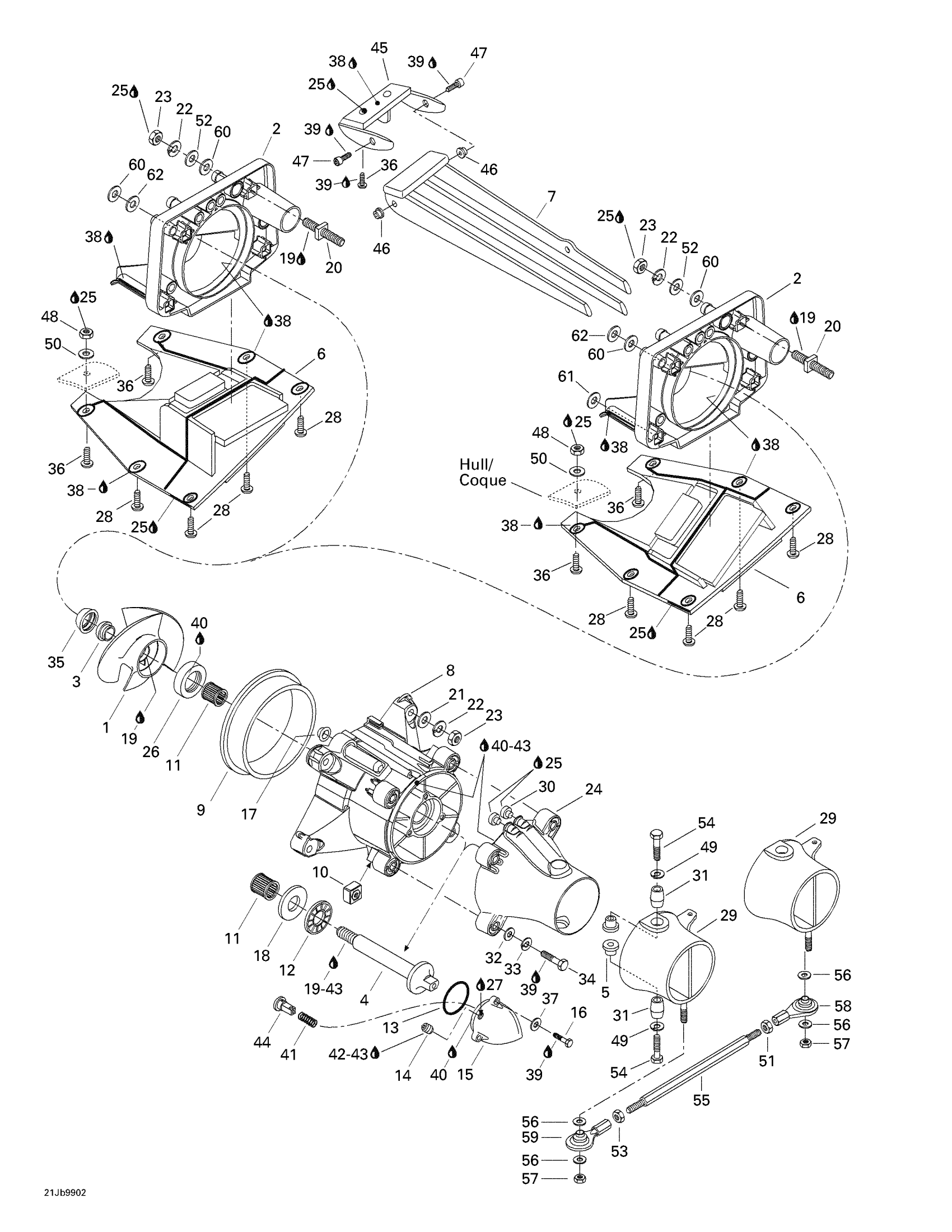

Sea-doo Challenger 1800, 5675/5679, 1999 Propulsion System Diagram

#

Description
Price

1

Stainless Steel Impeller

204160048

Unavailable

2

Pump Support

204120127

Unavailable

3

Impeller Boot

271000516

Unavailable

4

IMPELLER SHAFT - Call your local BRP dealership

271000291

Unavailable

5

Venturi Bushing

293900001

Unavailable

6

RH Shoe

204120094

Unavailable

LH Shoe

204120095

Unavailable

7

RH MOBIL GRATE - Call your local BRP dealership

204120084

Unavailable

LH Mobil Grate

204120087

Unavailable

8

IMPELLER HOUSING ASS'Y - Call your local BRP dealership | Includes 8 - 10.

204160055

Unavailable

9

Wear Ring

271000290

Unavailable

10

Square Nut M8

211100033

Unavailable

11

Needle Bearing

293350017

Unavailable

12

BEARING THRUST - Call your local BRP dealership

293350019

Unavailable

13

O-Ring

293250085

$0.83

14

Pipe Plug Socket Head 1/8-27 Npt

211500001

Unavailable

15

IMPELLER COVER - Call your local BRP dealership

271000895

Unavailable

16

Hex. Screw M5 X 20

207152060

Unavailable

17

Watertight Seal

293250084

Unavailable

18

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

19

Loctite 271, 10 ml

293800005

Unavailable

20

Square Stud

250300022

Unavailable

21

Flat Washer 10 mm, Stainless

234001600

Unavailable

22

Helicoidal Lock Washer M10 | XT Models

234101601

Unavailable

23

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

24

Venturi

204160035

Unavailable

25

Silicone Sealant 51388, 300 ml

296000309

Unavailable

26

Oil Seal

267000094

Unavailable

27

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

Unavailable

28

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

29

Steering Nozzle (Black)

204120149

Unavailable

30

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

31

Spacer

204120078

Unavailable

32

Stainless, Flat Washer 8 mm

234081600

Unavailable

33

Lock Washer 8 mm, Stainless

234181601

Unavailable

34

Hex. Screw M8 x 90

207189060

Unavailable

35

Impeller Ring

271000517

Unavailable

36

OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership

208563060

Unavailable

37

Flat Washer M5, Stainless

234051600

$0.64

38

Instant Gasket

219701421

Unavailable

39

Loctite 243, 10 ml

293800060

$20.77

40

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

41

SPRING - Call your local BRP dealership

271000704

Unavailable

42

Was 293800013 Loctite 56765

219704454

Unavailable

43

Was 293800041 Loctite Primer 7649

219704458

Unavailable

44

Pusher

271000898

Unavailable

45

Grate Support, Starboard

204120083

Unavailable

GRATE SUPPORT, PORT SIDE - Call your local BRP dealership

204120086

Unavailable

46

PLASTIC BUSHING - Call your local BRP dealership

204390001

Unavailable

47

SOCKET SCREW M6 X 8 - Call your local BRP dealership

211000099

Unavailable

48

Hex. Elastic Stop Nut M6

232561600

$0.92

49

Lock Spring Washer 8 mm, Stainless

234180602

Unavailable

50

Flat Washer M6, Stainless

234062600

Unavailable

51

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

$6.23

52

Flat Washer 10 mm, Stainless

234002600

Unavailable

53

HEX. NUT 5/16-24 - Call your local BRP dealership

211100034

Unavailable

54

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

55

Link Rod

204120076

Unavailable

56

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

57

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

58

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

59

BALL JOINT - Call your local BRP dealership

204120075

Unavailable

60

Shim 1.3 mm

204120128

Unavailable

61

Shim 0.3 mm

204120129

Unavailable

62

NEEDS DESCRIPTION This part replaces 204120067.

0460011

Unavailable
