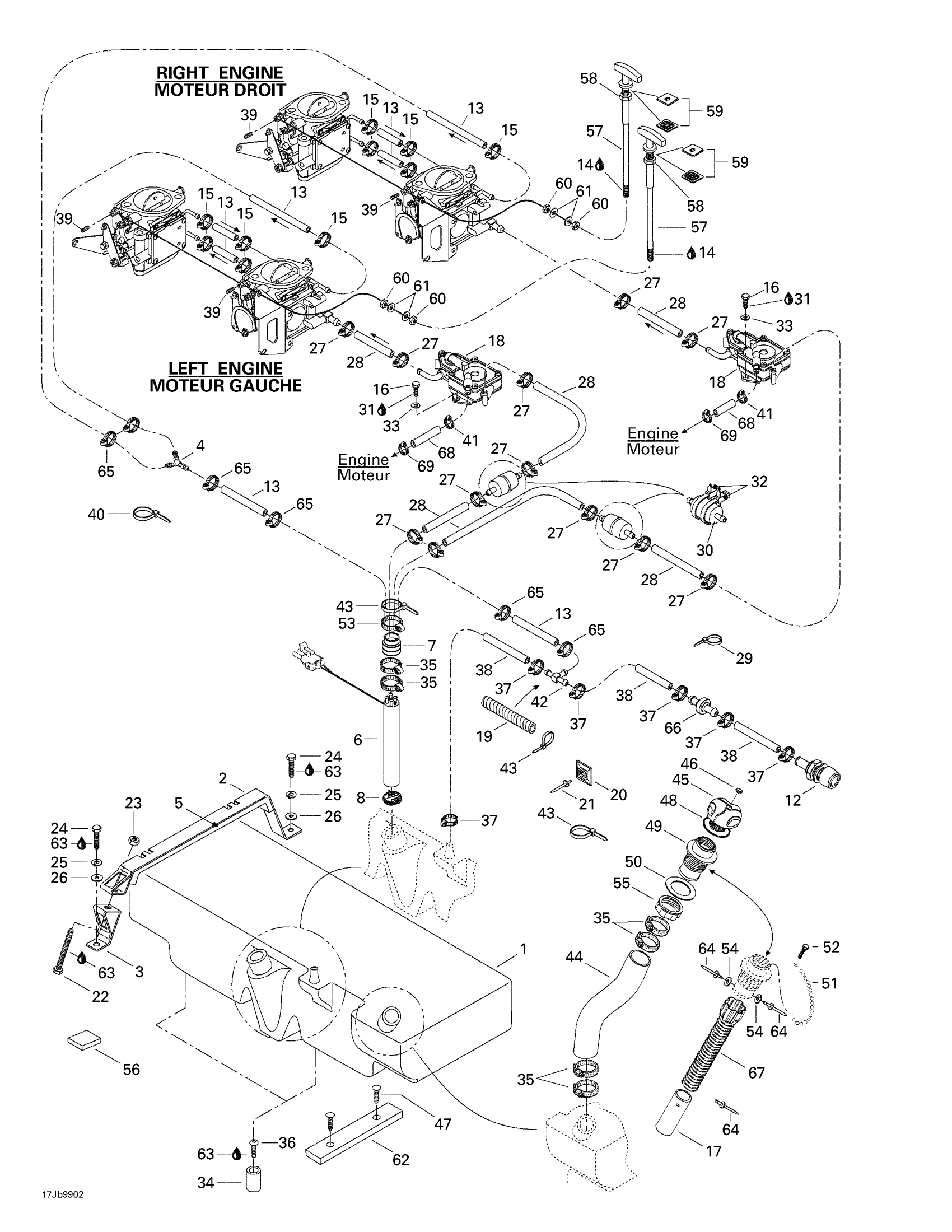

Sea-doo Challenger 1800, 5675/5679, 1999 Fuel System Diagram

#

Description
Price

1

Fuel Tank, Plastic

204560073

Unavailable

2

Fuel Tank Strap

204560011

Unavailable

3

TANK BRACKET - Call your local BRP dealership

275500252

Unavailable

4

Y-Fitting

293710059

$9.40

5

Protector Pad

204560037

Unavailable

6

BAFFLE PICK-UP ASS?Y - Call your local BRP dealership | Includes 43 to 48

204560223

Unavailable

7

Fuel Tube Adaptor

204560066

Unavailable

8

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

9

Wire Seal

278000218

$4.00

10

Female Terminal

278000223

$2.93

11

Male Housing, 3 Circuits

278000273

$8.72

12

VENT BOAT - Call your local BRP dealership

275500206

Unavailable

13

Hose 6 mm (Meter)

204560099

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

NORMA CLAMP - Call your local BRP dealership

293650070

Unavailable

16

Hex. Cap Screw M6 X 12

207161260

$1.21

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Fuel Pump

270500388

$84.99

19

Not Available As Spare Part - Friction Washer

Unavailable

20

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

21

Pop Rivet 3/16"

293150008

$0.46

22

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

23

Hex. Elastic Nut M8

232581600

$1.43

24

Hex. Screw M8 X 30

207183060

$1.49

25

Lock Washer 8 mm, Stainless

234181601

$0.52

26

Flat Washer 8 mm, Stainless

234082600

$2.27

27

NORMA CLAMP - Call your local BRP dealership

293650087

Unavailable

28

Hose 5/16"

204560070

Unavailable

29

Tie Wrap 368 mm

293750008

$0.97

30

FUEL FILTER - Call your local BRP dealership

204560077

Unavailable

31

Loctite 243, 10 ml

293800060

$21.49

32

Tie-Rap

293750017

Unavailable

33

Stainless Flat Washer M6

234061600

$0.28

34

Rubber Bumper

204560039

Unavailable

35

Norma Clamp

293650081

$11.33

36

Phillips Screw M5 X 35

208653560

$2.12

37

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

38

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

39

Socket Set Screw M4 x 6

206540660

Unavailable

40

Tie Wrap 142 mm

293750002

$1.01

41

Oetiker Clamp

293650042

$2.82

42

T-Fitting

204560038

Unavailable

43

Tie-Rap 180 mm

414115200

$0.10

44

Filler Neck Hose

204560033

Unavailable

45

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$26.09

46

Black, Snap Cap

293000034

$8.58

47

Black, Dart

293730006

$0.93

48

Gasket

293250017

Unavailable

49

Filler Neck

275500247

Unavailable

50

Gasket

293250029

$13.85

51

Oil Cap Chain

275500015

Unavailable

52

Screw K40 X 10

241140060

$1.43

53

Norma Clamp

293650077

$7.01

54

Flat Washer M3, Stainless

234032600

$0.52

55

Filler Neck Nut, Fuel

211100012

$11.51

56

Protecteur Pad

204560027

Unavailable

57

RH Choke Cable | Includes 57 - 61.

270000207

Unavailable

LH CHOKE CABLE - Call your local BRP dealership

270000208

Unavailable

58

Hex. Nut

211100007

Unavailable

59

Choke Plate

291000457

Unavailable

60

Hex. Nut M6

232160600

$1.04

61

Stainless Flat Washer M6

234061600

$0.28

62

Rubber Pad

293830021

Unavailable

63

Loctite 271, 10 ml

293800005

$23.85

64

Rivet 1/8”

293150057

Unavailable

65

Norma Clamp

293650088

Unavailable

66

VENT FUEL SURGE PROTECTOR - Call your local BRP dealership

204560101

Unavailable

67

FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.

275500757

Unavailable

68

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

69

Tridon Gear Clamp

293650170

$2.00
