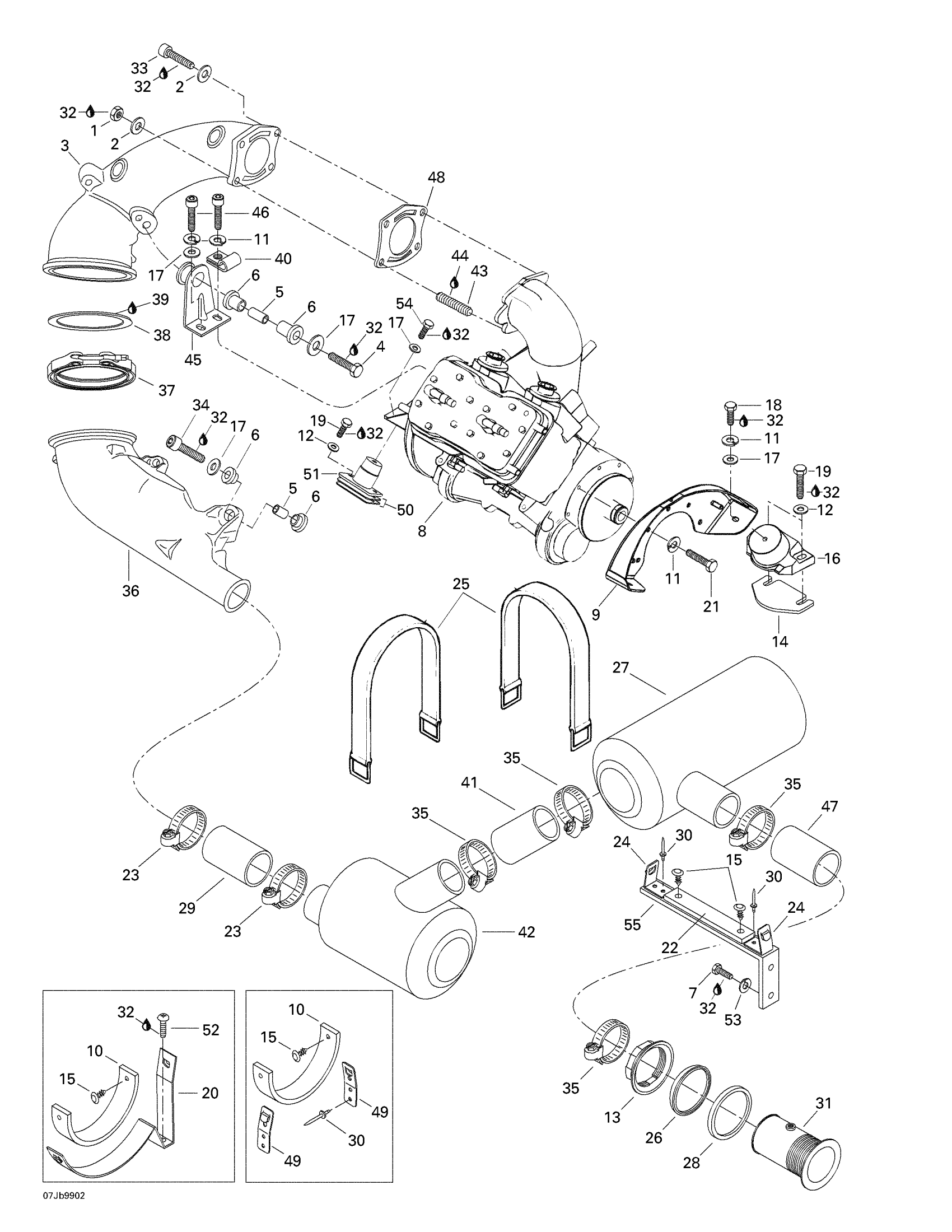

Sea-doo Challenger 1800, 5675/5679, 1999 Engine Support And Muffler Diagram

#

Description
Price

1

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

2

Flat Washer 10 mm, Stainless

234001600

Unavailable

3

Head Pipe Ass'y | Includes 6 - 8.

274000161

Unavailable

4

Hex. Screw M8 X 40

207084060

Unavailable

5

Bushing

274000254

Unavailable

6

RUBBER BUSHING - Call your local BRP dealership

293830036

Unavailable

7

SCREW M4.8 X 19 - Call your local BRP dealership

210641940

Unavailable

8

Rotax Engine 787

270000442

Unavailable

9

Engine Support

270000359

Unavailable

10

Rubber Pad

293830055

Unavailable

11

Lock Washer 8 mm, Stainless

234181601

Unavailable

12

Stainless, Flat Washer 8 mm

234081600

Unavailable

13

Nut 72 mm

274000224

Unavailable

14

Shim 0.3 mm - Call your local BRP dealership

204250048

Unavailable

SHIM 1.3 MM - Call your local BRP dealership This part replaces 204250049.

204250049

Unavailable

15

Black, Dart

293730006

Unavailable

16

Rubber Mount, Black

270000421

Unavailable

17

Flat Washer 8 mm, Stainless

234082600

Unavailable

18

Hex. Screw M8 X 16

207181660

Unavailable

19

Hex. Screw M8 X 40

207184060

Unavailable

20

Muffler Support

274000234

Unavailable

21

Hex. Screw M8 X 25, Scotch Grip

207382560

Unavailable

22

Rubber Pad

204060031

Unavailable

23

Norma Clamp

293650077

$6.11

24

Strap Clip 90°

204060017

Unavailable

25

Retainer Strap

293850097

Unavailable

26

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

27

Black, RH Muffler

274000671

Unavailable

Black, LH Muffler

274000672

Unavailable

28

GASKET - Call your local BRP dealership

293250041

Unavailable

29

Exhaust Hose

274000170

Unavailable

30

Pop Rivet 3/16"

293150008

Unavailable

31

EXHAUST OUTLET - Call your local BRP dealership

274000222

Unavailable

32

Loctite 243, 10 ml

293800060

$20.77

33

Socket Head Screw M10 x 35

205003560

Unavailable

34

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

35

TRIDON GEAR CLAMP - Call your local BRP dealership

293650061

Unavailable

36

Cone Pipe ass'y

274000210

Unavailable

37

Clamp-Exhaust

274000357

Unavailable

38

Brass Washer

274000169

Unavailable

39

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

40

Clip

293850018

Unavailable

41

Exhaust Hose

204340108

Unavailable

42

Resonator (Black)

274000670

Unavailable

43

Stud M10

211300017

Unavailable

44

Loctite 271, 10 ml

293800005

Unavailable

45

Pipe Support

274000598

Unavailable

46

SOCKET SCREW M8 X 20 - Call your local BRP dealership

205082060

Unavailable

47

LH Exhaust Hose

204340027

Unavailable

RH Exhaust Hose

204340028

Unavailable

48

Gasket

290931500

Unavailable

49

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

50

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

51

Rubber Mount, Black

270000422

Unavailable

52

Tapping Screw M6.3 X 32

209663260

Unavailable

53

Helical Lock Washer M5

234151601

Unavailable

54

Hex. Screw M8 X 18

207181860

Unavailable

55

Not Available As Spare Part - Friction Washer

Unavailable

56

Avdel Rivet 3/16"

293150037

$0.47
